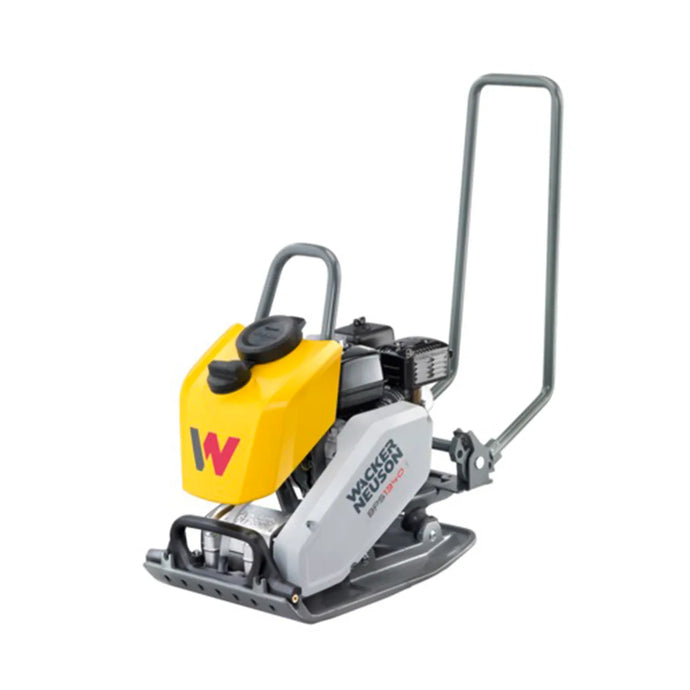

Wacker Neuson BPS1340AW Vibratory Plate Compactor

Wacker Neuson BPS1340AW Vibratory Plate Compactor

The Wacker BPS plate compactor series brings a simple and proven design to the job site in a lightweight and productive unit.

Features

• Single direction vibratory plate with water tank for soil and asphalt compaction
• 15.7 inch plate width
• Easy to maneuver and provides excellent compaction results
• Angular side edges of the base plate provides even, clean finish along curbs and obstructions
• The responsive guide handle results in easy and comfortable control of the machine
• Low hand-arm vibration of less than 5 m/s², which enables long, comfortable working conditions
• A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable
• Large water tank and efficient sprinkling system
• The BPS series is equipped with an extremely sturdy fan belt and has bearings with lifetime lubrication. As a result, it is practically maintenance-free
• Wheel set and paving pad offer additional applications (sold separately)

Wacker BPS1340AW Plate Compactor Specifications
Base Plate Width	15.7 in
Operating weight	165.3 lbs | 75 kg
Operating Height	26.1 in
Water tank capacity	11 US qt
Compacted area	6.716,7 ft2/h
Engine speed	up to 95 ft/min
Max. centrifugal force	2,923 lbs
Engine Type	Honda GX160 Air-cooled, 4 cycle single cylinder
Displacement	9.9 in3
Fuel tank capacity	3.9 US qt
Run Time	4.75 hr
