Makinex 240 & 480 Volt Generators | 16kW 480V
$10,25715 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Makinex
| SKU: 1212-16kW 480V
| MPN:
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here
Makinex 240 & 480 Volt Generators
The Makinex Generator Range is a robust, powerful and reliable solution for providing power to equipment and tools, floor grinding, welders and brick saws., air compressors and a wide range of applications. They are suitable for use in rental yards, construction sites, and rural areas, and offer a compact lightweight option when moving the Generators around on building sites as well as on and off vehicles.
16kW 480V Features
- Highly portable, 3-phase 16kVA 480V generator
- 3-phase and single phase outlets on same machine
- Runs light and heavy duty equipment all together
- Comes with 3 year warranty

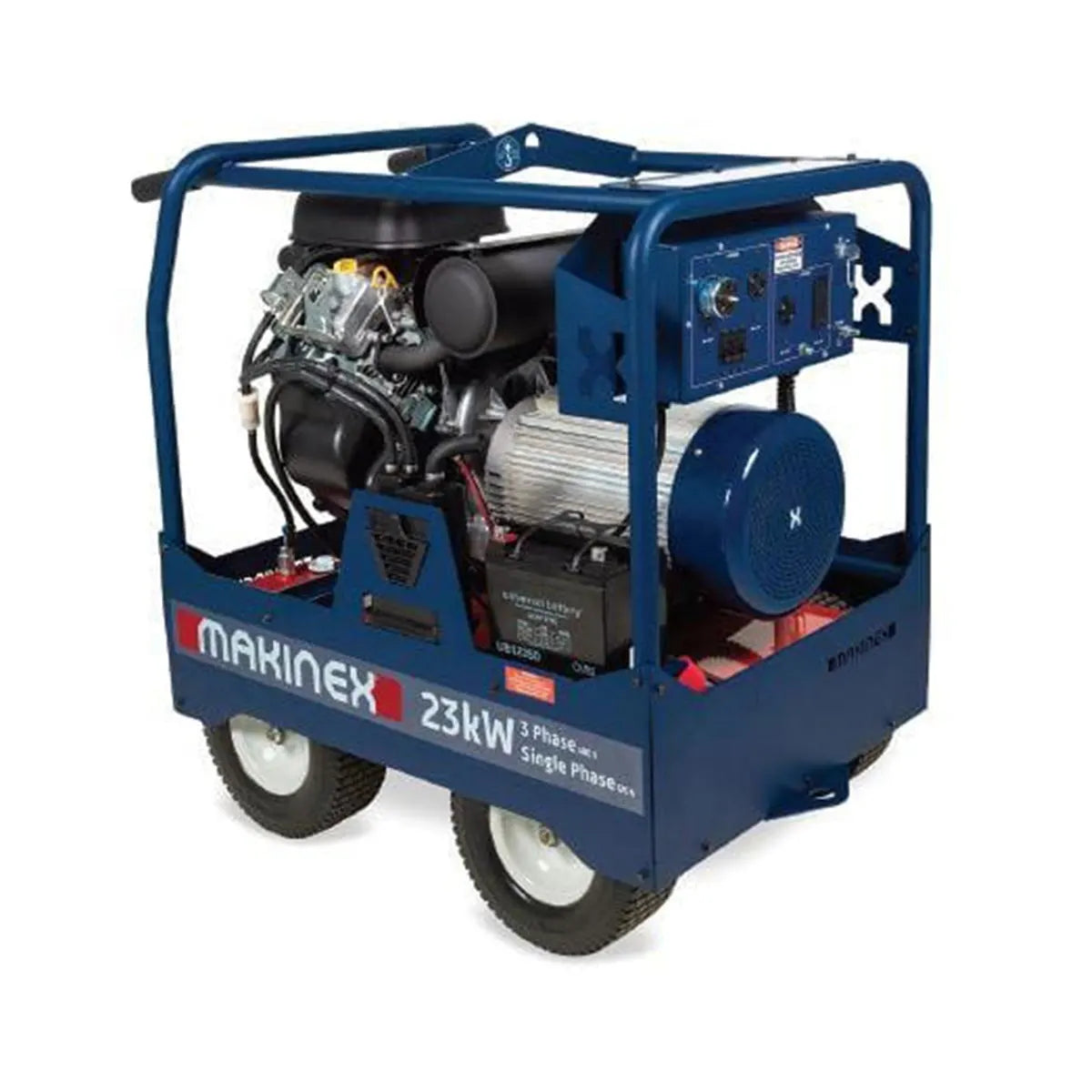

23kW 240V Features
- Light and small enough to carry on your truck
- Independent single and 3-phase power generation
- Powers 240V and 120V equipment at the same time
- Simultaneous single and three phase operation
- Highly portable, thanks to four large wheels
23kW 480V Features
- Light and small enough to carry on your truck
- Independent single and 3-phase power generation
- Powers 240V and 480V equipment at the same time
- Simultaneous single and three phase operation
- Highly portable, thanks to four large wheels
- Comes with 3 year warranty

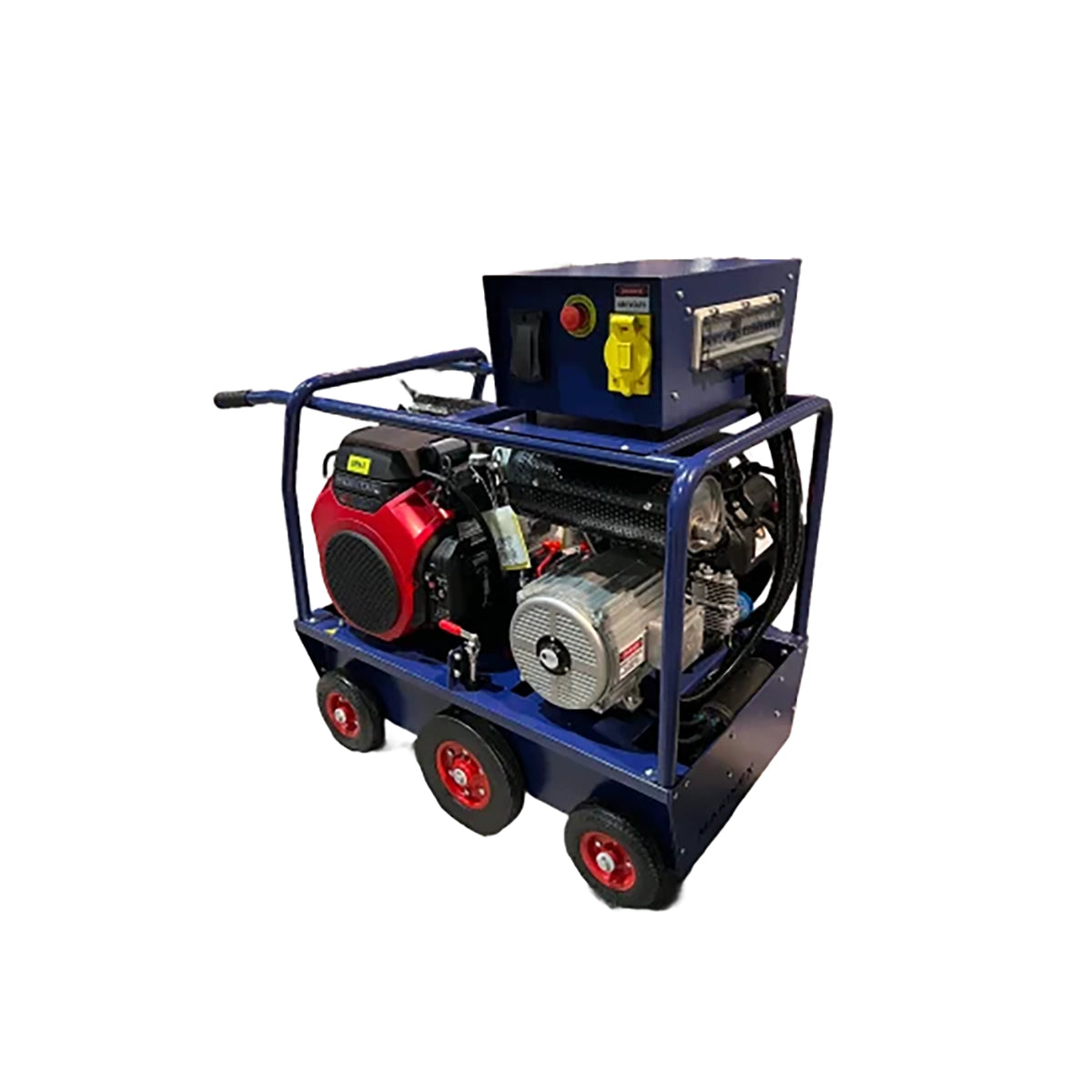

32kW 480V Features
- Dual-Phase Power with single and 3-phase power generation
- Powers 480V equipment
- World's smallest 32kW Powerhouse
- Highly portable, thanks to six large wheels
| Model | 16kW 240V | 16kW 480V | 23kW 240V | 23kW 480V | 32kW 480V |
| Rated Output | 15000W | 2500W (120V) / 12500W (480V) | 20kW Continuous | 23000W | 23kW Continuous |
| Max Output | 16000W | 16kW | 23kW | 24.1kW | 24.25kW |
| Frequency | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
| Voltage | 120V/240V + 240V 3-Phase | 120V/480V + 480V 3-Phase | 120V Single-Phase, 240V Three-Phase | 120V/240V + 480V 3-Phase | 110V Single-Phase, 480V Three-Phase |
| Sockets | 50A 3-Phase / 50A Single-Phase / 30A x 2 / 20A | 120V GFCI Receptacle / 480V 3-Phase Receptacle (30A) | 50A 3-Phase / 50A Single-Phase / 30A x 2 / 20A | 50A 480V 3-Phase / 30A 480V 3-Phase / 120V GFCI | - |
| Weight | 342 lb (155kg) | 342 lb (155kg) | 573 lb | 573 lb | 772 lb |
| Noise Level | No Load: 72dB / 50% Load: 76dB / 100% Load: 78dB | No Load: 72dB / 50% Load: 76dB / 100% Load: 78dB | No Load: 72dB | No Load: 72dB / 50% Load: 76dB / 100% Load: 78dB | 72–76dB |
| Engine Model | Honda GX690 | Honda GX690 | Vanguard 61G277 | Vanguard 40.0 HP EFI | Honda GX690 × 2 |
| Starting System | Electric Key Start | Electric Key Start | Electric Key Start | Electric Key Start | Electric Key Start |
| Fuel Economy | 0.92 gal @ 50% Load | 0.92 gal @ 50% Load | 1.5 gal @ 50% Load | 1.5 gal @ 50% Load | 2.6 gal @ 50% Load |
| Dimensions | 30.4 in (L) × 20.8 in (W) × 35.5 in (H) | 30.4 in (L) × 20.8 in (W) × 35.5 in (H) | 43 in (L) × 25 in (W) × 40 in (H) | 43 in (L) × 25 in (W) × 40 in (H) | 43 in (L) × 24.8 in (W) × 40.3 in (H) |
