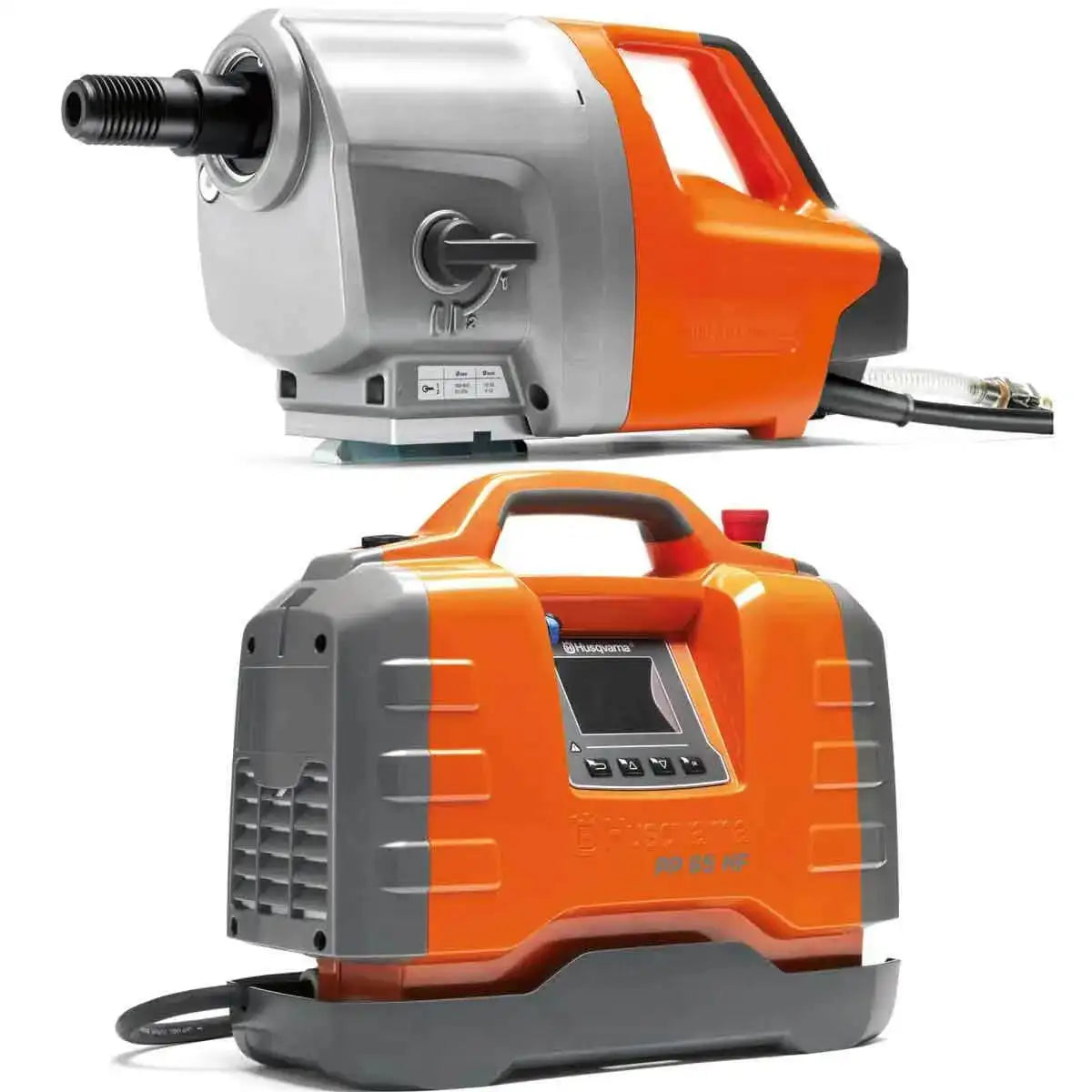

Husqvarna DM650 Motor Drill with PP65 Power Pack

967227903 Husqvarna DM650 Motor Drill with PP65 Power Pack

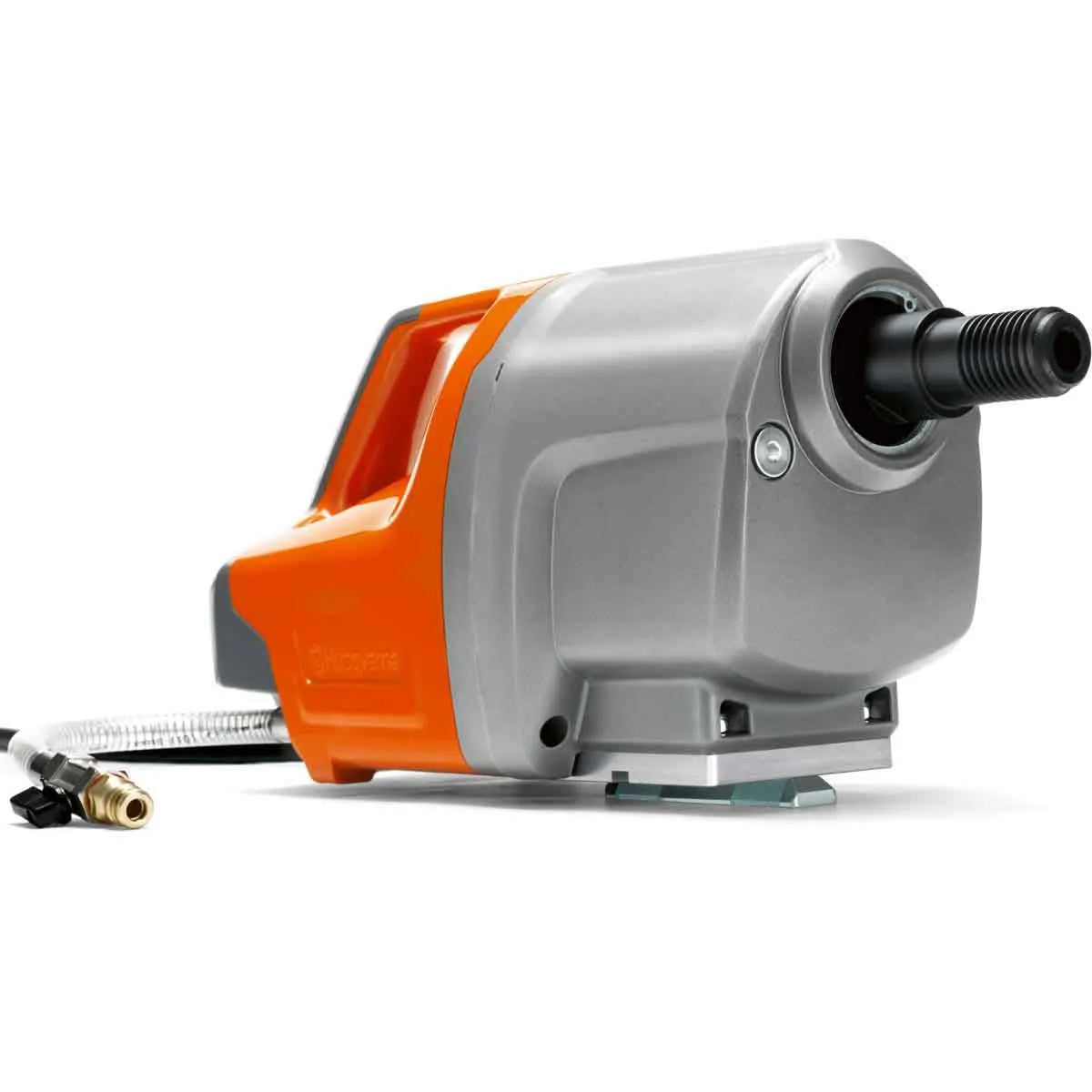

Husqvarna DM 650 is an extremely powerful electric drill motor with a new generation high frequency technology. The high power output, low weight, user-friendly setup and intelligent design makes Husqvarna DM 650 suitable for most drilling applications.

Features

• 18-step (2 mechanical, 9 electrical) adjustable rpm range ensures optimal speed for all drill bit dimensions
• Power: 3 phase 8 hp/4 kW, 1 phase 6 hp/3 kW
• Motor: 3 phase/1 phase electric
• Rated voltage: 3 phase 380V, 1 phase 230V
• Spindle speed no load: 125-250 Rpm (3 phase), 270-530 Rpm (1 phase

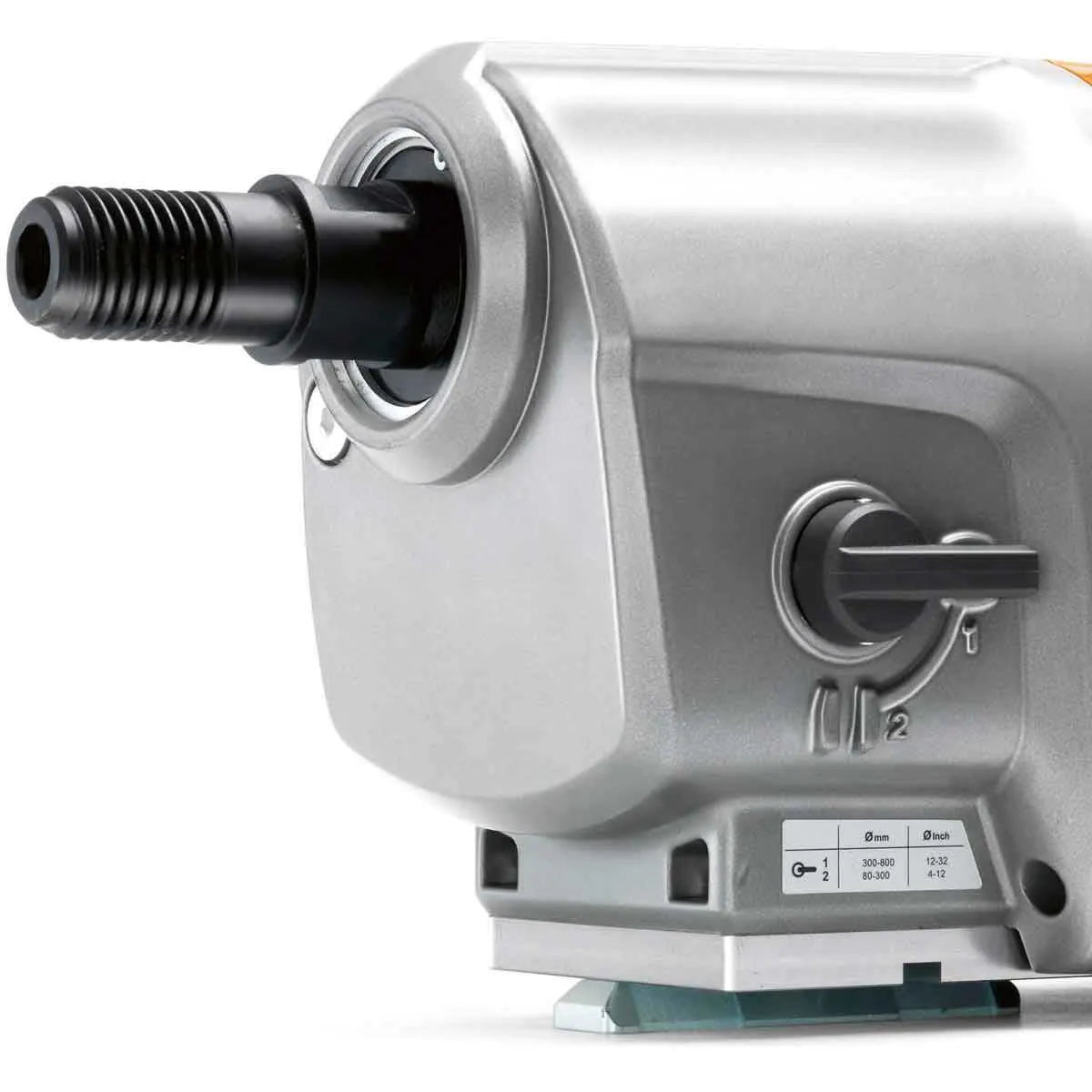

• 1-1/4" - 7 spindle thread
• Max recommended bit diameter from 24" (600mm)
• Minimum drill diameter 4"
• Weight 30.8 lbs (13.8 kg)

Applications

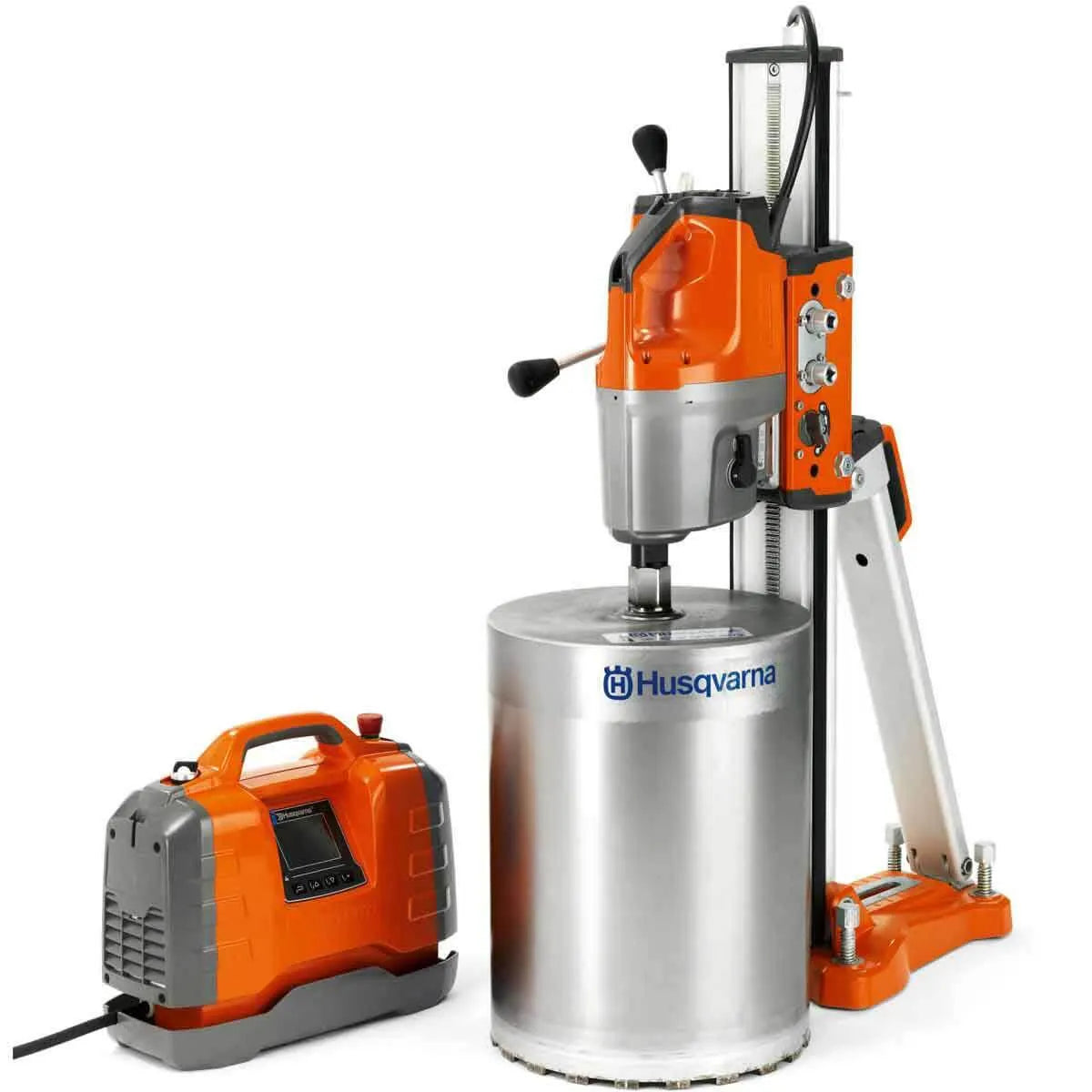

• Able to drill holes up to 24" in diameter with DS 800, DS 450 stands
• For heavy duty applications like water drains, ventilation (HVAC), plumbing channels, waste drain pipes, gas supply pipes, manholes and barriers
• Angle drilling and positioning in all directions

Benefits

• Water cooled, three speed gearbox for optimal drilling performance and increase life
• LED indicator shows the load of the machine, allowing you to always drill at maximum pressure
• Speed is reduced to increase torque through rebar and hard aggregates for increased productivity
• Elgard system uses pulsation to warn you of an approaching overload. This increases productivity and extends product life
• Dust and water proof, water-cooled motor with minimal service requirements
• Integrated handle for easier transport and faster set-up
• The controls are designed and positioned to further enhance ergonomics and are easy to maneuver

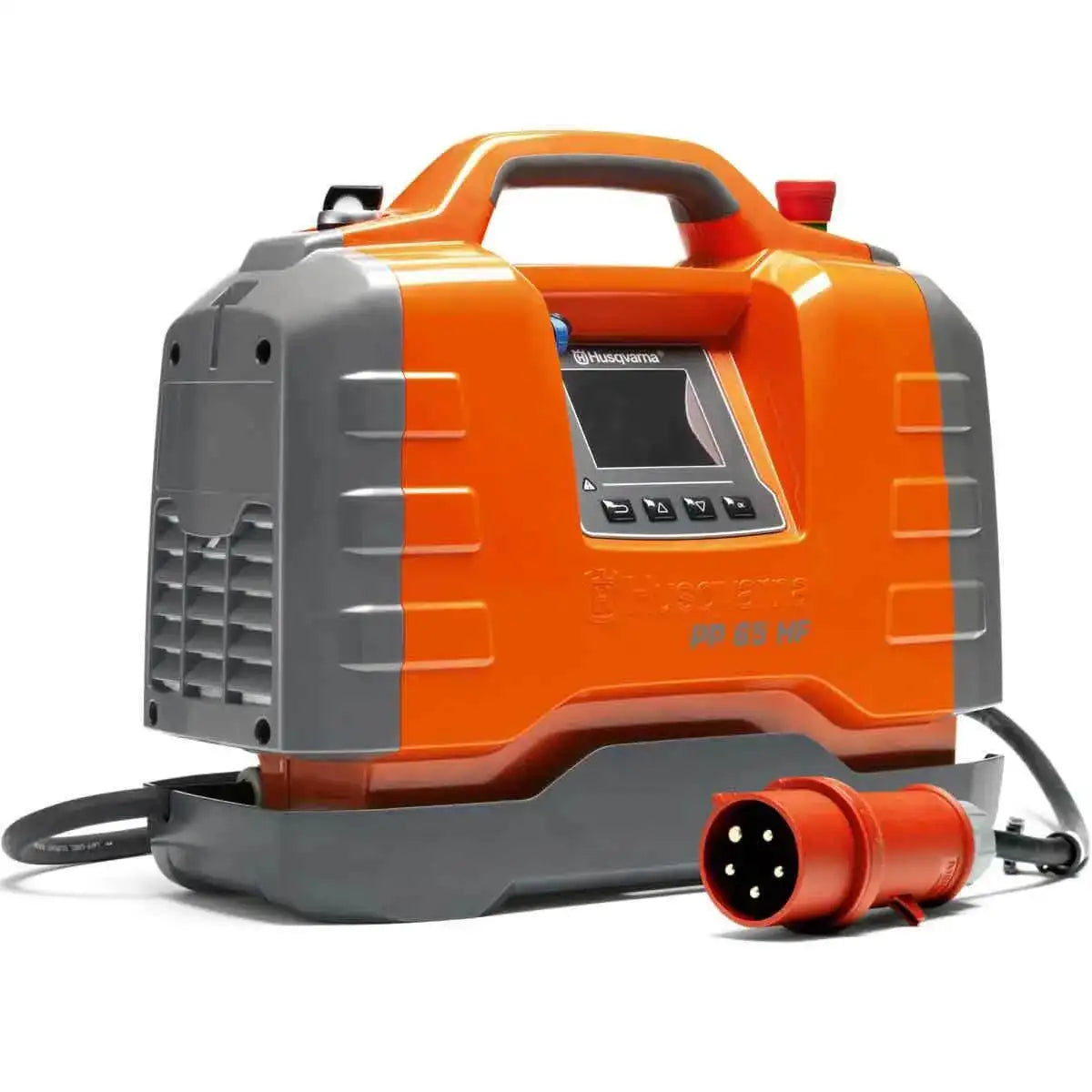

PP 65 Power Pack

• Versatile, air-cooled electric power unit for the high frequency-powered Husqvarna K 6500 hand held power cutter and DM 650 drill motor. Low weight, compact design and user-friendly display interface makes Husqvarna PP 65 very easy to use and transport
• Air cooled no water needed in power pack
• Flexible power setup, operates with both 3- and 1-phase power

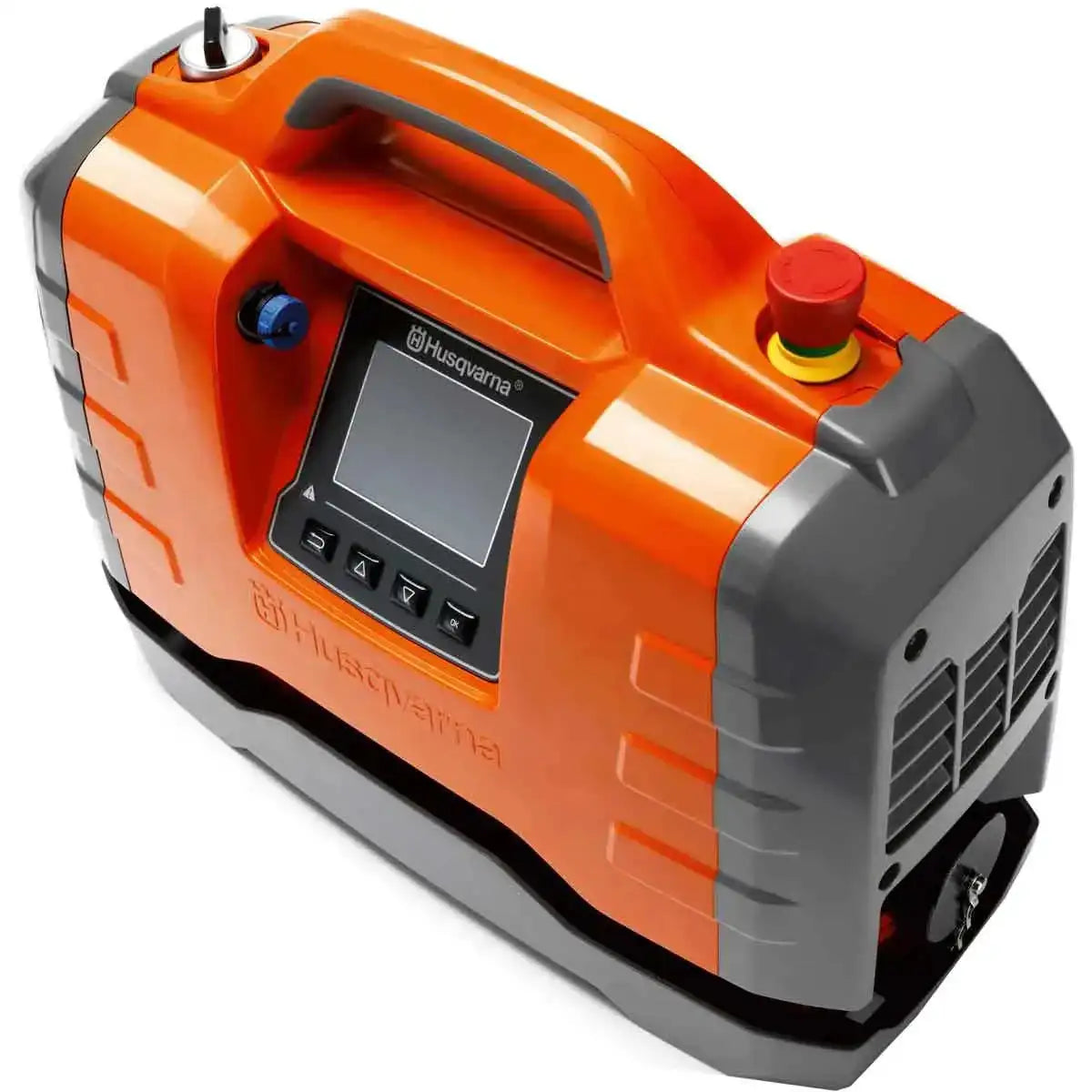

• User-friendly interface digital display and menus for efficient control and service of the unit
• PP unit separated from the cutting equipment, less exposure to dirt and vibrations
• Use where water usage should be kept at a minimum
• Power output 8.7 hp
• Voltage/Frequency (3 phase) 180 - 530 V / 50 - 60 Hz
• Voltage/Frequency (1 phase) 220 - 240 V / 50 - 60 Hz
• Rated current (3 phase) 10 Amp
• Rated current (1 phase) 16 Amp
