National Flooring Equipment 16" Planetary Floor Grinder

$7,34800 USD
Shipping calculated at checkout.
Brand: National Flooring Equipment | SKU: HELIX | MPN:

Shipping & Delivery

  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

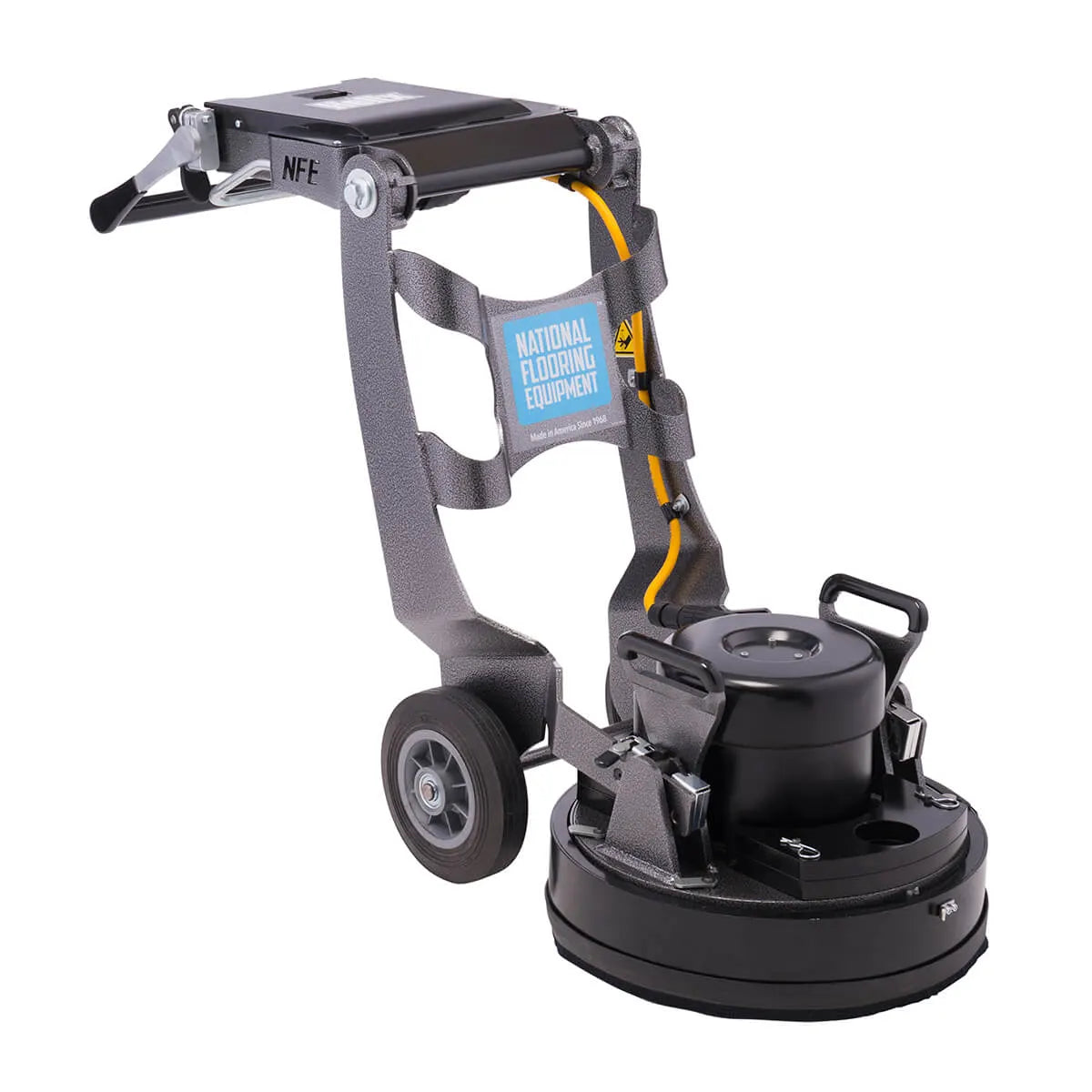

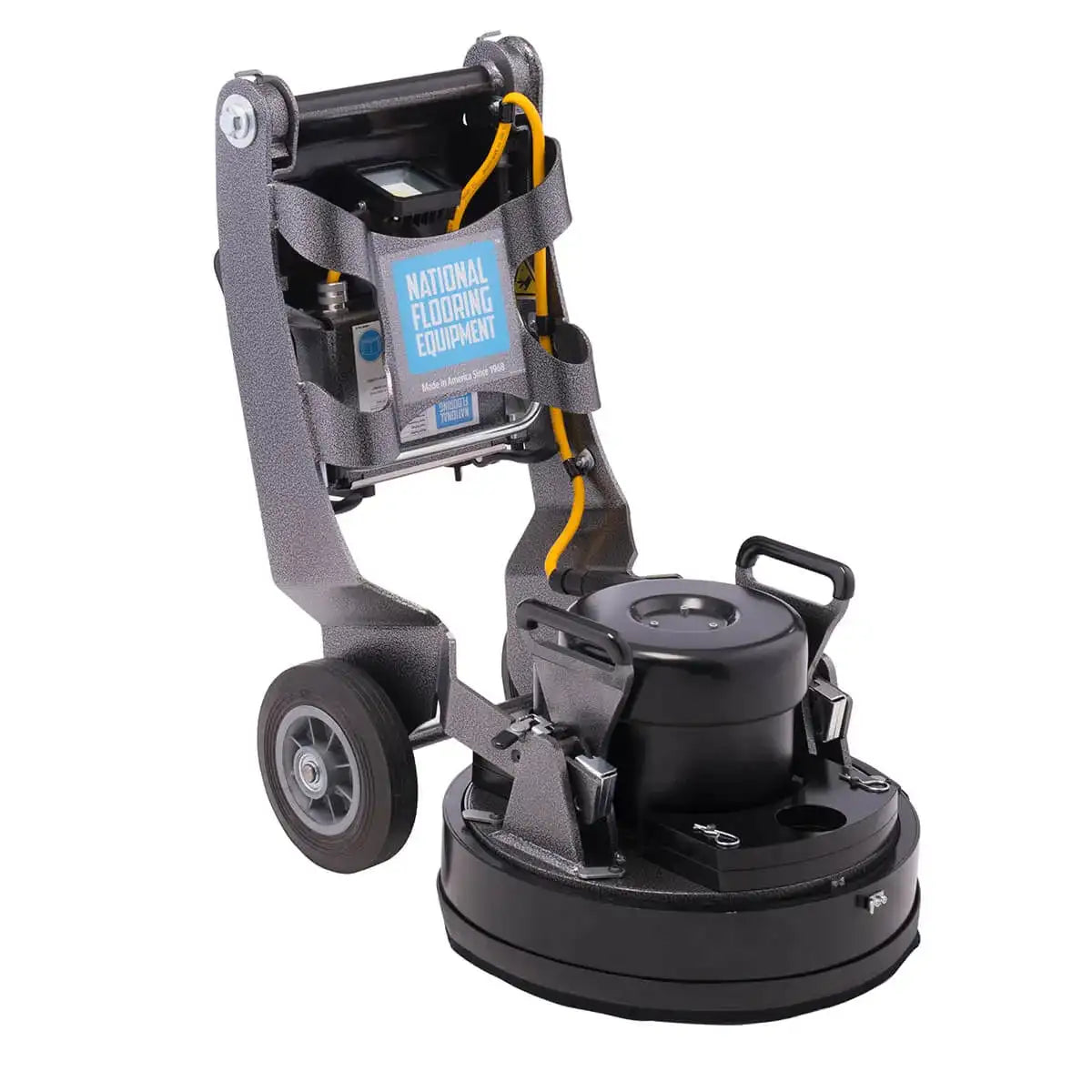

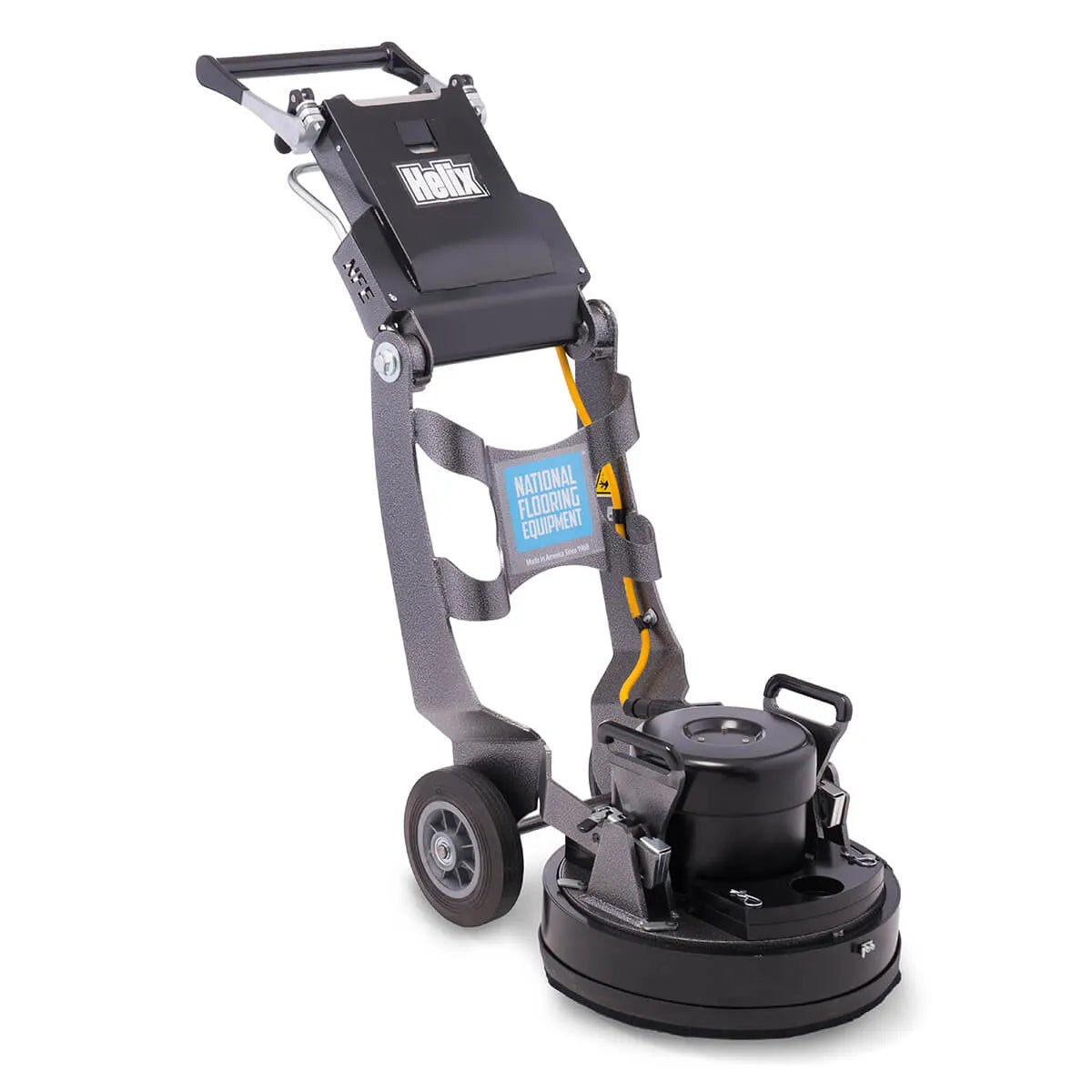

National HELIX 16" Planetary Floor Grinder

HELIX 16" floor grinder is designed for smaller concrete grinder jobs with hard-to-reach areas. The planetary grinder head will create the perfect profile for new concrete coatings. This user-friendly floor machine features an adjustable handle and a floating dust skirt for increased efficiency when grinding.


Features

  • Able to do edge grinding within 1/2" of the wall on either left or right side of the machine by a simple adjustment of the dust skirt
  • Grinding head contours to the floor with a floating tooling assembly

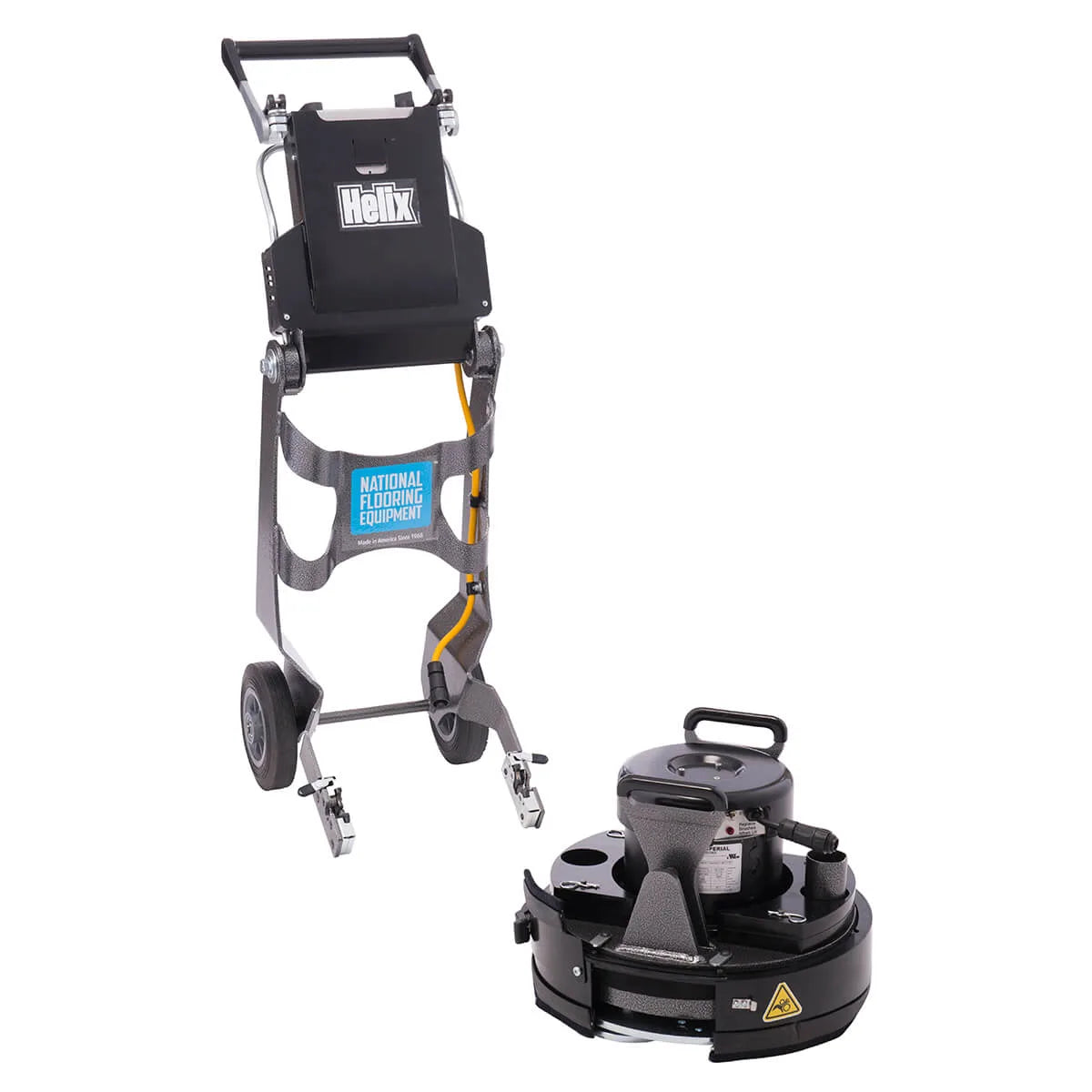

  • Floating tooling assembly can rotate 180° for easy tool changes
  • Removable weights can increase grinding pressure
  • Dual-speed motor can operate either high- or low-speed depending on the application
  • Handle is fully adjustable for comfortable use
  • Equipped with an LED light to illuminate the surface directly behind the grinding head
  • Quick-release levers allow the handles to be removed for easy transport and storage
  • One year manufacturer's warranty on parts and labor

What's Included?
  • National HELIX Planetary Floor Grinder
  • 3x Magnetic Tooling Holders (404021)
  • 3x Velcro Adapters (9245)
  • Floating Dust Skirt (403231)
  • Helix Grind and Scrape Plate (402757)
  • Operator's Manual

National HELIX Planetary Floor Grinder Specifications
Motor Single Phase - 120 V Electric
Power 1.5 hp
Disc Size 16"
Drum RPM High Speed: 291/163 RPM (for 60 Hz)
Low Speed:243/136 RPM (for 50 Hz)
Motor RPM High Speed: 2300/1800 RPM (for 60 Hz)
Low Speed:2667/1500 RPM (for 50 Hz)
Grinding Pressure 128 lb.
Amps 12 amps
Dimensions 47" x 17.5" x 47.6" (with handle)
Weight 206 lb.
