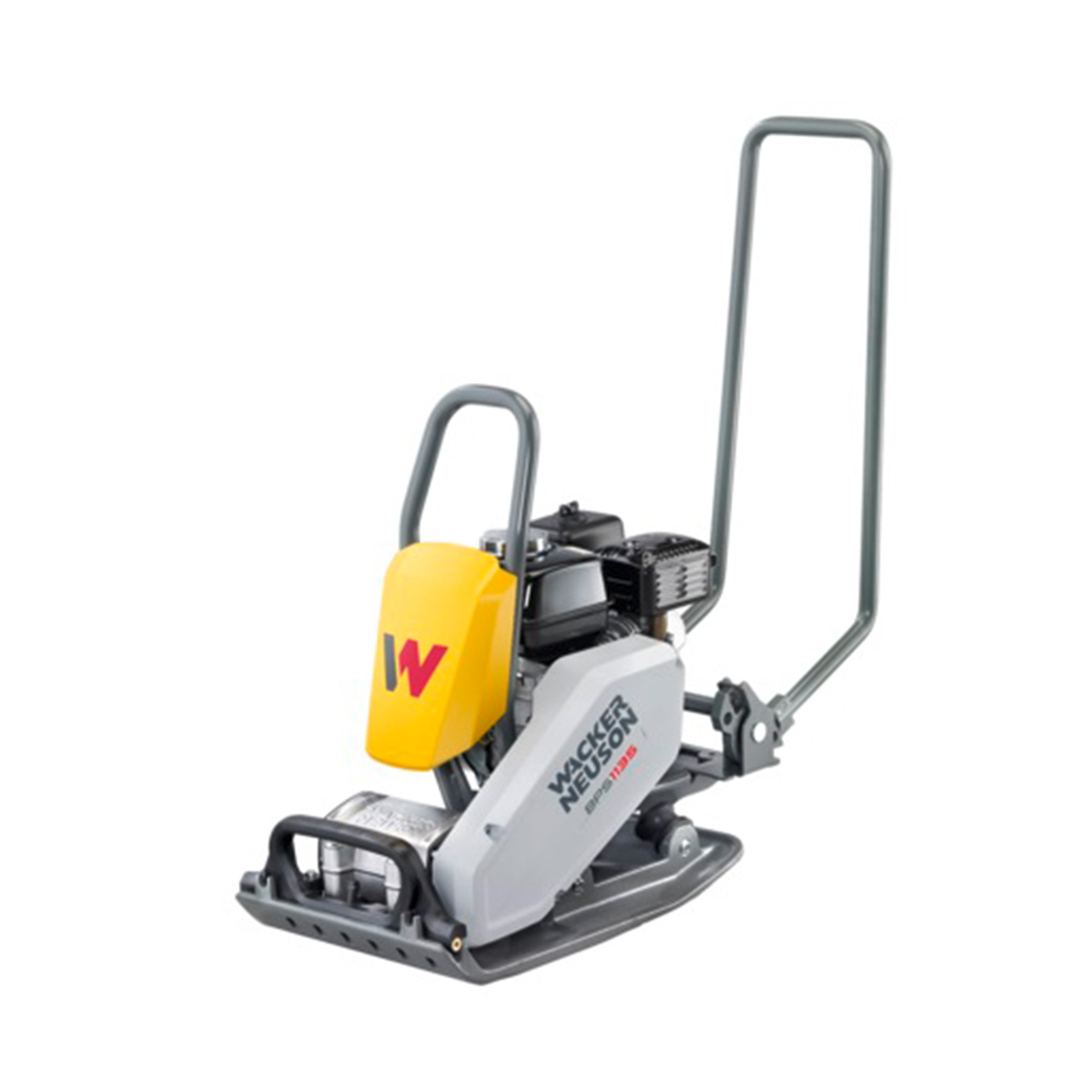

Wacker Neuson BPS1135AW Single Direction Vibratory Asphalt Plate Compactor

(0) No Reviews yet
Wacker Neuson

This item requires a commercial addressFree shipping
Ships From UT Warehouse More Info

Product Details

Product Details

Wacker Neuson BPS1135AW 20" x 14" Single Direction Vibratory Asphalt Plate

Wacker Neuson BPS1135AW premium vibratory asphalt plates feature a tough, wear resistant, ductile iron base plate offering high strength and shock resistance. The base plate features a tapered bottom and edges for high speed and excellent maneuverability. This is the perfect plate compactor for granular and mixed materials with some cohesive content in confined areas such as parking lots, highway and bridge construction, next to structures, curbs, and abutments.


  • Single direction plate compactor gas powered
  • Large water tank and efficient sprinkling system included
  • The BPS series is equipped with an extremely sturdy fan belt and has bearings with lifetime lubrication.
  • Special contoured running surfaces and rounded edges provide maximum performance and maneuverability
  • Completely enclosed belt protected by a lightweight belt-guard for reduced wear and minimal service
  • Newly designed “low-vibration” guide handle greatly improves operator comfort
  • Heavy-duty shock mounts on engine console dampen vibrations
  • Premium asphalt plates feature a durable base plate for various applications
  • Exciter bearing design requires minimal maintenance for improved productivity
  • Ergonomically designed lifting handles offer easier loading and unloading for operator during transport
  • Improved water tank design with larger capacity and filler hole provide higher productivity
  • Completely enclosed belt protected by a lightweight belt guard for reduced wear and minimal service

Technical Data

Wacker BPS1135AW Plate Compactor Specifications
Length x width x height36.6 x 13.8 x 26.1 in
Ground Clearance26.1 in
Size of base plate (L x W)20.1 x 14 in
Operating weight138.9 lbs | 63 kg
Vibration Rate5.880 1/min
Forward speed1.4 fps
Gradeability36.4 %
Vibrations (Hz)98 Hz
Max. centrifugal force2.473 lbf
Engine TypeHonda Gas 3.5hp four stroke
Air CleanerDry air filter
Fuel tank capacity0.7 US gal
Operating temperature range5 - 113 °F
Sound level LpA93,0 dB(A)
