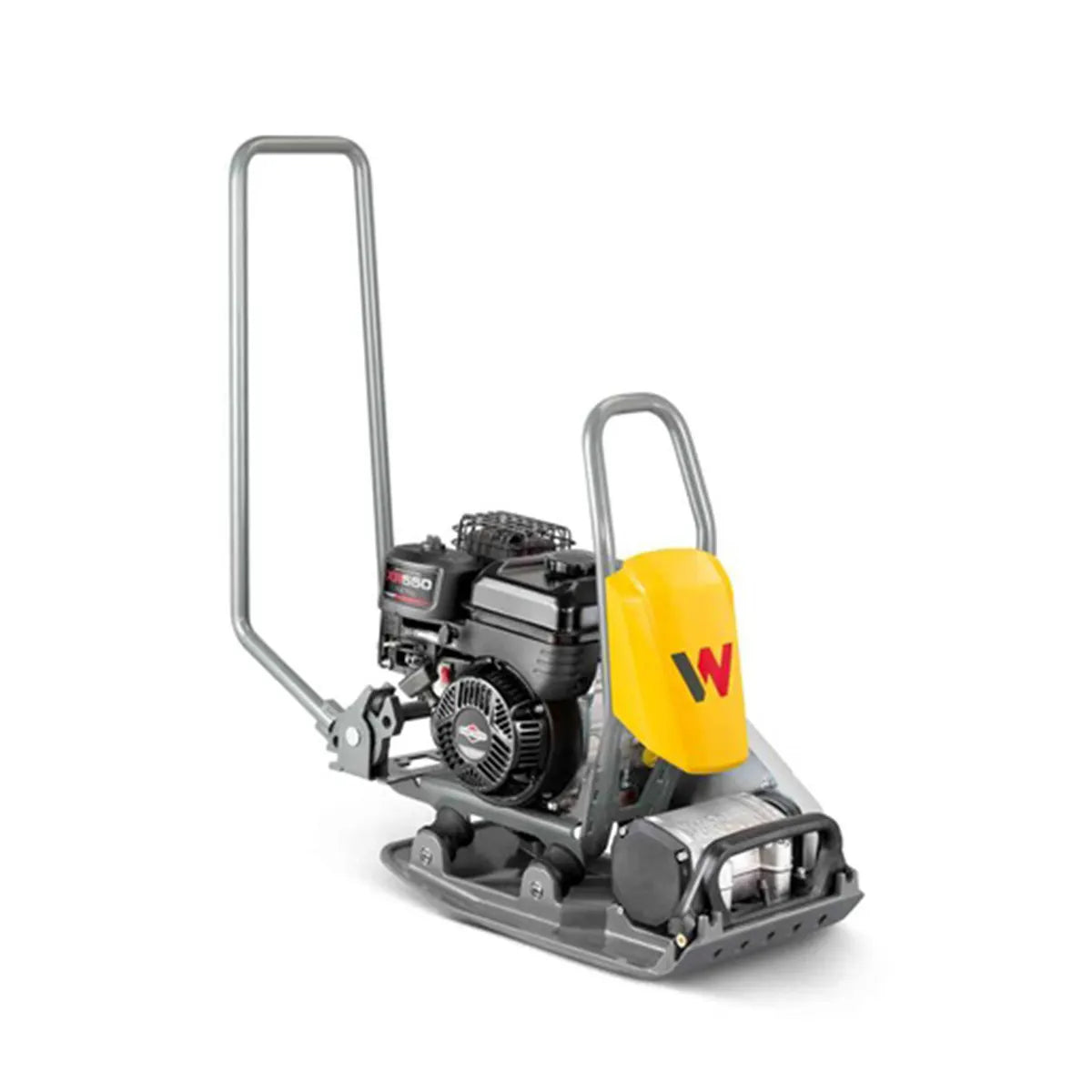

Wacker Neuson BPS1550B Vibratory Plate Compactor

Wacker Neuson BPS1550B Vibratory Plate Compactor

The Wacker BPS plate compactor series brings a simple and proven design to the job site in a lightweight and productive unit. A single-direction vibratory plate with a water tank for soil and asphalt compaction.

Features

• Single direction vibratory plate compactor for soil and asphalt compaction
• Easy to maneuver and provides excellent compaction
• Angular side edges of the base plate provides even, clean finish along curbs and obstructions
• The responsive guide handle results in easy and comfortable control of the machine
• Low hand-arm vibration of less than 5 m/s², which enables long, comfortable working conditions
• A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable
• Large water tank and efficient sprinkling system
• The BPS series is equipped with an extremely sturdy fan belt and has bearings with lifetime lubrication. As a result, it is practically maintenance-free
• Water tank sold separately
• Wheel set and paving pad offer additional applications (sold separately)

Wacker BPS1550B Plate Compactor Specifications
Base Plate Width	19.685 in (50cm)
Operating weight	197.3 lbs | 89.5 kg
Operating Height	26.1 in
Water tank capacity	11 US qt
Compacted area	6.716,7 ft2/h
Power rating max.	5.5 hp
Max. centrifugal force	3.372 lbf
Engine Type	Briggs & Stratton Air-cooled, four-stroke
Inclined position max.	15.0 °
Vibrations	5.880 1/min @ 98 Hz
Area Capacity	8.073 ft2/h
Sound power LWA, guaranteed	108.0 dB(A)
Sound level LpA	95.0 dB(A)
Sound power LWA, measured	107.0 dB(A)
