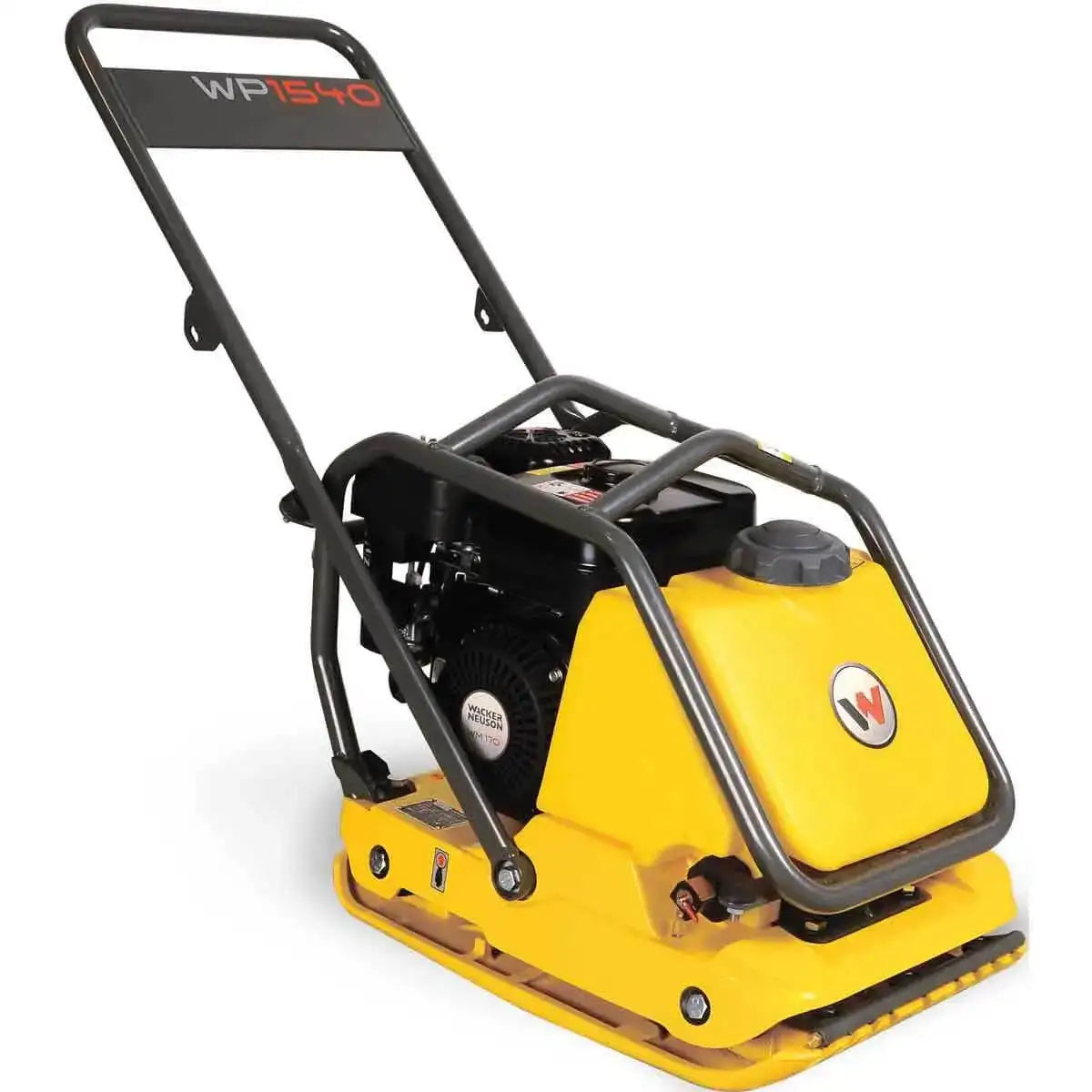

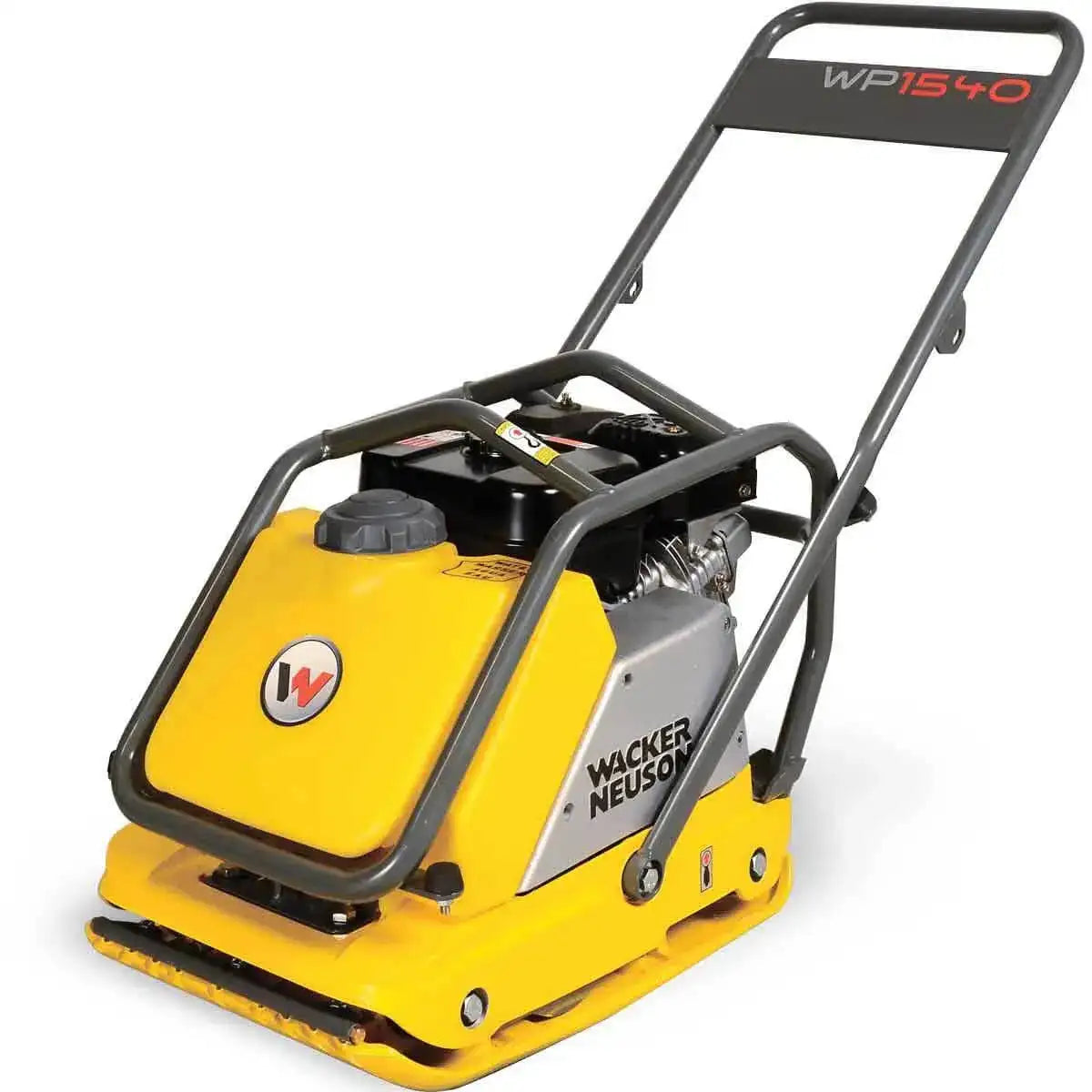

Wacker Neuson WP1540A Vibratory Plate Compactor

Wacker Neuson WP 1540A 23" x 15.5" Plate Compactor

Features

• Water tank and wheel kit sold separately
• Premium plates features a tough, wear resistant, ductile iron base plate offering high strength and shock resistance
• Patented computer designed base plate has a tapered bottom and edges for high speed and excellent maneuverability
• Designed for the compaction of granular and mixed materials with some cohesive content in confined areas such as parking lots, highway and bridge construction next to structures, curbs and abutments
• Lightweight, high strength aluminum components including the engine console and belt guard have been combined for reduced weight and easy machine handling
• Straight, center-mounted guide handle offers superior maneuverability and can be lowered within inches of the surface to operate plate under obstacles and form work
• High inertia clutch with adjustable shims ensures smoother operation, longer belt life, and simplified belt adjustment
• Many lifting points and front lift cage offer easier loading and unloading for operator convenience

Technical Features

Wacker WP1540 Plate Compactor Specifications
Length x width x height (handle in working position)	34.5 x 15.5 x 38 in
Lowest working height	20 in
Size of base plate (L x W)	23 x 15.5 in
Operating weight	190 lbs | 86 kg
Compacted area	6,590 ft2/h
Forward speed	up to 100 ft/min
Gradeability	up tp 30%
Vibration frequency	100 Hz
Max. centrifugal force	3,375 lbs
Engine Type	Wacker Gas Air-cooled, 4 cycle, single cylinder
Displacement	10.3 in3
Max. power output	6 hp
Operating speed	3,900 rpm
Fuel tank capacity	3.8 US qt
Run Time	2.3 hr
