Raimondi Vite Leveling System 1/16" Straps | Bag of 100 Straps

Raimondi Vite Leveling System 1/16" (1.5 mm) Straps

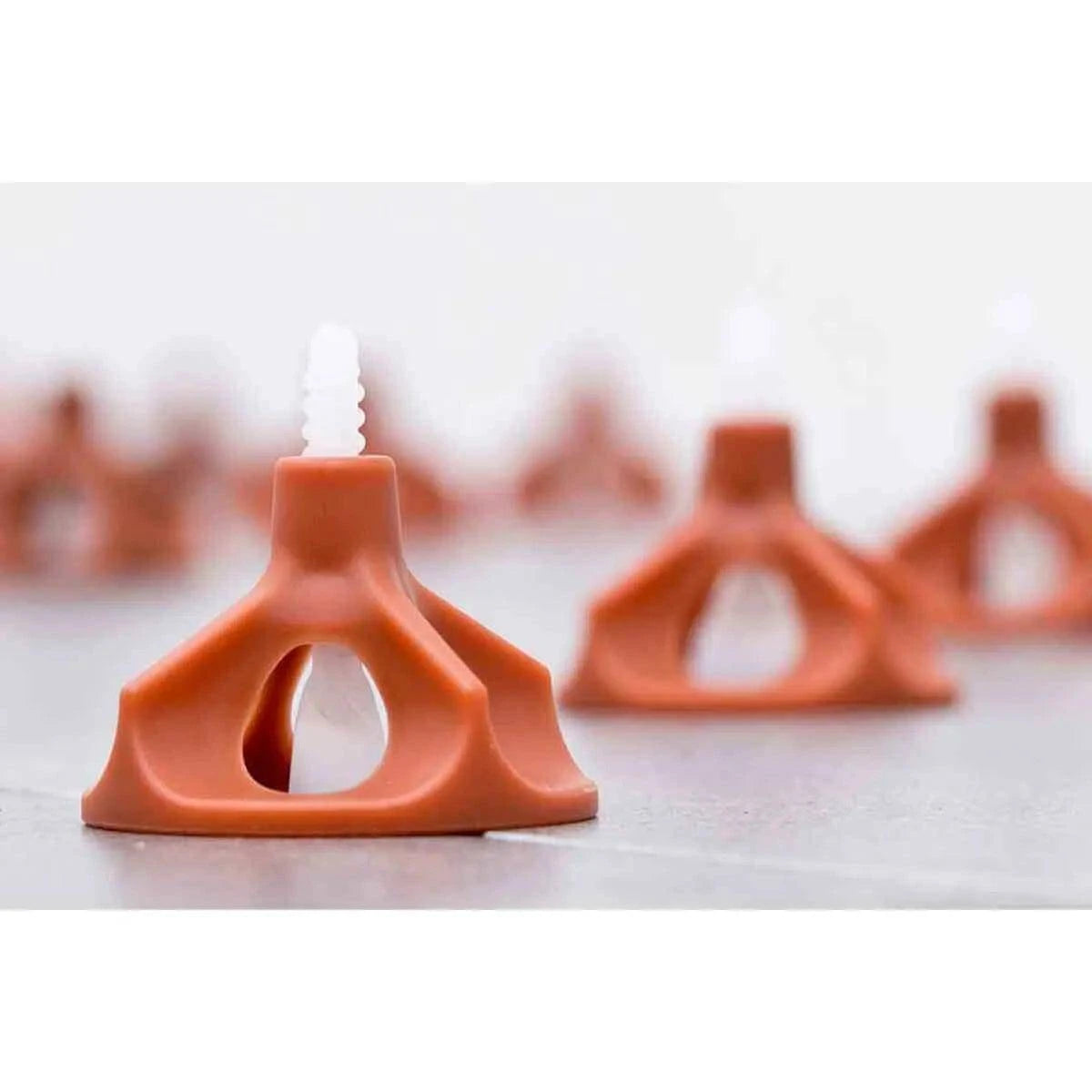

Raimondi Vite Leveling System 1/16" Straps makes lippage removal as easy as place, set and spin. The caps tighten so they level themselves between spaces, removing lippage.

Features

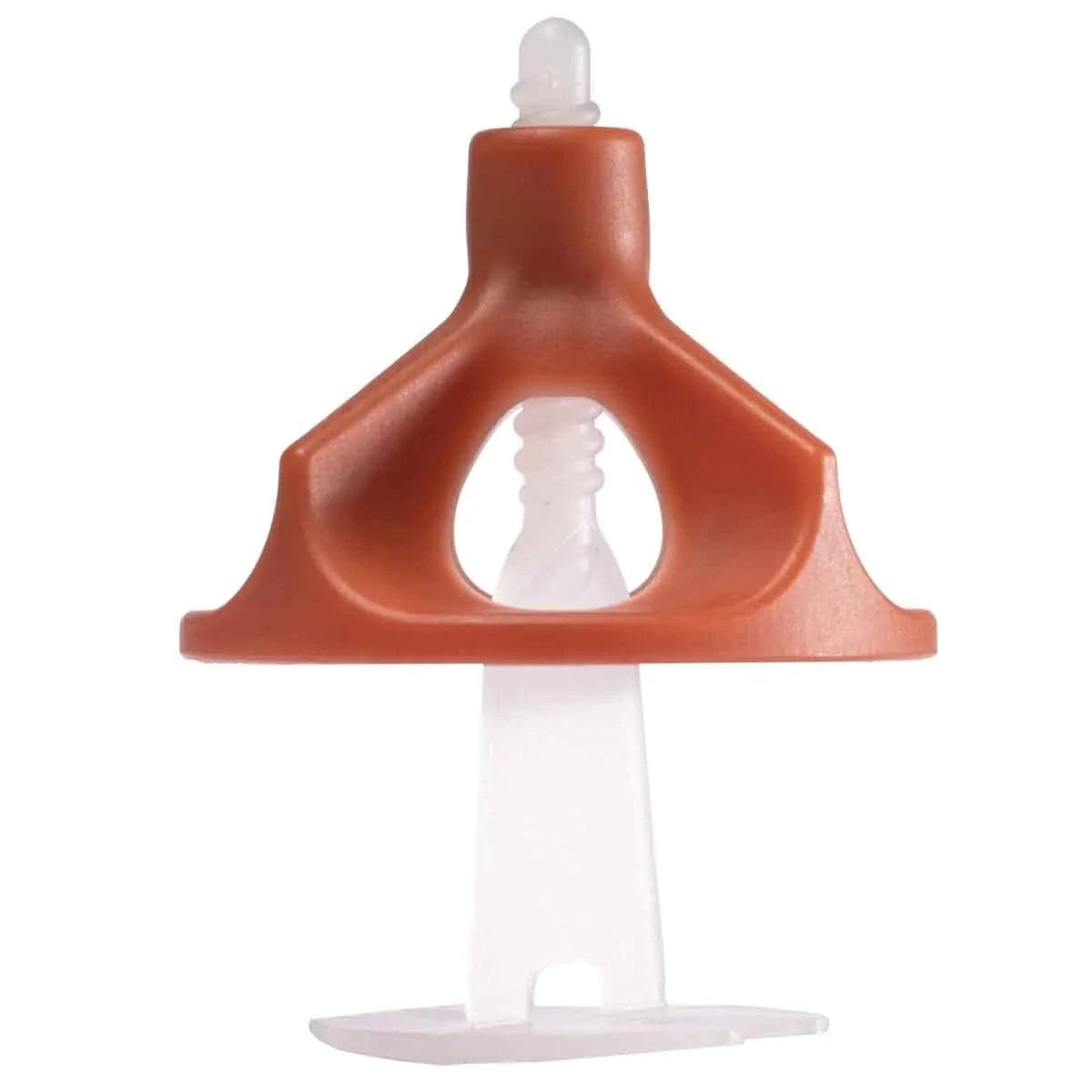

• Clips are placed between tile in the adhesive and caps are placed on-top of the threads to be tightened
• Caps spin and tightens with just two fingers
• Grip points are established on caps, spin until it reaches the tile
• Tighten caps so it levels itself between spaces which removes lippage
• Once adhesive is set simply remove caps by hitting with a rubber mallet or use the Clip Dozer
• Caps are specially designed with hollow spaces to see grout joints
• Suitable for both tile sides and intersections
• The VITE does not require any tools
• For tile thickness from 3 to 15 mm (1/8" - 19/32")

VITE Technical Data

• Minimum tile thickness: 1/8"
• Maximum tile thickness: 19/32"
• Minimum Grout joint: 1/16"

How to Use Raimondi Vite Tile Leveling System

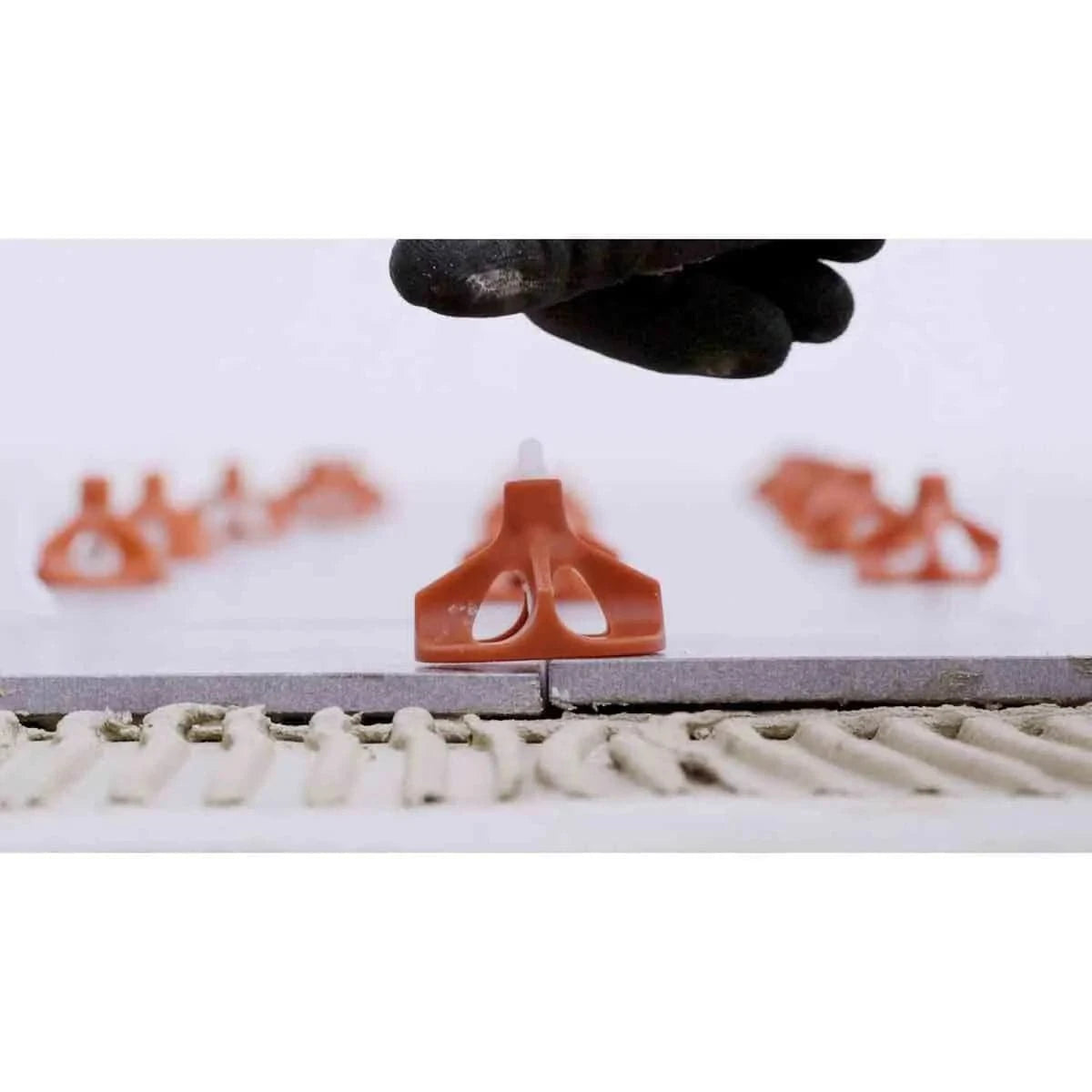

• STEP 1: After spreading your tile adhesive, insert leveling clip underneath the tiles along the 4 sides - use traditional spacers as you normally would to square up the corners. For larger tiles, it may be necessary to "double up", using 2 leveling spacers for each side
• STEP 2: Set the tile and beat it with a rubber mallet

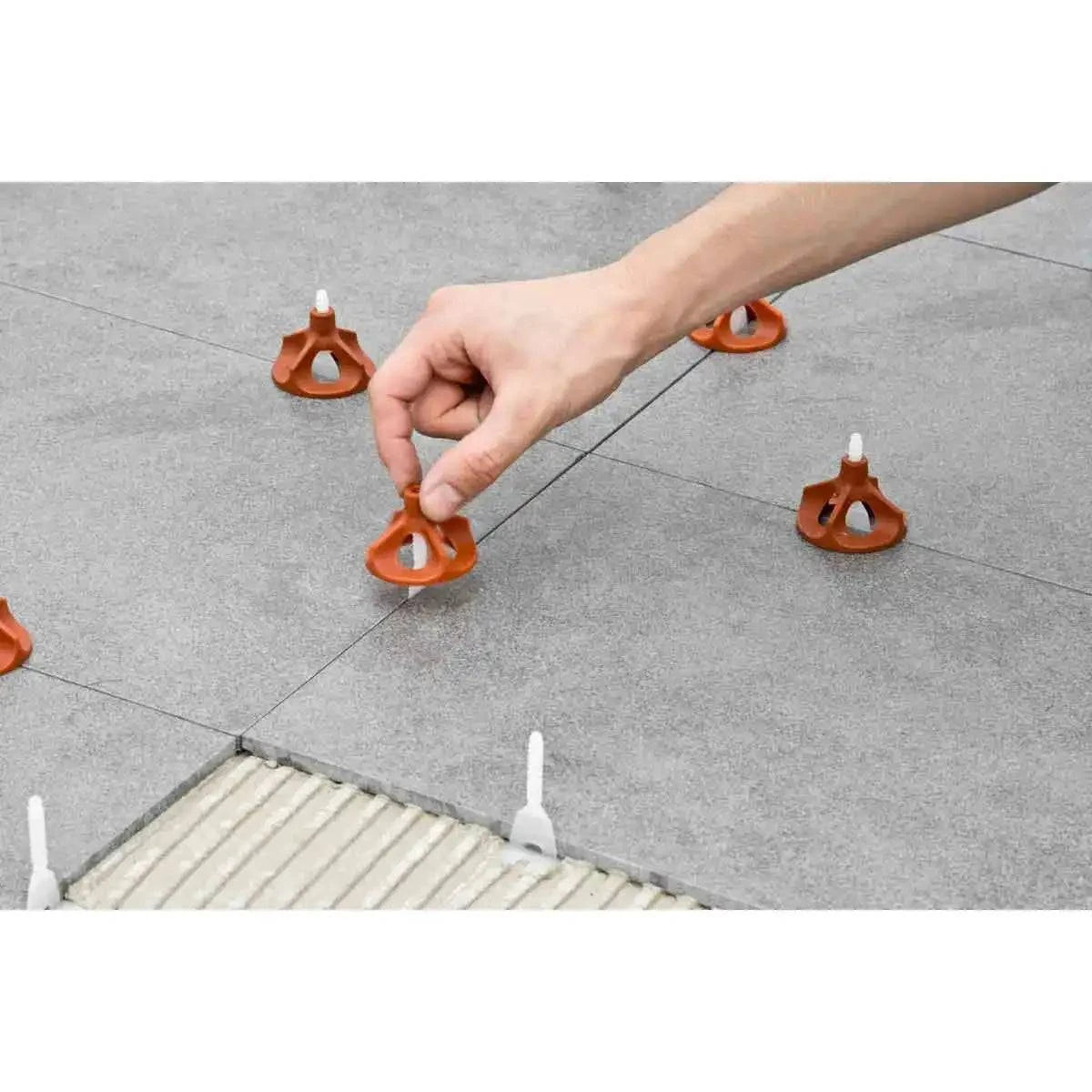

• STEP 3: Spin the caps until tight. You will see tile lift removing lippage

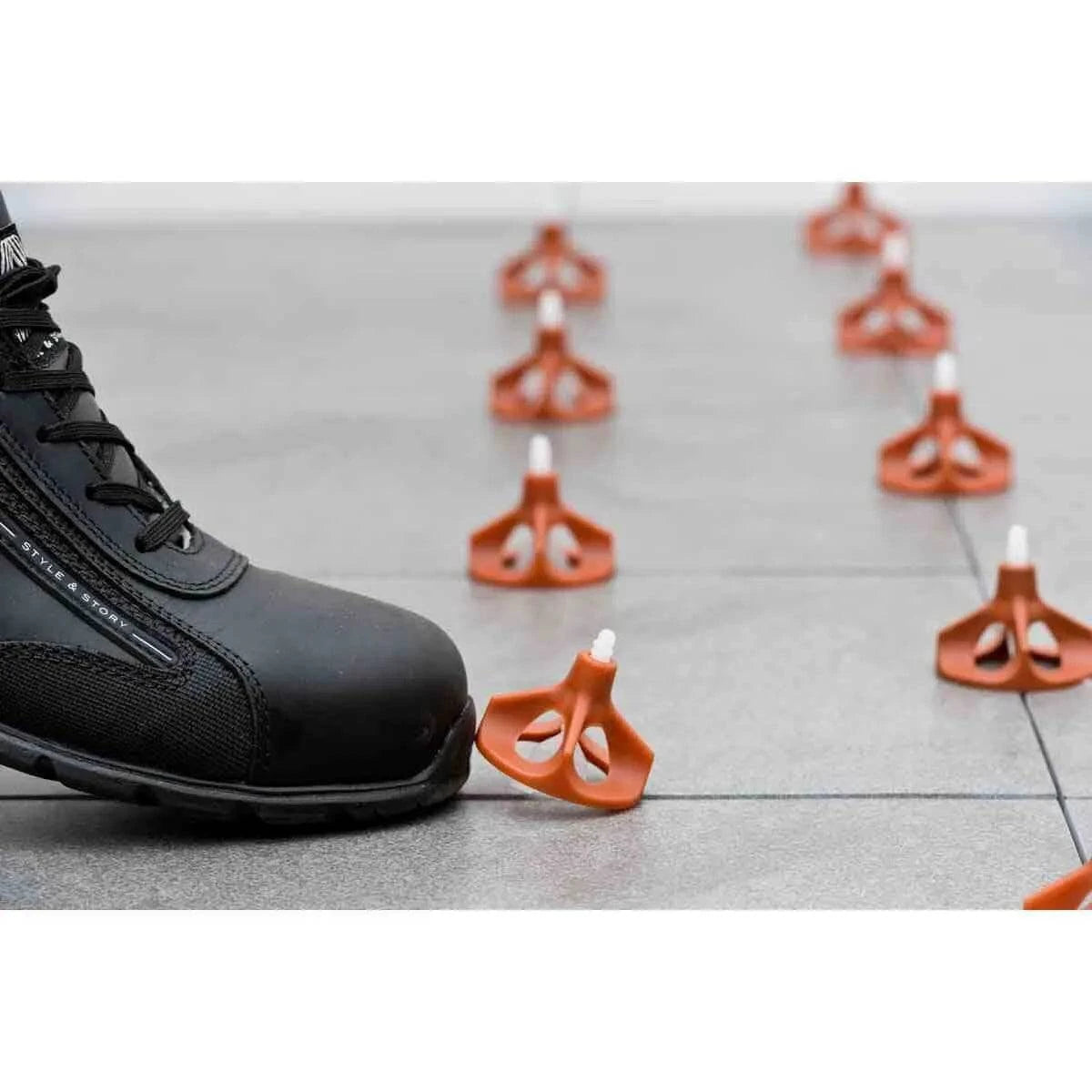

• STEP 4: Once the tile adhesive has been allowed to set, remove the VITE system with a rubber mallet or by kicking them out with your feet. Grout can be installed once all clips have been removed
