Sigma Series 4 "UP" Pulling Incision Tile Cutter
The new Sigma Series 4 tile cutter supersedes the existing Series 3 Max with new features and benefits. Its pulling incision makes cutting tiles quick and easy.
Features
- Ergonomically shaped handle specific for pulling incision
- The scoring wheel diameter of 12 mm is always visible from the operator's side
- CNC milled wheel holder and anti-friction metal shell to eliminate friction and lateral wear on the scoring wheel
- The scoring wheel is also available in a coated version
- Cuts up to 11/16" (17 mm) of material
- The sliding carriage is wear-free, thanks 3 double-row ball bearings that guarantee long-term precision
- Automatic steel compensator for adjusting the slide preload on the rail
- There is an automatic system that holds the handle up to facilitate the insertion of the tile
- Wide splitting foot 100 mm
- The interchangeable anti-mark protection protects the basement from impact during the scoring
- The handle is mounted to the slide carriage with two thrust ball bearings for maximum precision
- Guide bar that can pivot up to 45 degrees in both directions
| Sigma UP Tile Cutter Specifications | |||

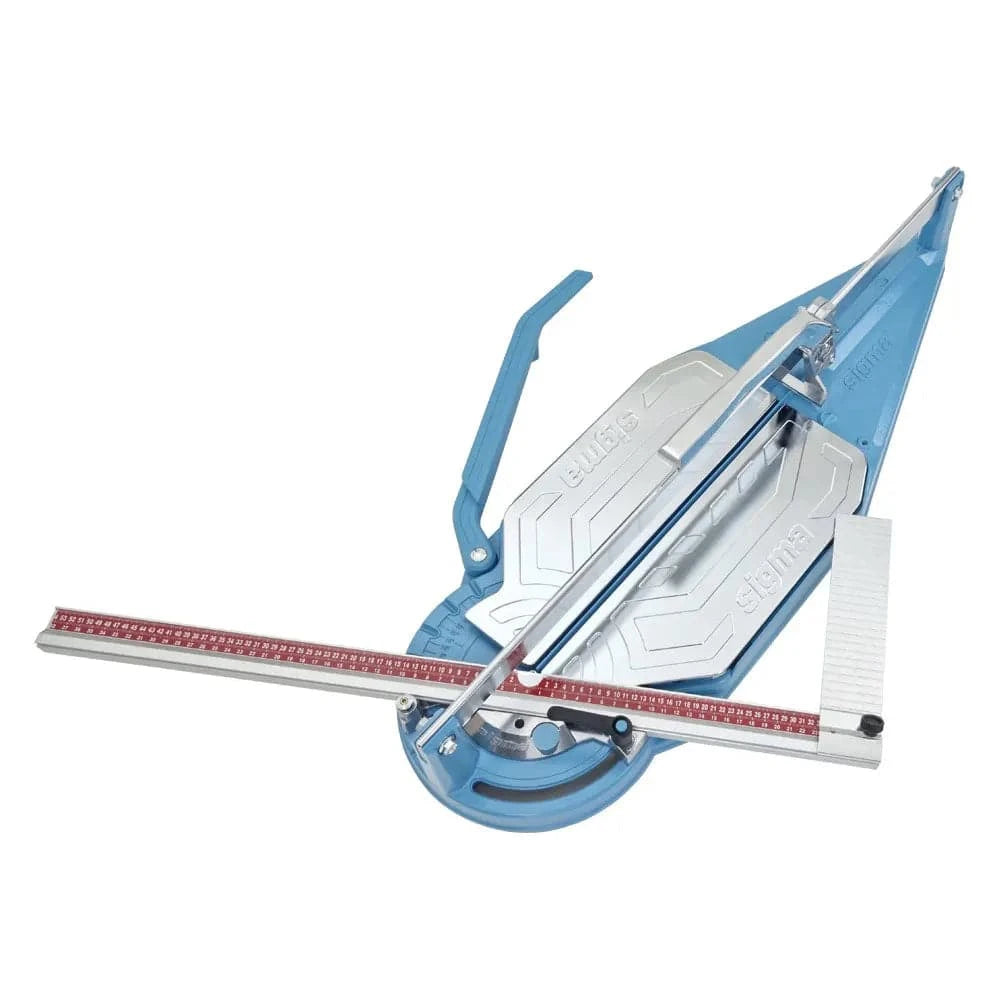

| Model | Sigma 4BU | Sigma 4CU | Sigma 4DU |
| Length of Cut | 27.5 in | 33 in | 40.5 in |
| Diagonally Cuts | 19.5 in | 23.4 in | 28.6 in |
| Weight | 23 lbs. | 27 lbs. | 32 lbs. |
