I see in pictures below product that pitch sticks are placed on concrete(?). Next picture shows lining. So, how was lining put in after pitch sticks were first laid on concrete? Bottom line: Does the pitch sticks kit have step by step instructions on how to put the sticks, liner and mud in order? Also, if wooden floor, do you first put felt, then wire mesh then liner, then sticks. Confused T

It all depends on what type of liner is used. If you use a standard chloraloy liner then the liner should be installed under the Quikpitch sticks. If you use a paint-on liner like Laticrete Hydroban the Quickpitch should be installed first and then the liner is painted on top. We have links next to the pictures with the installation instructions and videos on the installation. If you have more questions please call 800 709-0002.

Looking to use this product to pour a custom shower pan (60" x 40" with drain at one end, rather than center drain). What products and quantities do I need to complete this project in one order?

The 6382-Standard Kit is a good option and if you wanted a shower conversion kit that has the drain on the right or left side the SKU-- ssck-601 is another option. For more questions about this we recommend calling the manufacturer, Mark E. Industries, directly at 727 771-9470.

I have a 48" x 65" shower area. I would like to purchase the Quick Pitch and the goof proof curb. The curb will only be the 65" side and the other three sides are walls. The drain will be in the middle. can you tell me what I need to order

You will need to purchase the You will need the KP-543 Kirb-Perfect 30" shower curb. Your curb length is 65", so you will need to purchase 3 of the KP-543 and cut down to size.

Your extra sticks' length is not listed? How do you know which to buy? Extra sticks or extended sticks? If I buy 9799 kit, I need extra sticks because my shower is 36" x 74". Please advise.

The extended sticks includes 6 float sticks 7/8" to 1-5/8" x 36" in length. Meaning these extensions start at 7/8" and can be extended to 1-5/8". If you need to make the standard kit longer due to the size of the shower you would need the extended sticks.

the last time I used the float sticks, I used the PrePitch, then a vinyl pan liner, the the Quick Pitch together with the round center ring. have used that setup several times over the past few years, anyway, my question is that I don't see the PrePitch sticks advertised here. are they no longer used or sold?

The Pre-Pitch sticks are still available. Click here for Pre-Pitch Shower Kits

Do you have a kit that will fit an 8' 4"x 6' 6" room designed for a center of room drain?

Unfortunately, the longest length available for the Mark E Quick Pitch with the extension is 72" from the drain. The pitch would have to be continued without the assistance of the sticks.

I see in specs that for square drain cover applications to use extra float sticks. However, in the pictures below the standard size kit, it shows the 6 floating sticks, universal ring (is this included?) surrounding a SQUARE drain. So, do I still have to buy the x tra floating sticks?

The Quick Pitch Standard Kit includes the smaller center ring for round drains. If you are using a square drain the Universal center ring is sold separately. We recommend the extra sticks because the smaller center ring included with the Quickpitch Standard kit is not needed when using the universal center ring.

1 10

Quick-Pitch Kit Shower Floor Drainage Kit | Standard Kit

Name: Quick-Pitch Kit Shower Floor Drainage Kit
Brand: Mark E Industries
SKU: 6382-Standard Kit
Price: 47.47 USD
Availability: InStock

Add to Cart to See Savings

Brand: Mark E Industries | SKU: 6382-Standard Kit | MPN:

Pitch Options

Standard Kit Extended Float Sticks Extra Float Sticks Center Ring Clips 12 pcs

Product variants

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

Mark E. Industries Quick-Pitch Floor Drainage Kit

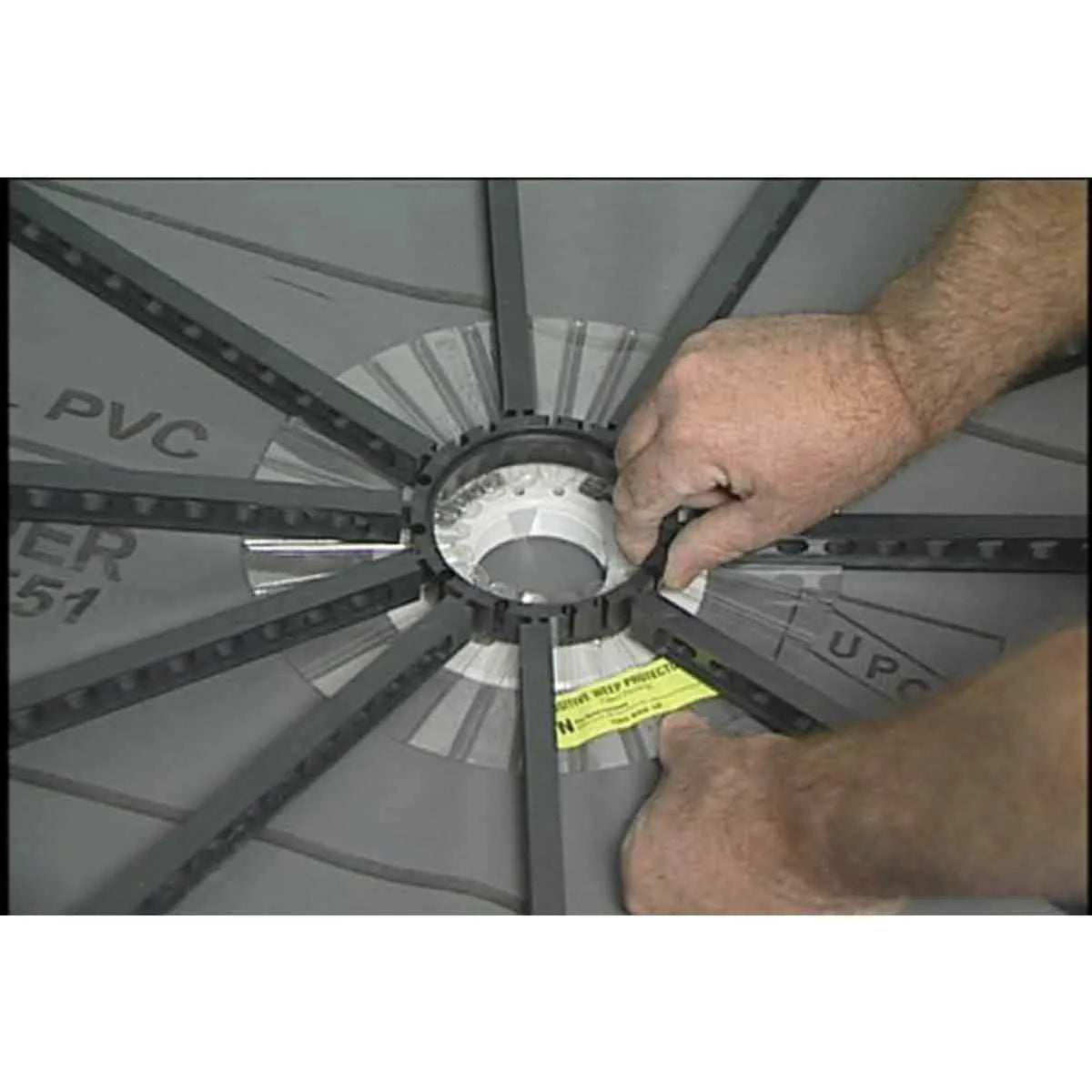

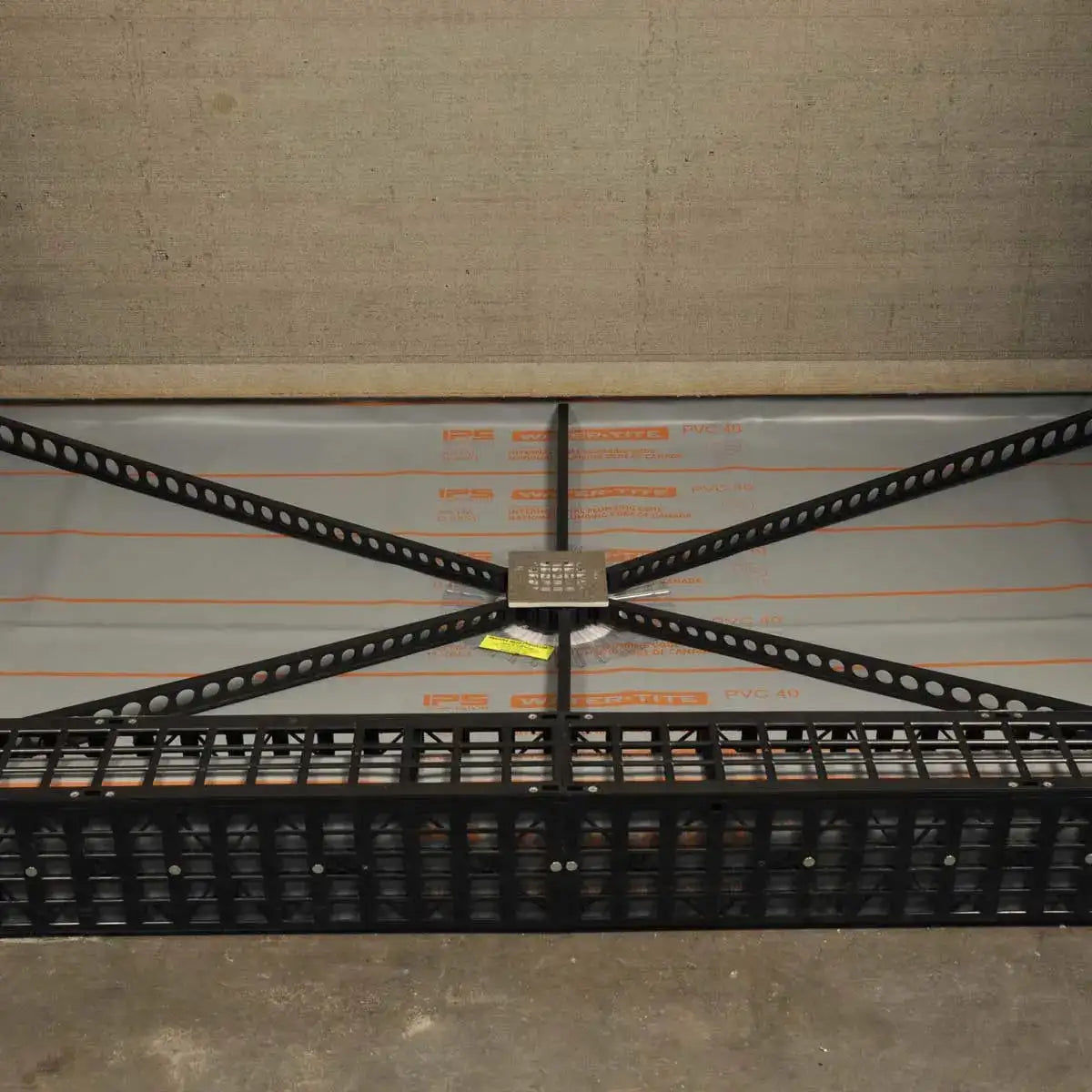

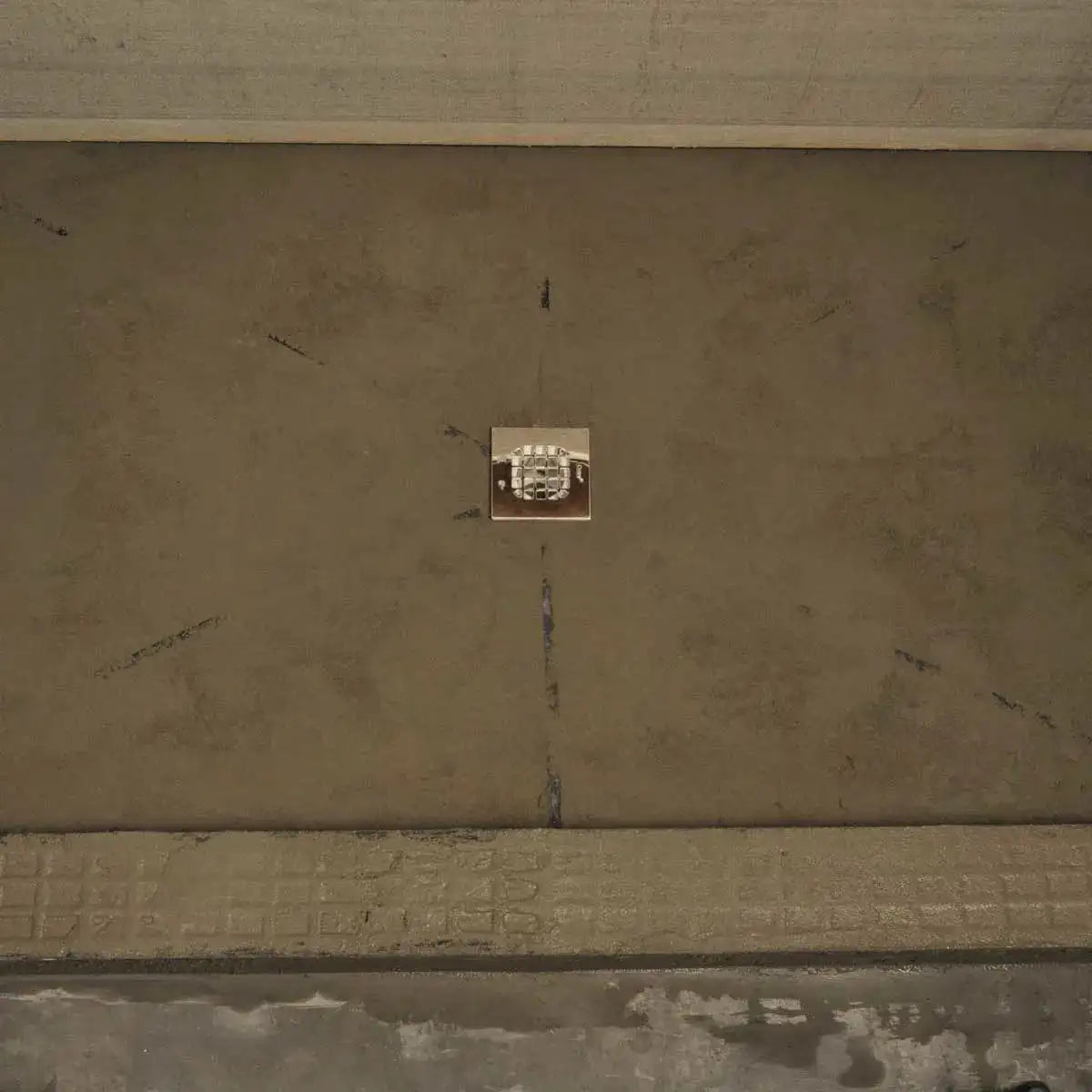

This permanently installed screed guide is for shower floors, tile tubs, and fountains. It guarantees a proper slope for drainage with no error in measurement or the need for a laser or level. Install your dry-pack mortar with ease using this 'mud pan' template. Use the center ring placed over the drain with the tapered float sticks to achieve a perfect 1/4" fall per 12" run.

Features

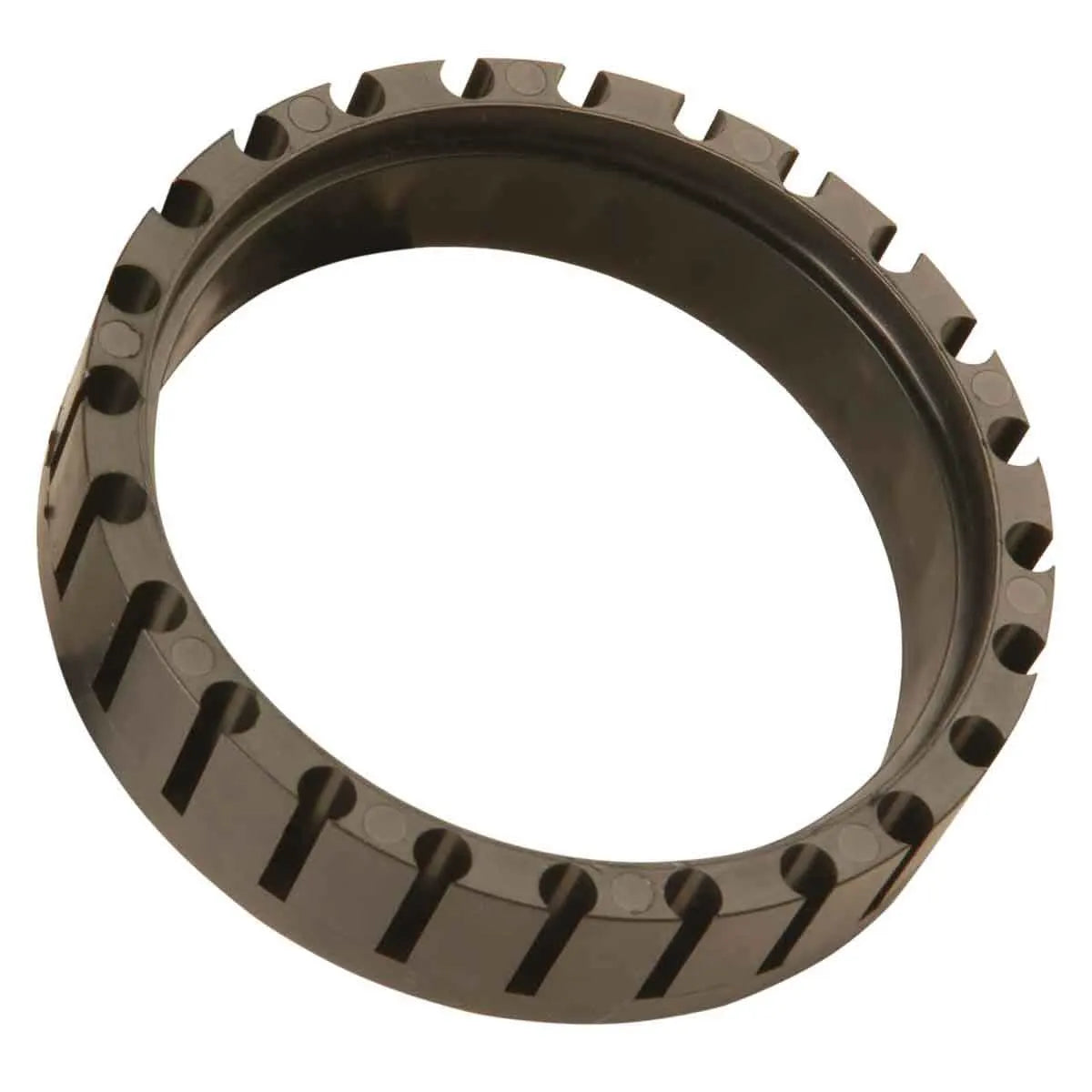

Standard center ring for round drain covers
Square drain covers require the universal center ring. We recommend purchasing the extra float sticks with the universal center ring for square drain cover applications
Standard Kit (QPK-101) - Fits 3 ft x 5 ft showers
Extra Float Sticks (XFS-101.2) - Contains 4 sticks- These are necessary for larger areas for screeding purposes. You want your float sticks to be a maximum of 2-1/2 ft from each other at the outer ends. These ʻextrasʼ are generally needed for use in custom shower areas with either curved or more than four walls
Extended Float Sticks (EFS-103)—These are for areas where the outer walls are greater than 3 feet from the drain. They allow you to do up to a 12 ft x 12 ft shower room!
With Quick Pitch's three kits, anyone can float in any size or shape shower and get a perfect 1/4" slope every time!

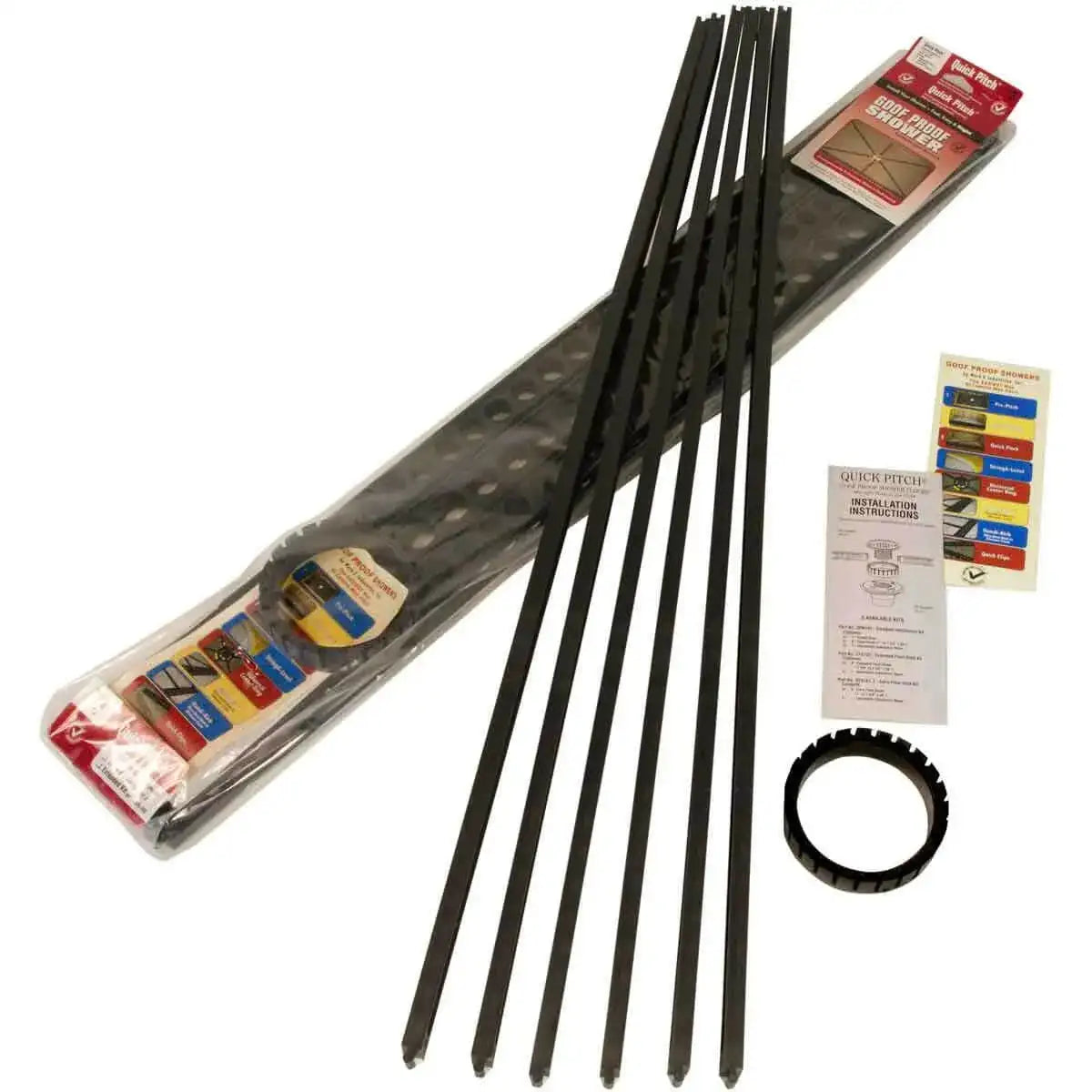

Standard Kit (QPK-101) includes 6 Float Sticks, 1” to 1 3/4” taper x 36" long and 1 center ring

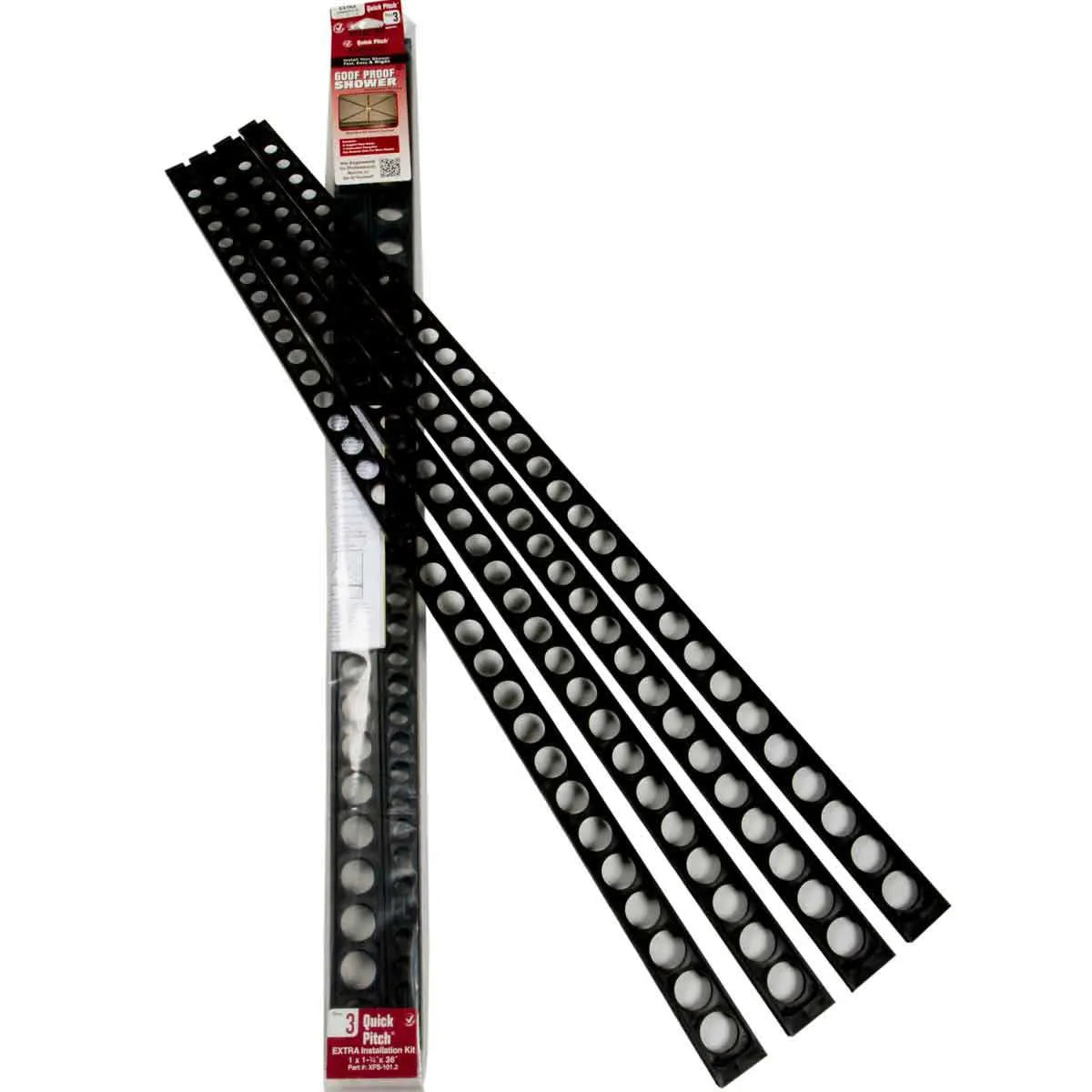

Extra Float Sticks (XFS-101.2) includes 4 Float Sticks, 1” to 1 3/4” taper x 36" long

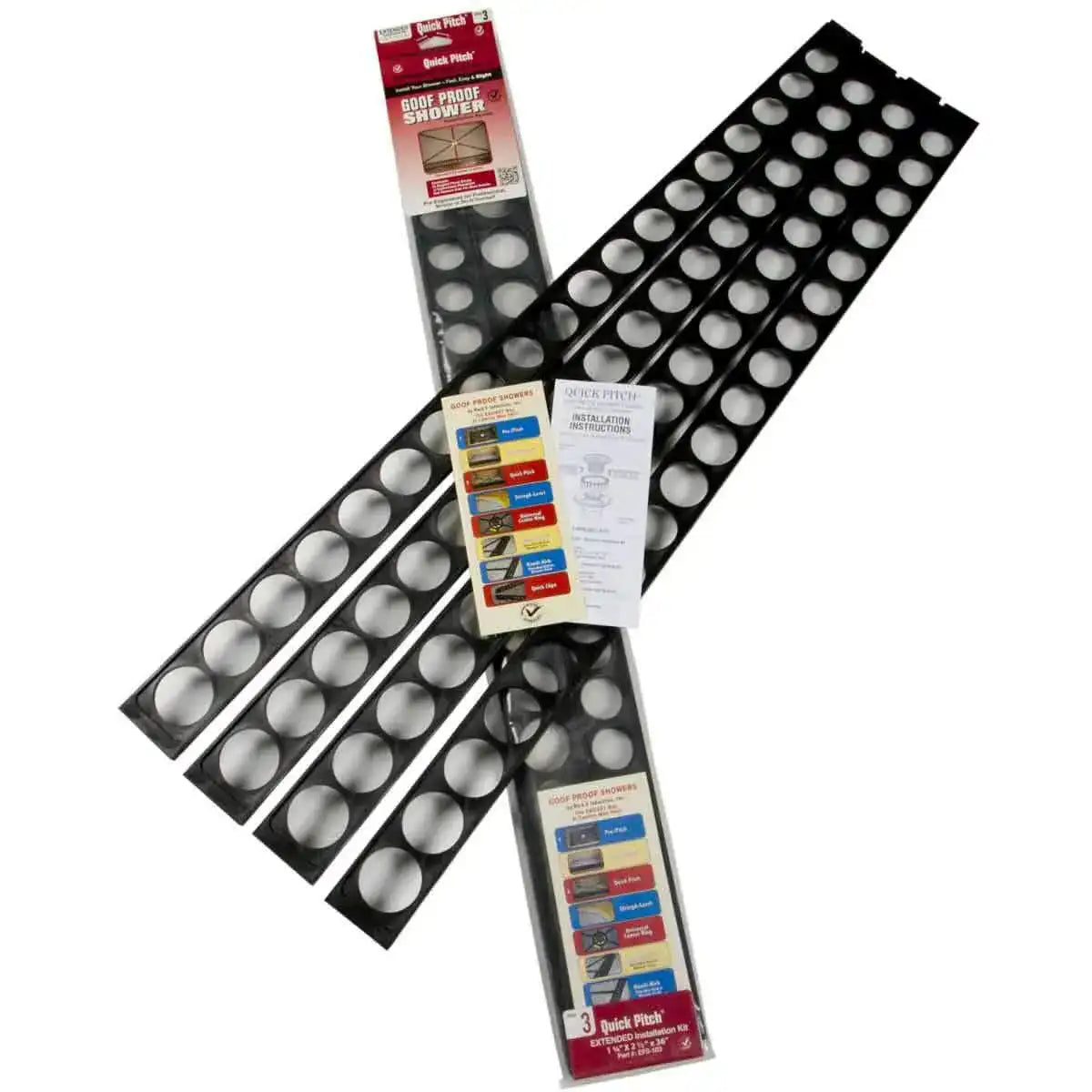

Extended Float Sticks (EFS-103) includes 4 Float Sticks, 1-3/4" to 2-1/2" taper x 36" long

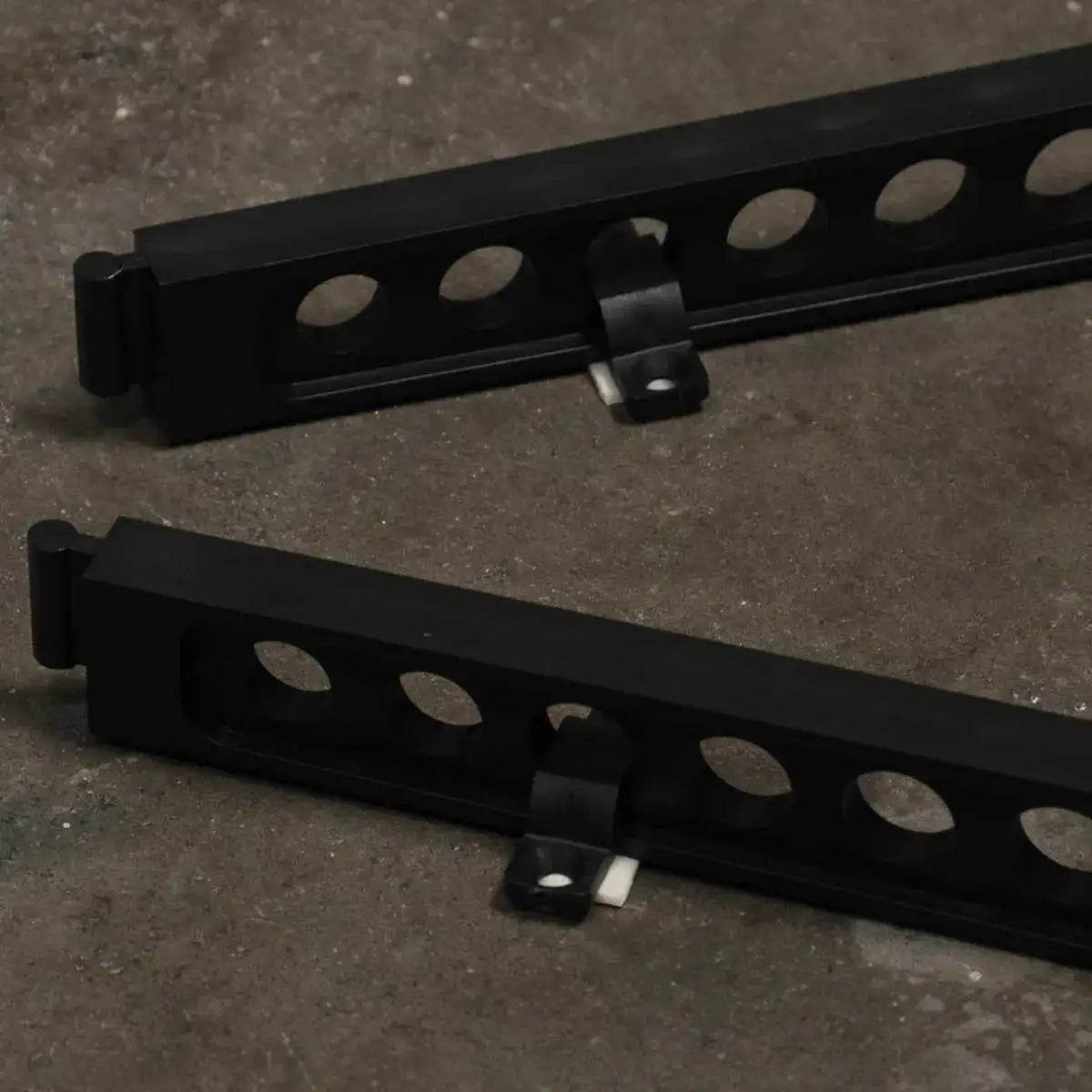

Quick Clips

The Quick Clips are designed to be used with the Schluter Kerdi Drain, Noble TS, and Quick Drain Systems
These clips hold the Quick Pitch Standard and Extended Float sticks in place for the installation on a wood or concrete sub-floor

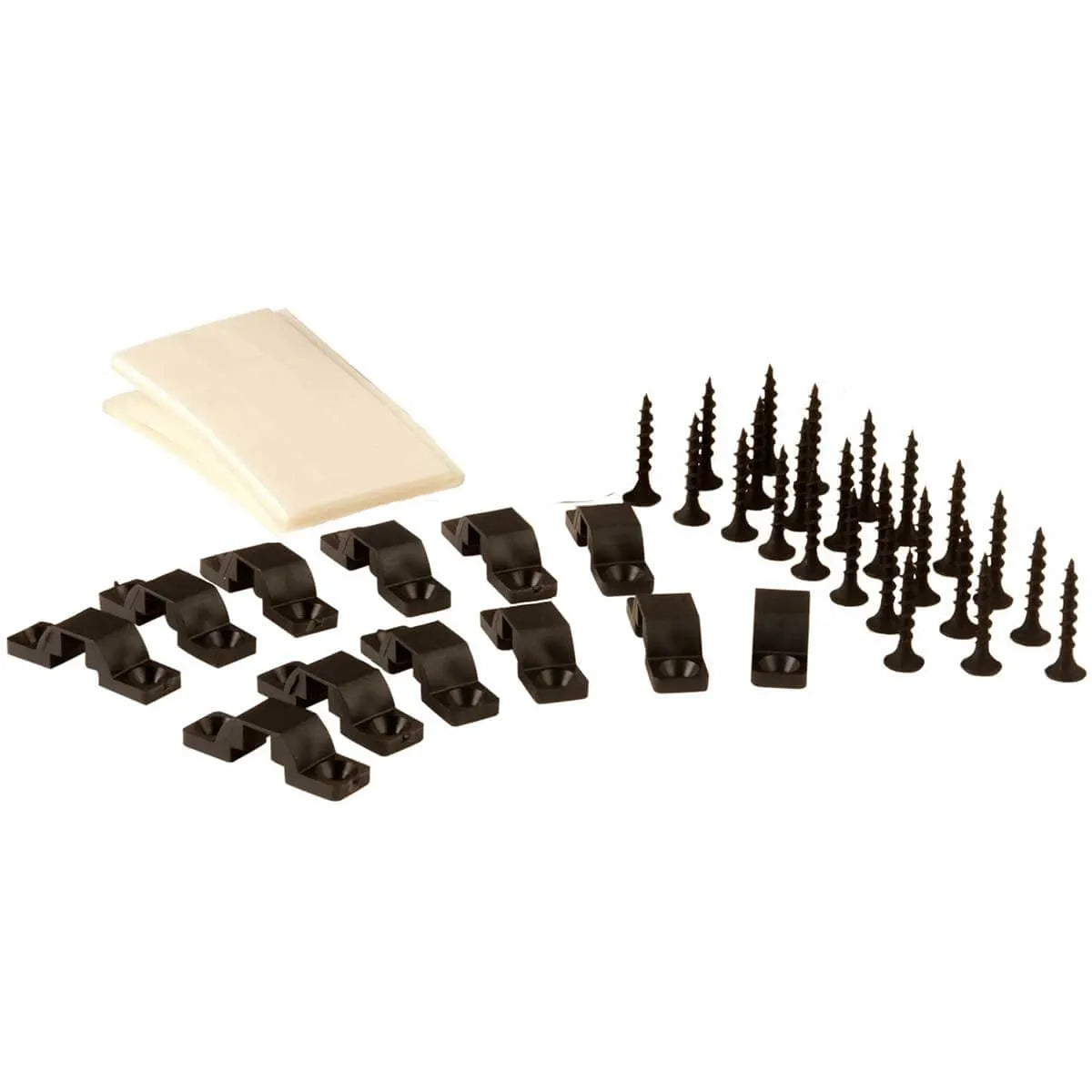

The package contains 12 clips, 24 screws, and 12 double-sided tape pieces
