Noble Shower Niches

Noble Shower Niches

These shower niches are lightweight, durable and ready to tile. They are much faster to install when compared to the traditional framing methods.

Features

• A waterproof, tile ready shower niche made from extruded polystyrene with an acrylic polymer finish
• Install in minutes
• Waterproof and ready to tile
• Sized for better fit, niche corner are exaggerated to simplify installation of square tile
• Durable and lightweight
• Niches mount flush in 2"x4" stud wall construction with 1/2" backer board

Installing Your Niche

• Cut and remove backer board panel
• Use a 100% silicone based sealant to adhere niche to back wall and/studs
• seal joints between niche and backer board using silicone sealant. Silicone should not be smeared over the face of niche or backer board
• Tape joints with backer board tape or thin set NobleSeal TS to walls overlapping joints
• Install tile using latex modify thin-set

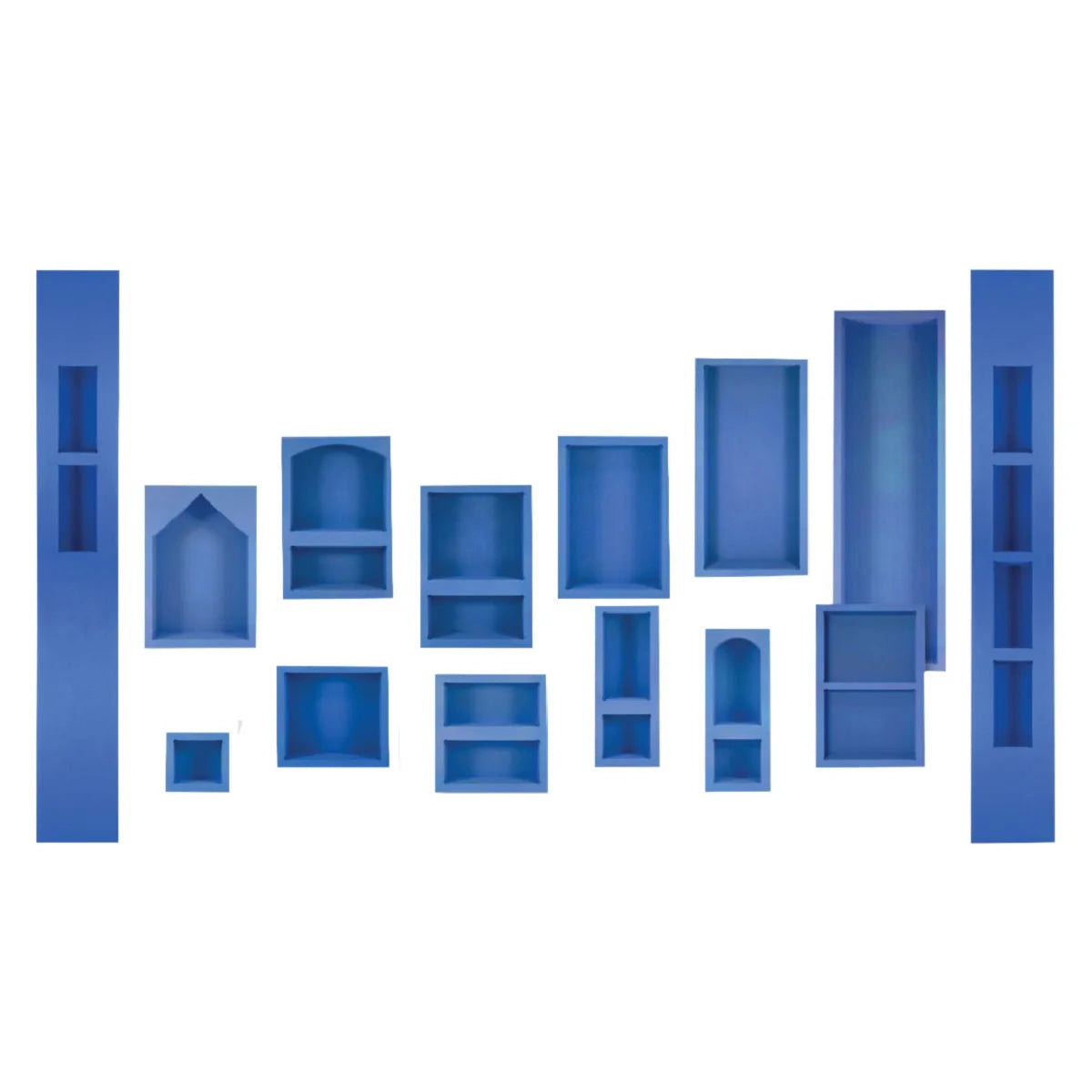

Choose from different sizes

All Outside Dimensions are in inches with a tolerance of +/- ¹/₈ inches.

Model	Outer Dimensions	Niche Dimensions (unfinshed)

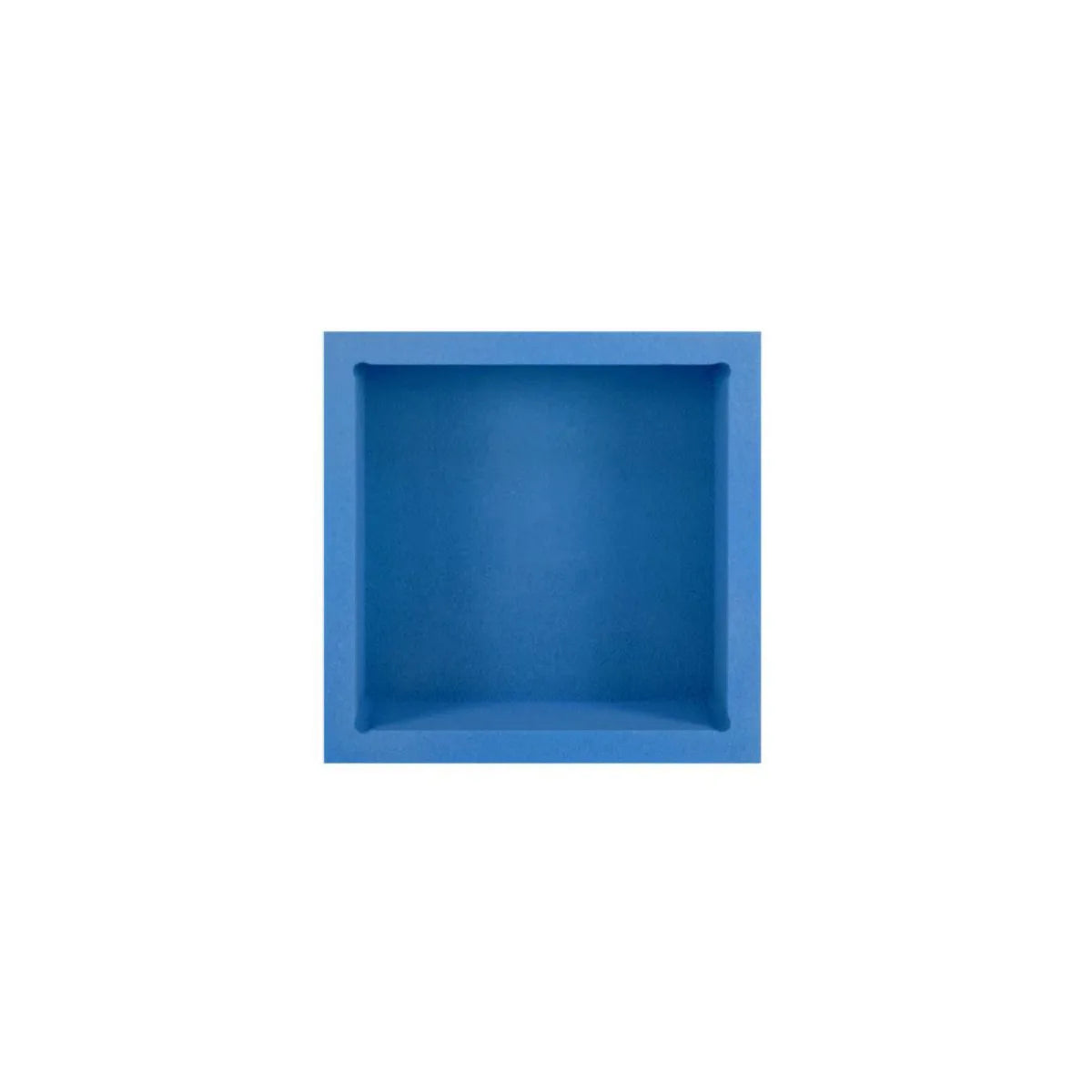

301 square niche	14-1/4 x 4 x 14-1/4 inch	12 x 3-1/2 x 12 inch

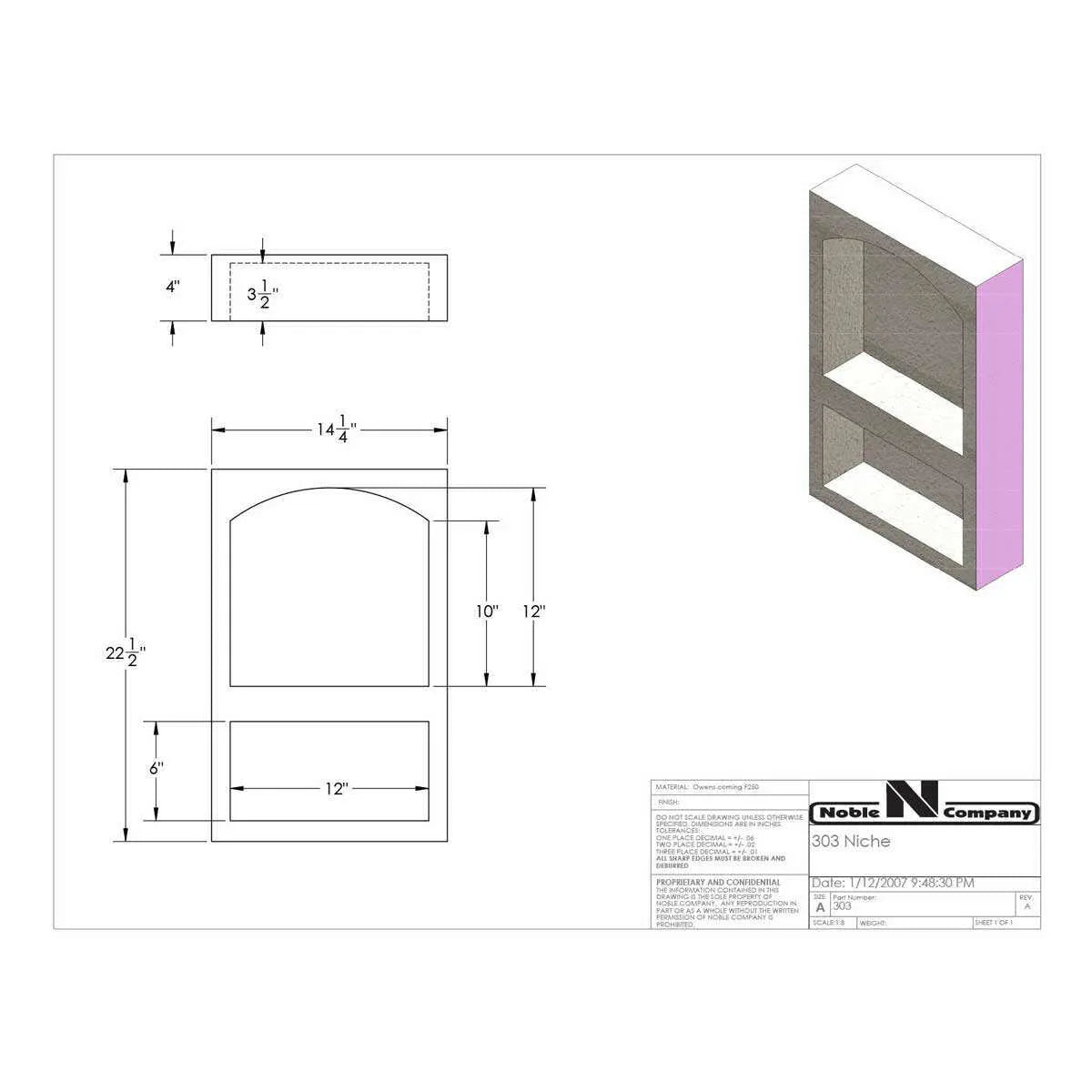

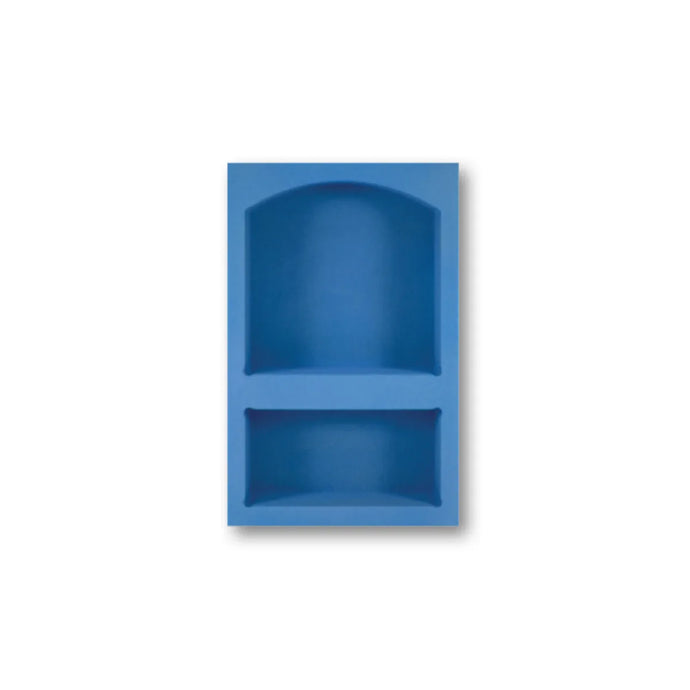

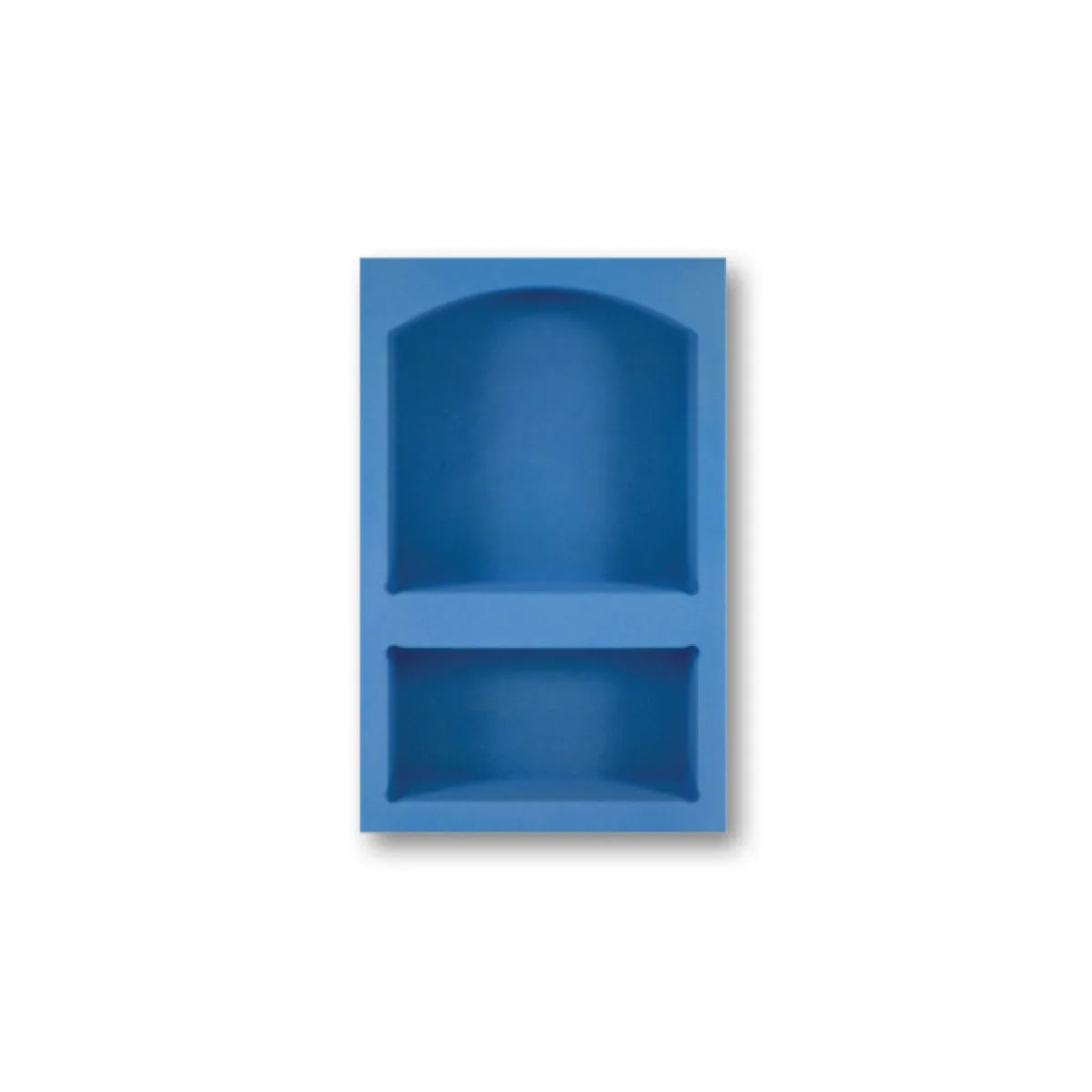

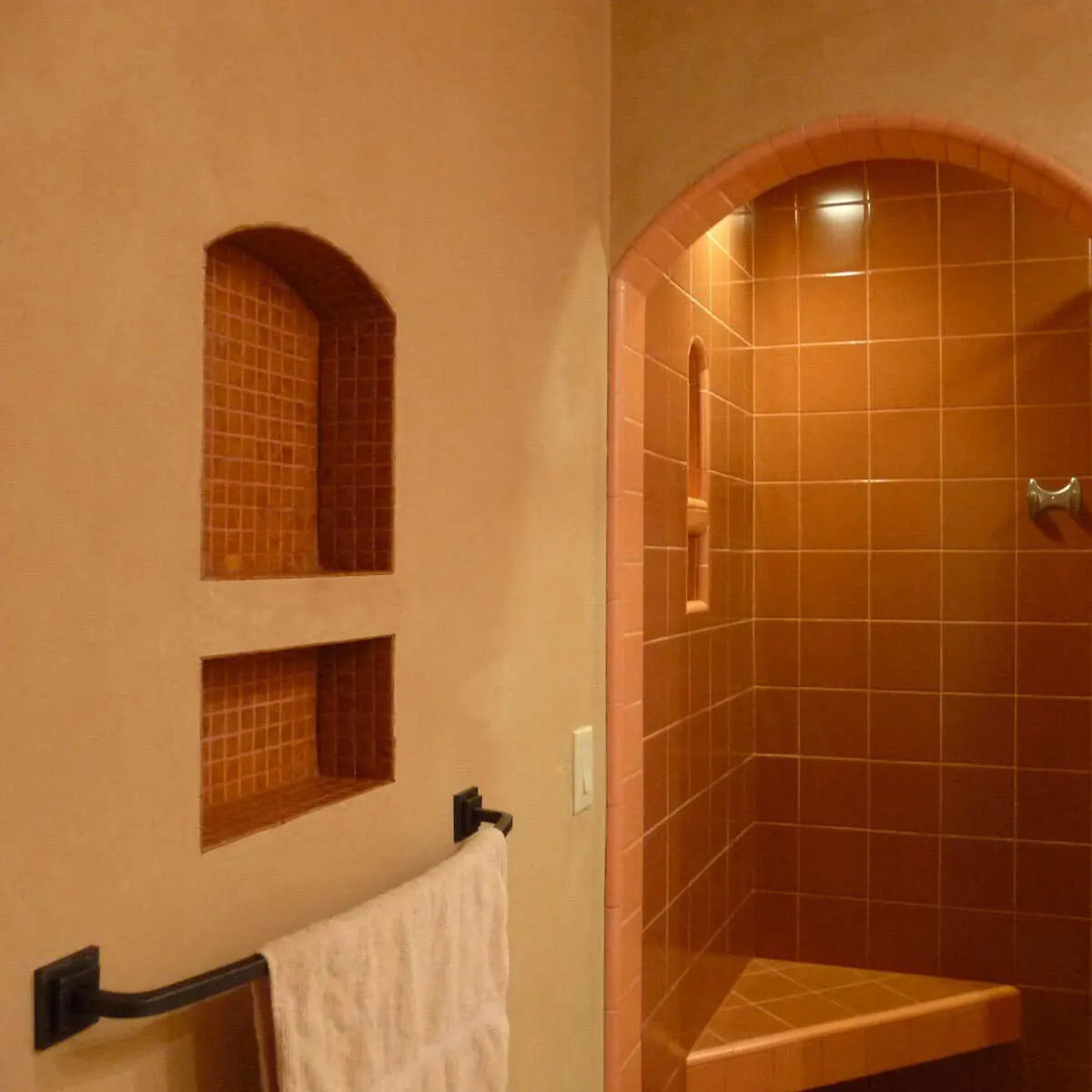

303 arch combo niche	14-1/4 x 4 x 22-1/2 inch	12 x 10(12 at center) x 3-1/2 & 12 x 6 x 3-1/2 inch

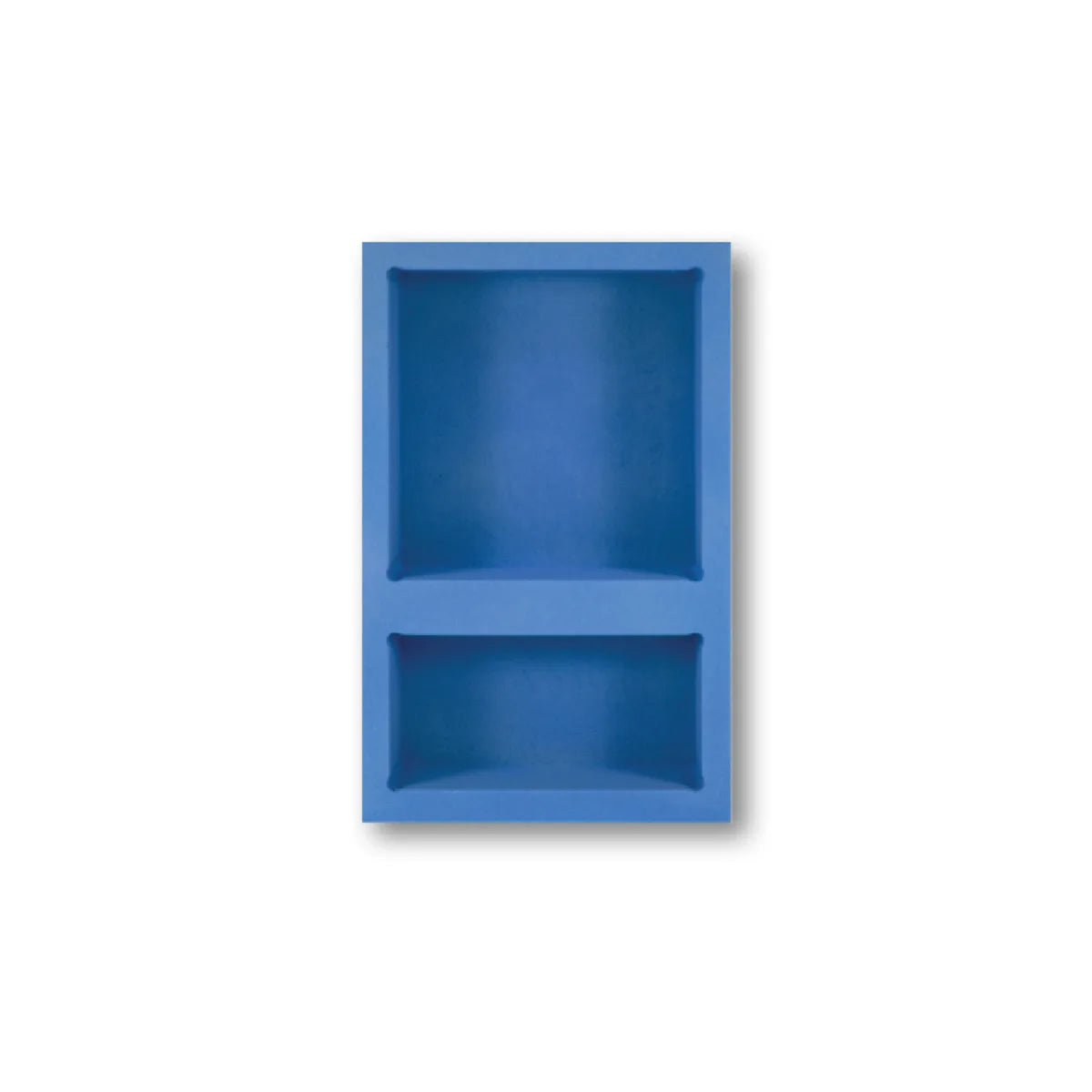

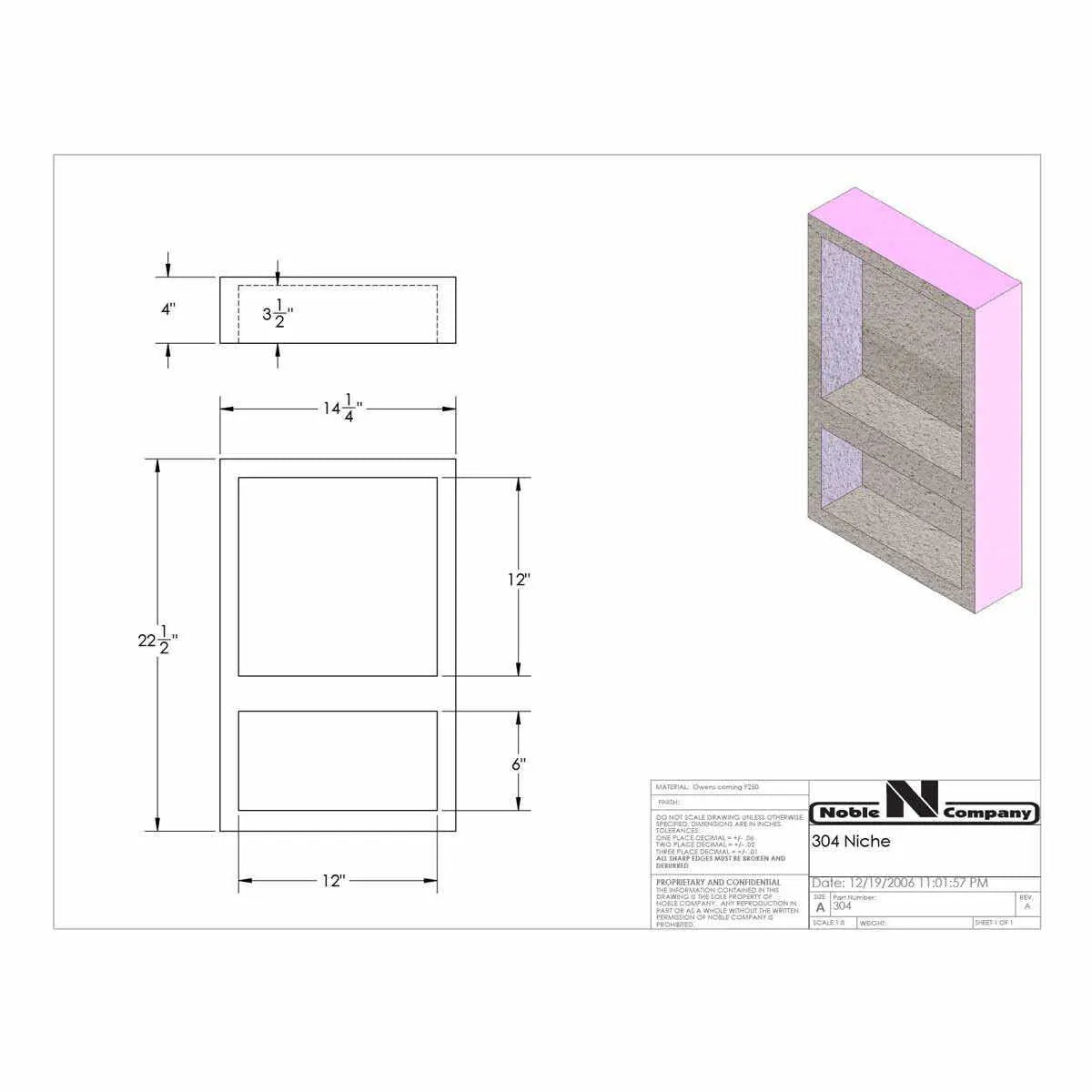

304 wide combo niche	14-1/4 x 4 x 22-1/2 inch	12 x 3-1/2 x 12 & 12 x 3-1/2 x 6 inch

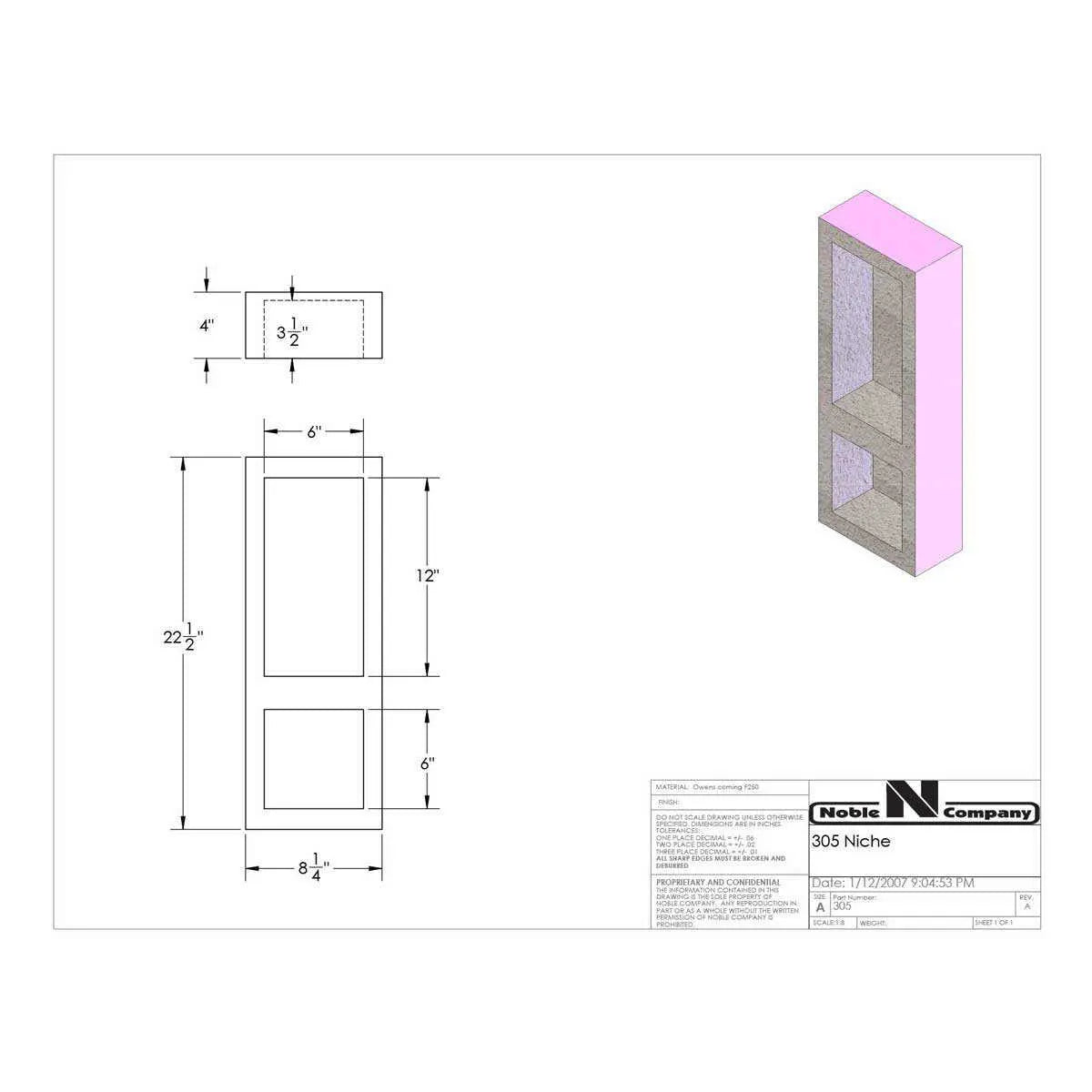

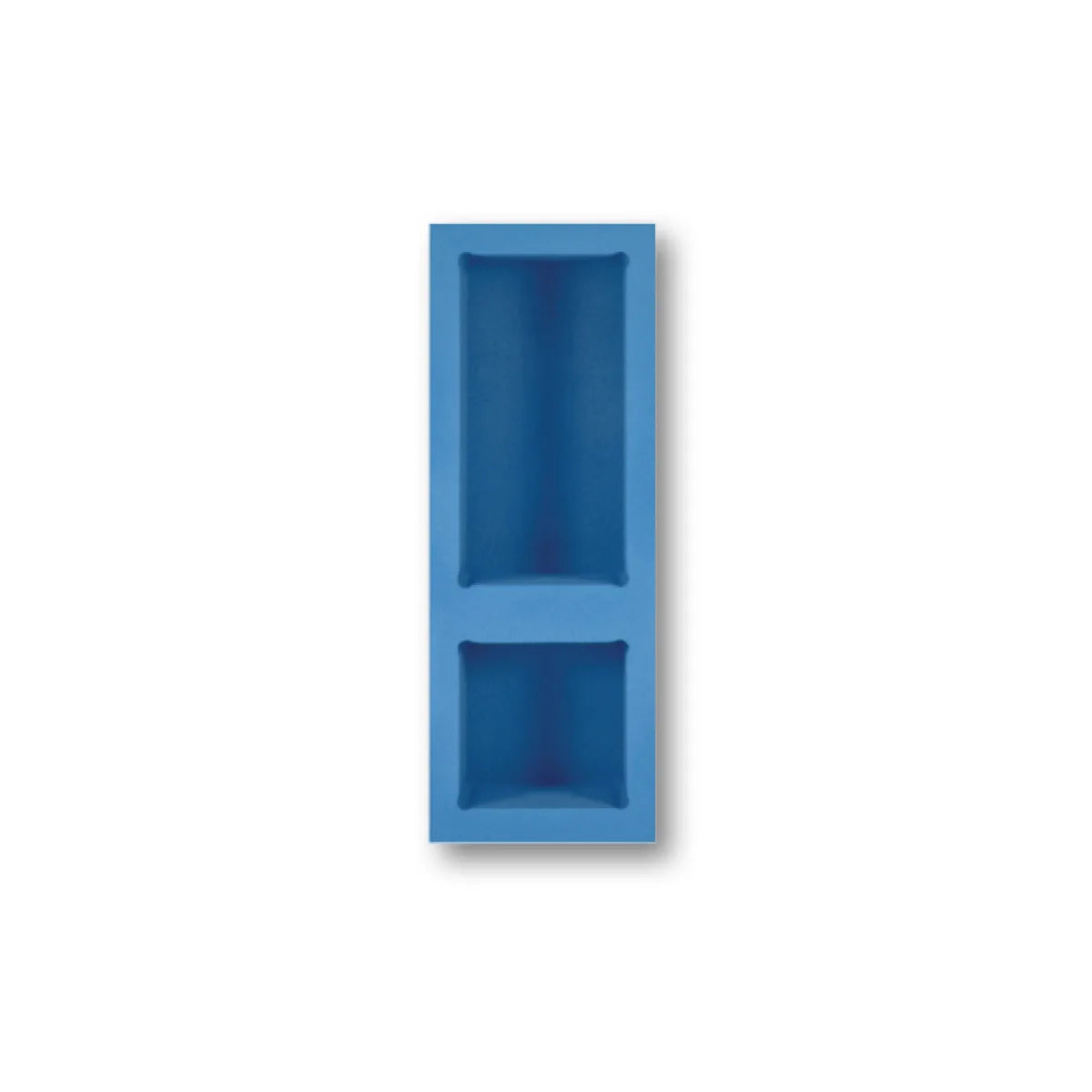

305 narrow combo niche	8-1/4 x 4 x 22-1/2 inch	6 x 3-1/2 x 12 & 6 x 3-1/2 x 6 inch

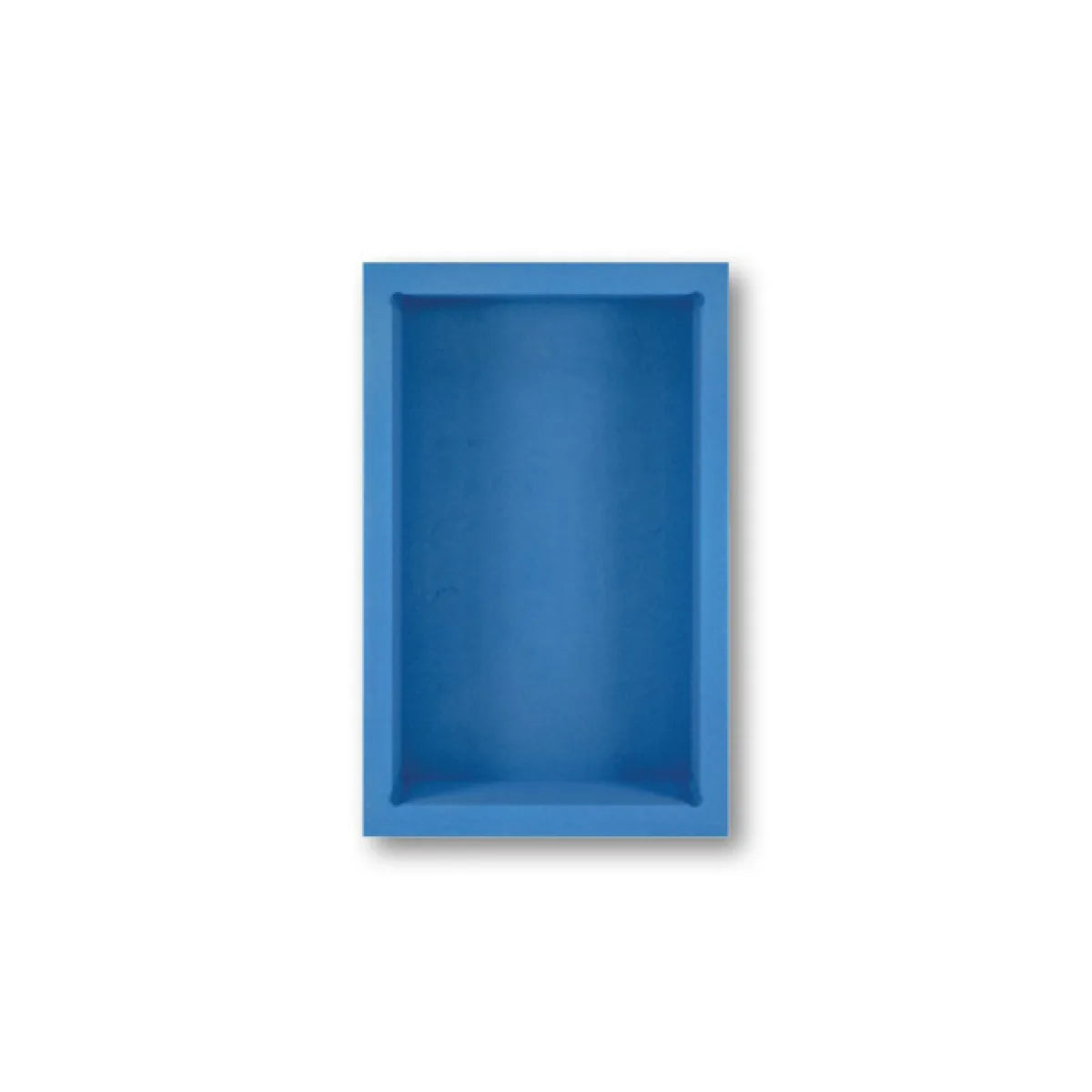

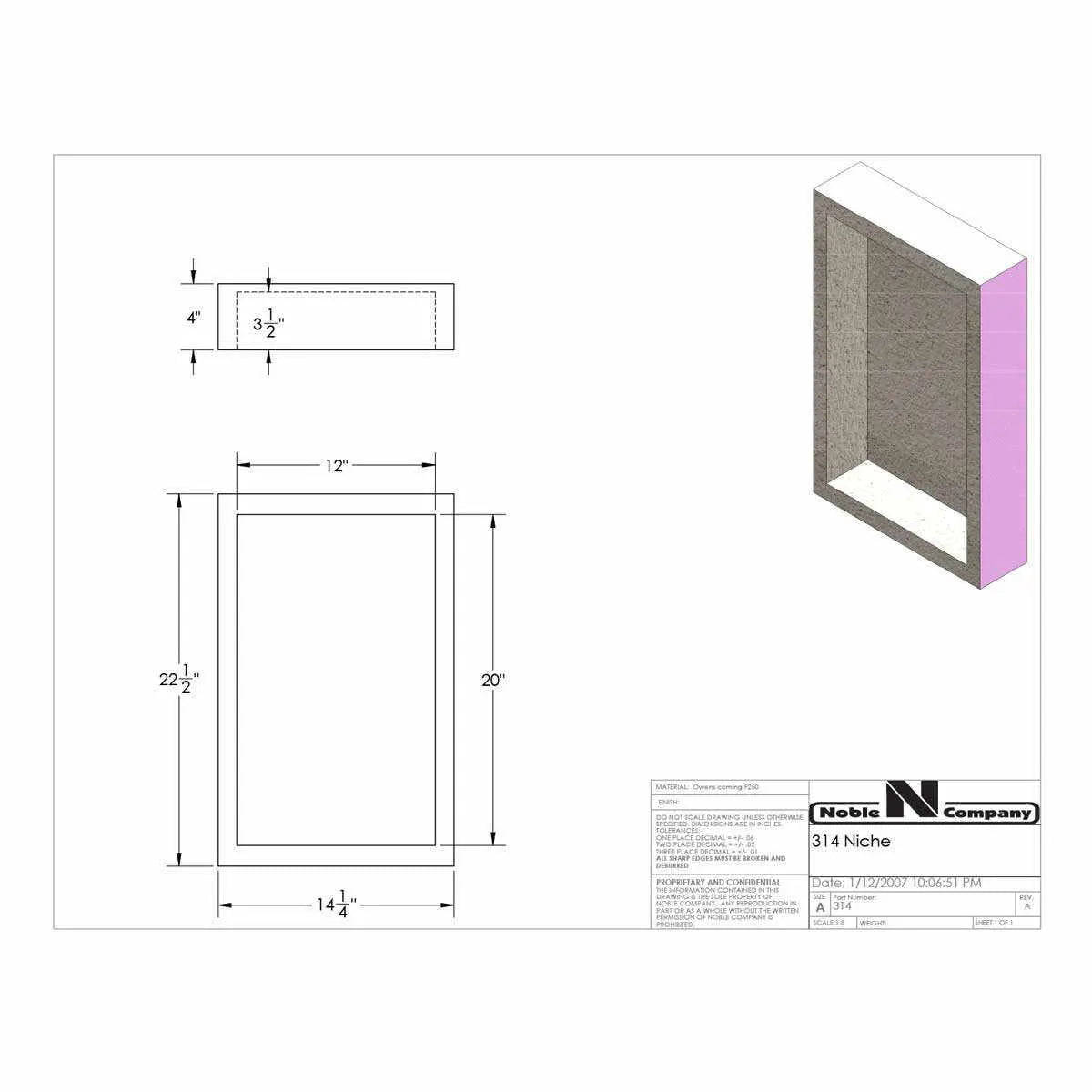

314 rectangular niche	14-1/4 x 4 x 22-1/2 inch	12 x 3-1/2 x 20 inch

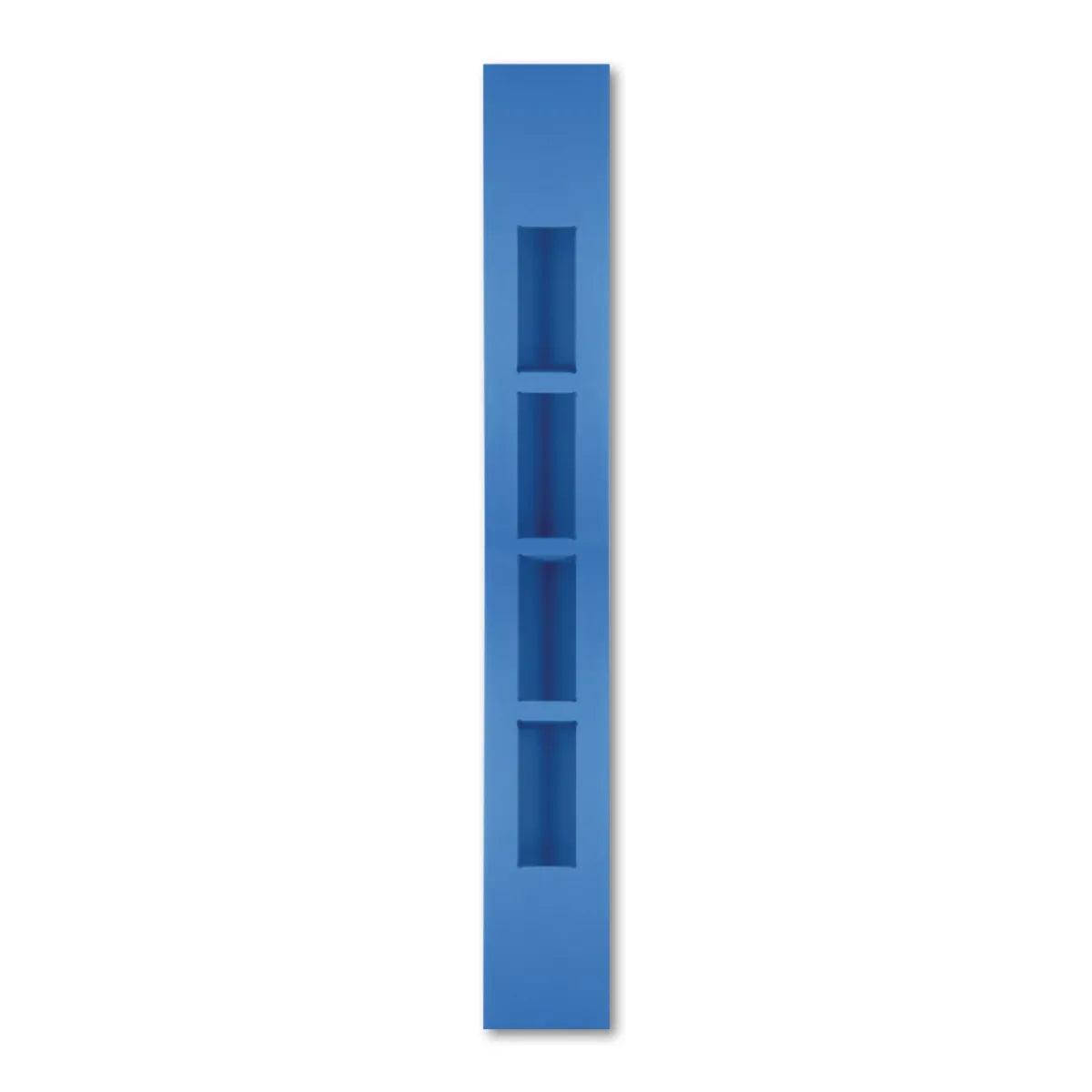

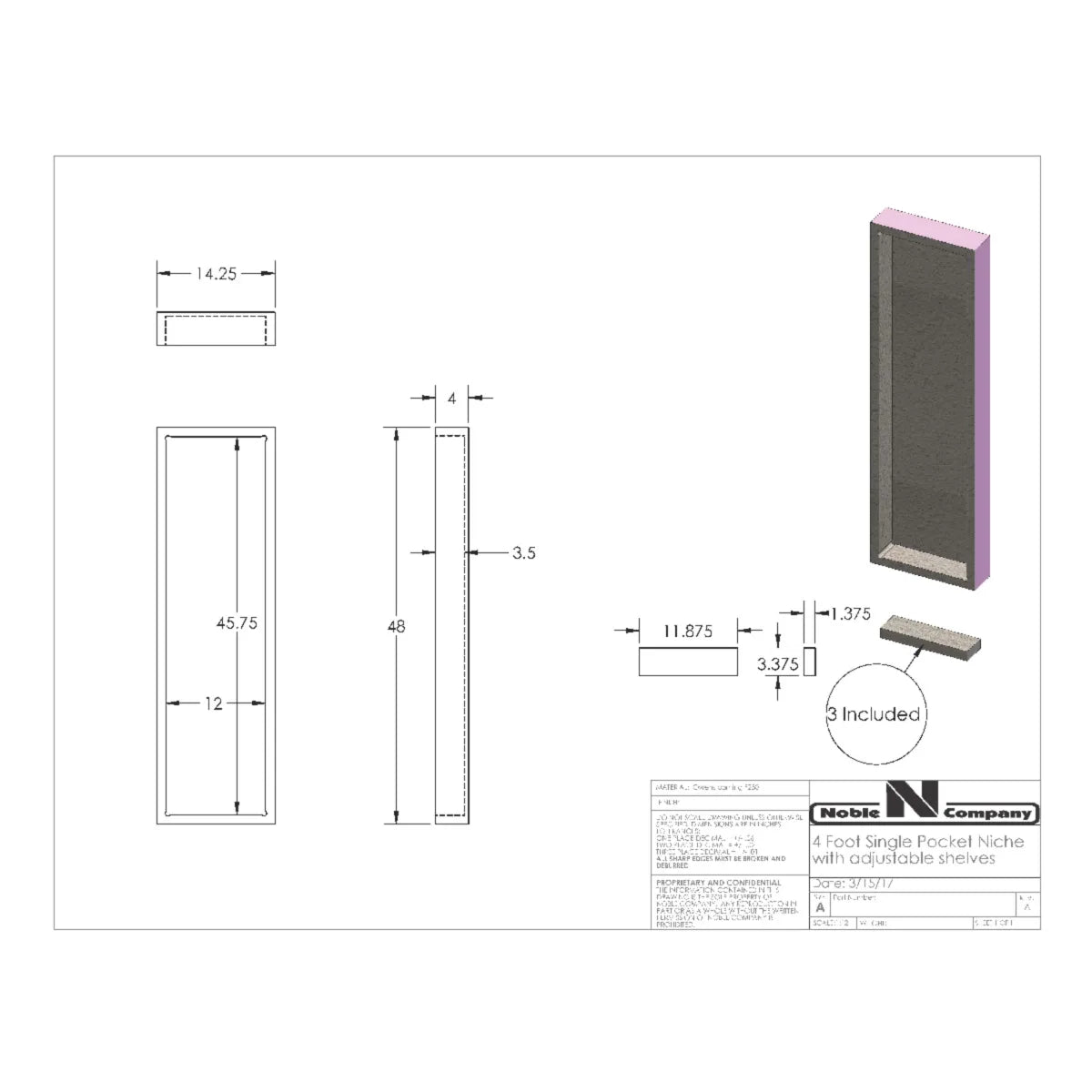

2943 4 ft. custom niche (w/ 3 shelves)	14-1/4 x 4 x 48 inch	12 x 3-1/2 x 45-3/4 inch
