MBW 18" x 22.5" Plate Compactor

$2,25820 USD
Shipping calculated at checkout.
Brand: MBW | SKU: GP18GHC | MPN:

Shipping & Delivery

  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

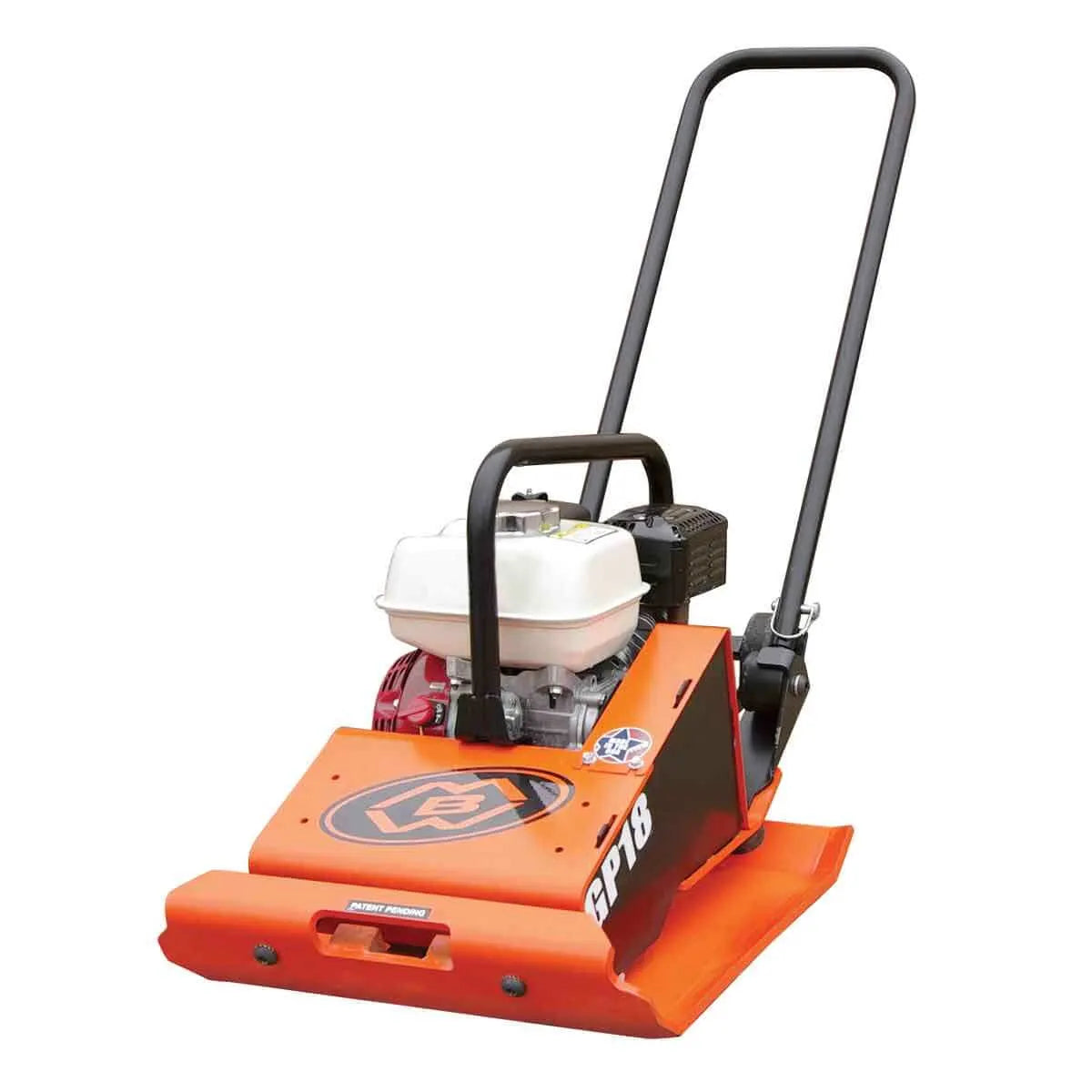

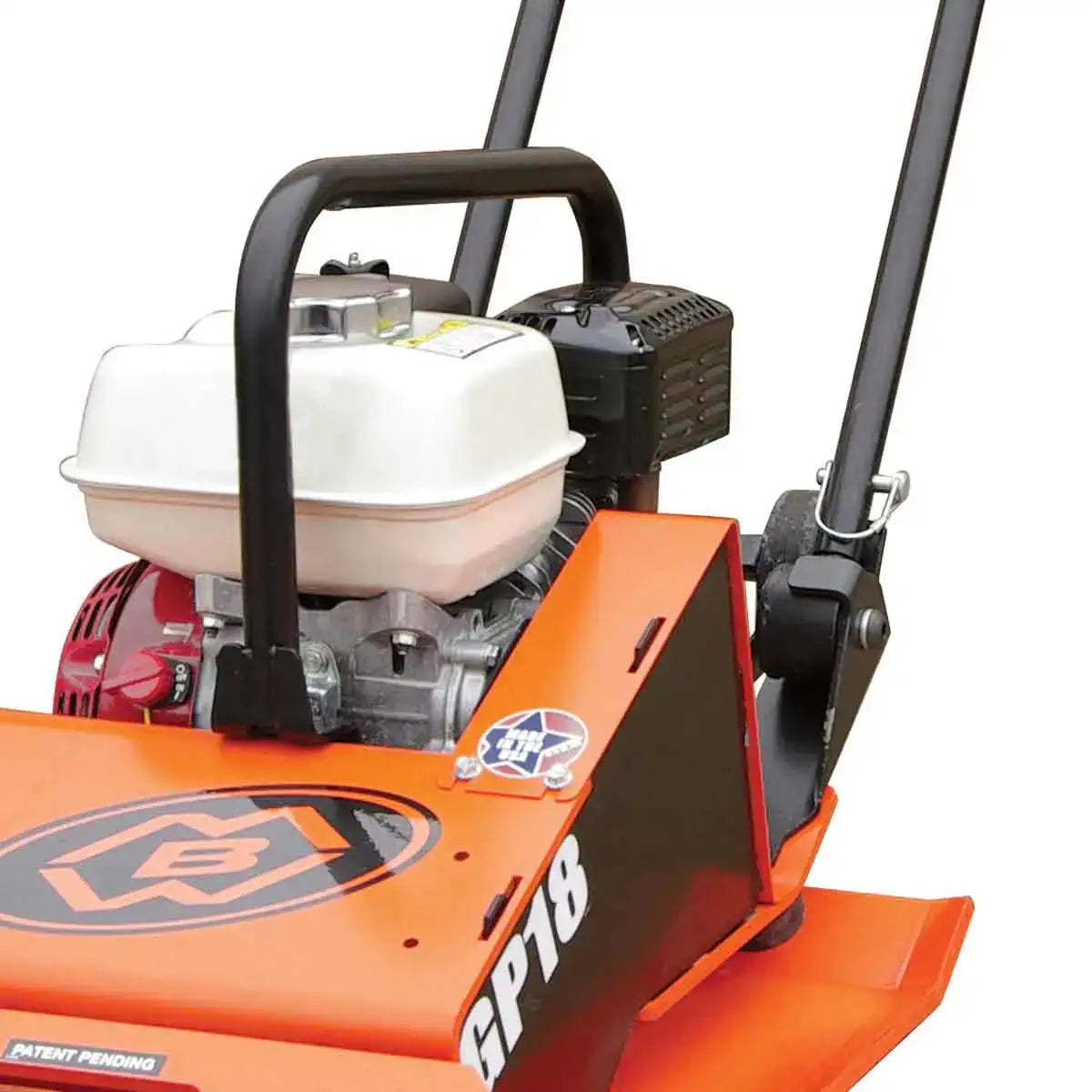

MBW GP18GHC 18" x 22.5" Plate Compactor

The GP18GHC Plate Compactor is a portable and highly economical vibratory plate that offers unmatched compaction performance in granular soils. It is fabricated and assembled in the USA!


Features

  • Reduces hand-arm vibration and also better isolates all upper mass components, including the engine, from vibrations produced by the machine's exciter
  • Travel speed to 75 ft. per minute
  • Ideal in confined areas on materials like granular soils including sands, bank run, gravels
  • Capable of achieving lift depths of up to 10" (25 cm)
  • Lightweight plate weighing 138 lbs (63 kg)
  • Ideally suited as an economical alternative for small to medium soil compaction applications
  • Heavy-duty, one-piece exciter
  • Lift cage included
  • Optional water tank, paving block, and wheel kit available
  • Proudly Made in the USA


MBW GP18GHC Plate Compactor Specifications
Horse Power 3.5 hp
Motor Honda GX120 - Gas
Plate Size 18 in. x 22.5 in.
Amplitude .058 in.
Centrifugal Force 2000 lbs.
Exciter Speed 5350 vpm
Compaction Depth Up to 10 in.
Travel Speed Up to 75 ft./min.
Compaction Area 6000 sq. ft./ hr.
Operating Weight 138 lbs.
