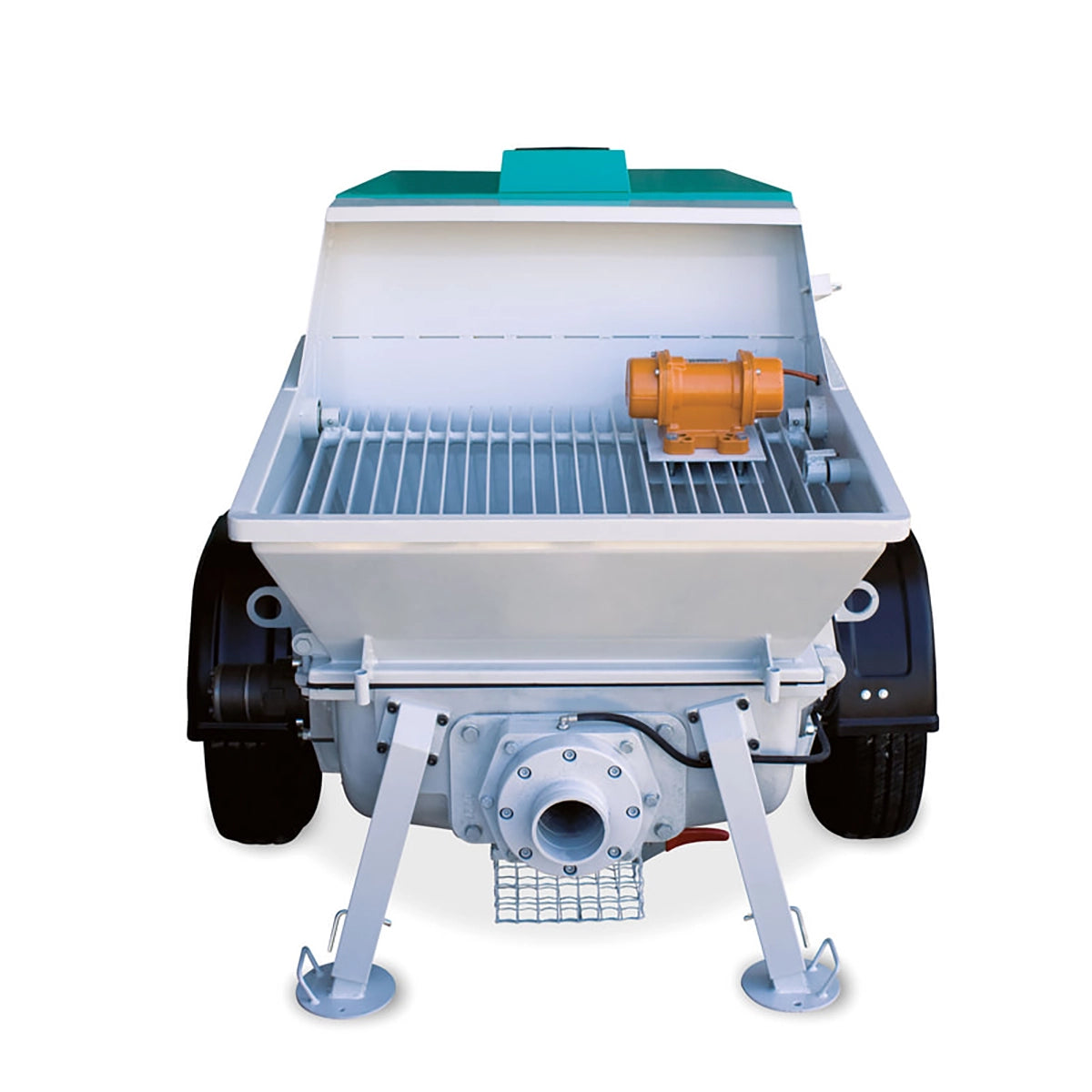

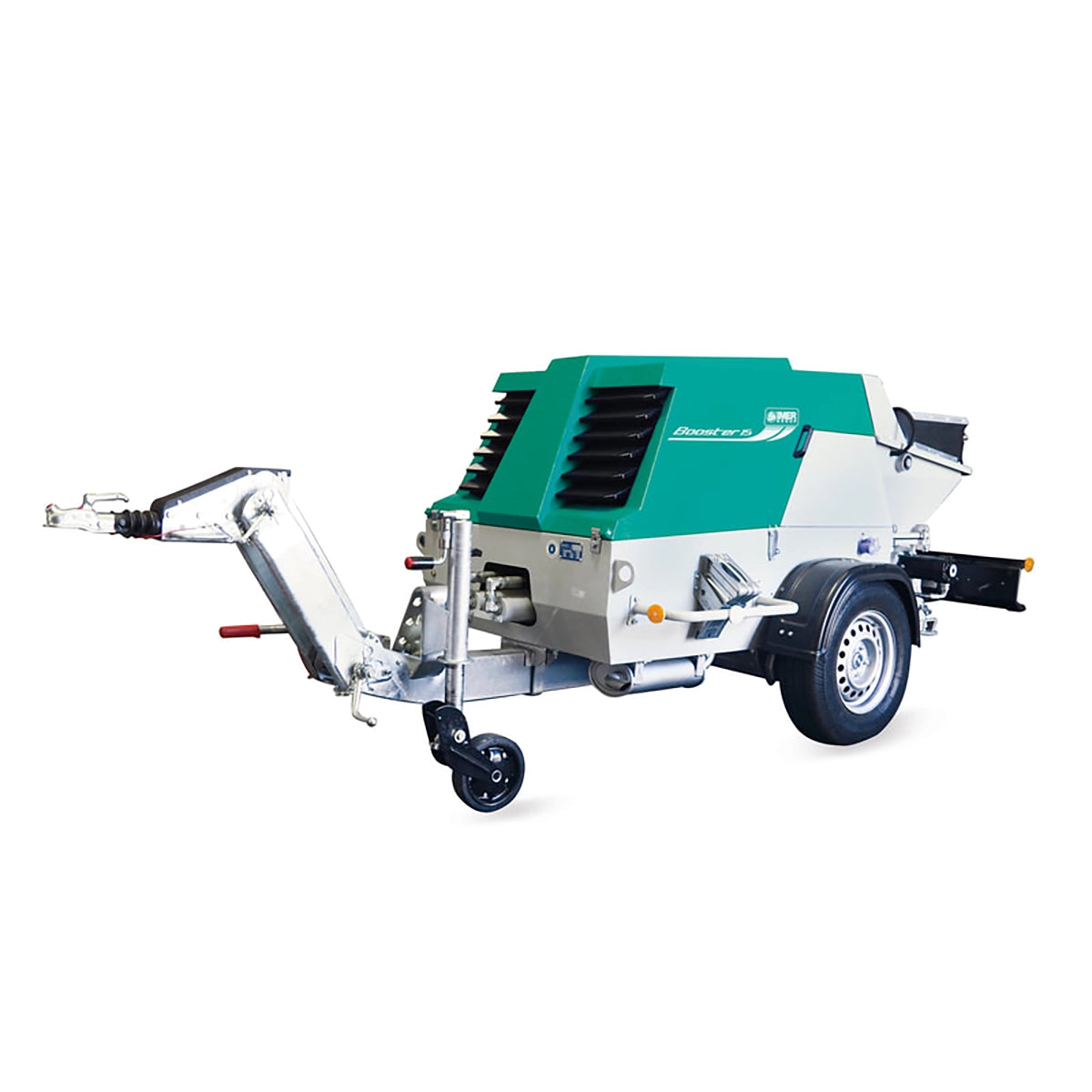

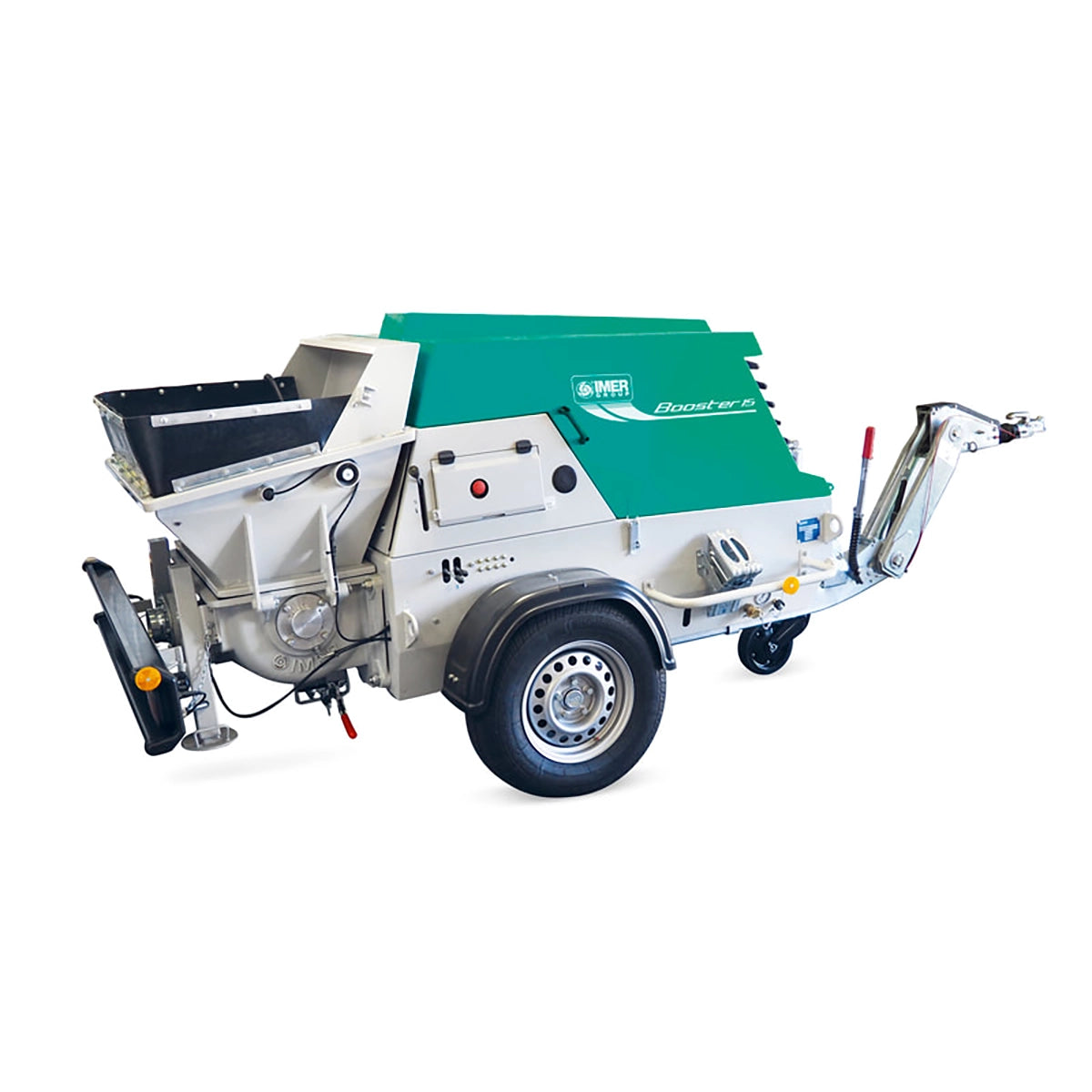

Imer Booster 20 Piston Pump
The Imer Booster 20 delivers high-performance output in a compact design, allowing it to work on job sites with limited space where no other pump of comparable capability could fit.
Features
- Its pumping unit utilizes an S valve for automatic compensation of clearance and wear
- Compact design for tight or space-limited job sites
- High-performance output despite small size
- Pumps up to 20 cubic yards per hour
- Handles concrete, shotcrete, and high-strength grouts
- 2-cylinder pumping system with hydraulic control
What's Included

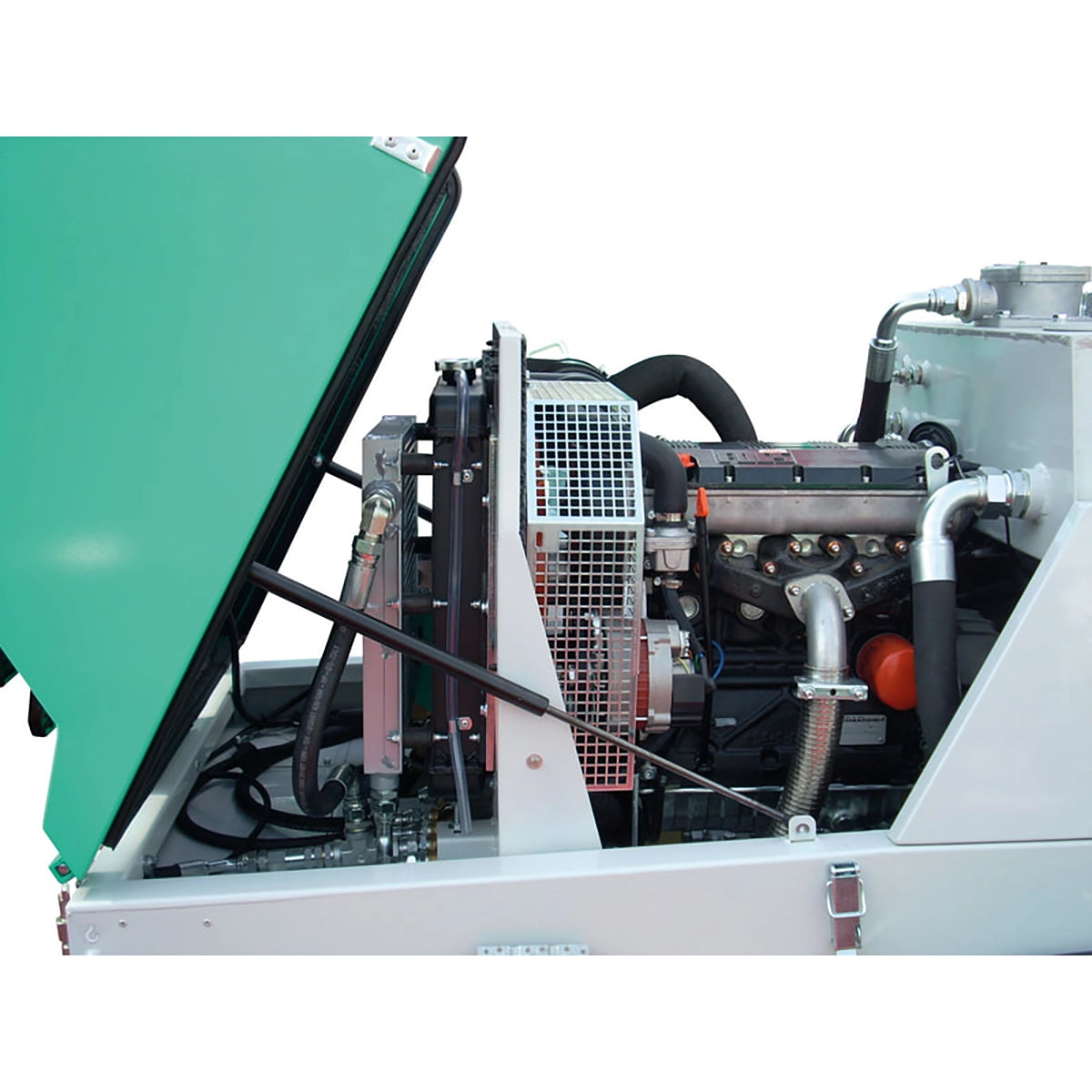

- 3-cylinder liquid-cooled, 28 HP diesel engine
- Automatic greasing system
- Concrete hopper with agitator
- Vibrating grid, 12V
- Hydraulic system with reverse
- Pumping unit with S-valve featuring automatic compensation for clearance and wear
- 4" heavy duty delivery manifold
- Control panel with electromechanical controls
- Piston head installation and extraction tool kit
- Complete w/ heavy duty highway tow package
- Accessory box with grease pump
- Centralized grease ports
- 4" cleaning balls
| Specifications | |
| Model # | 1106428 |
| Engine | 3 Cylinder Diesel |
| Engine Power | 28 HP |
| Pumping System | 2-Cylinder w/ Hydraulic Control |
| Max Aggregate | 1 in |
| Flow Rate | 3 - 20 cu yd/hr |
| Pumping Pressure | 1,000 psi |
| Outlet | 4 in HD |
| Hopper Capacity | 7 cu ft |
| Loading Height | 42.5 in |
| Dimensions (W x L x H) | 58 in x 161 in x 60 in |
| Weight | 3,100 lbs |
