Carriage Tray for Husqvarna, Target & Felker Tile Saws

$31066 USD
Shipping calculated at checkout.
Brand: Husqvarna | SKU: 542203056 | MPN:

Shipping & Delivery
  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

Carriage Tray for Husqvarna, Target Felker Tile Saws

Features

  • Rip guide sold separately

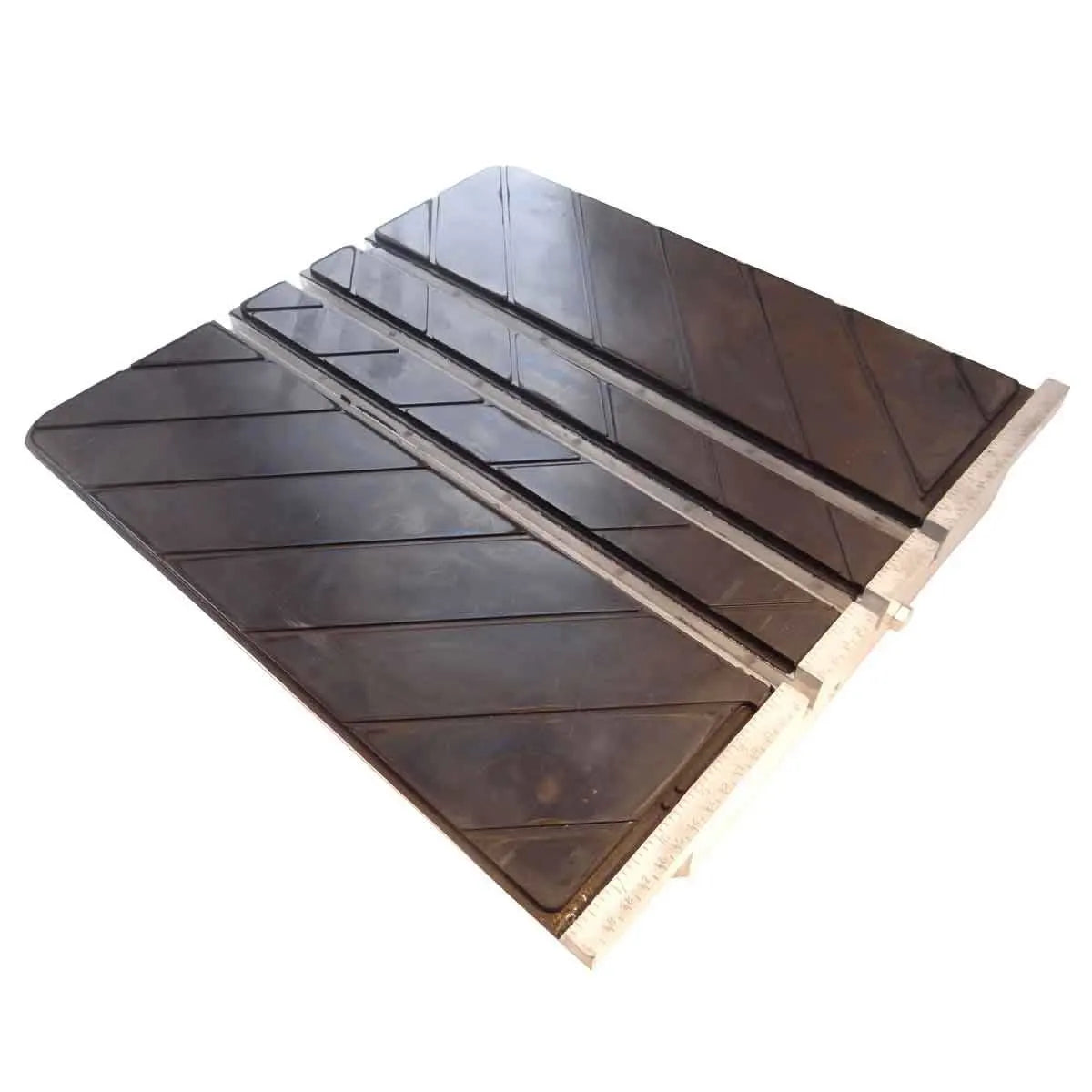

  • Die-cast aluminum table with rubberized work surface and draining channels
  • Dimension: 17-1/4" x 16"
  • Wheel-to-wheel measurement (from center): 11-3/4"
  • Smooth-rolling, large conveyor carts with metal wheels maintain high precision with fewer parts and less wear
  • 5 stars: 1 (50%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 1 (50%)
  • 1 star: 0 (0%)
A
Andrew T.
Adjustable wheels

to the guy that wrote the previous review: the wheels that are off center are adjustable wheels.. they go on one side and the fixed wheels go on the other. You use an allen wrench in the center to hold the offset where it needs to be to make the table level and while holding with the allen wrench tighten the nut with a wrench.

T
Tim N.
A coupl of issues

Bought this tray table to replace the original, much smaller table on my Felker Tilemaster. Very happy with the larger size, but the valley where the blade passes through is much wider than the old tray. I do a lot of shower pans, and sheet mosaics tend to bind up and stop the blade a lot more than the original table, and marble tends to lose a lot more corners than the previous one, especially when cutting on a diagonal. Other than that, it's built solid and works well in supporting the larger tile. Also, for some reason, when I opened the box, I noticed only 2 of the 4 wheels were mounted to the tray, and the other 2 were laying at the bottom of the box along with the nuts and bolts. No big deal, but when I attempted to mount them, I noticed they were a little different than the ones that were on the tray....and different in color. Still no biggie, but after I mounted them I noticed my table had a slight 16th of an inch rock to it. After further examination, I noticed that the bolt holes in the unmounted wheels were off center! I wound up having to take all 4 wheels off and rearrange and twist them just so, (more than once) to get it to stop rocking. And even today, it's still not perfect. Not something I would expect to have to deal with on brand new equipment.

n
n/a

Will it fit a felker tile master?

Contractors D.

Yes, this carriage tray will fit the Felker Tilemaster tile saw. The rails may need to be adjusted to properly fit the carriage tray. Wheel to wheel measurement (from center): 11-3/4"

A
Anonymous

The 2 nylon rollers near the backstop of the tray are not touching the rails. What are these wheels for?

Contractors D.

When making large cuts the carriage tray hangs over the edge of the water pan. The nylon wheels prevent the carriage tray from catching on the water pan.

A
Anonymous

One of the wheels on my carriage tray is not all touching the rails. Is my tray defective?

Contractors D.

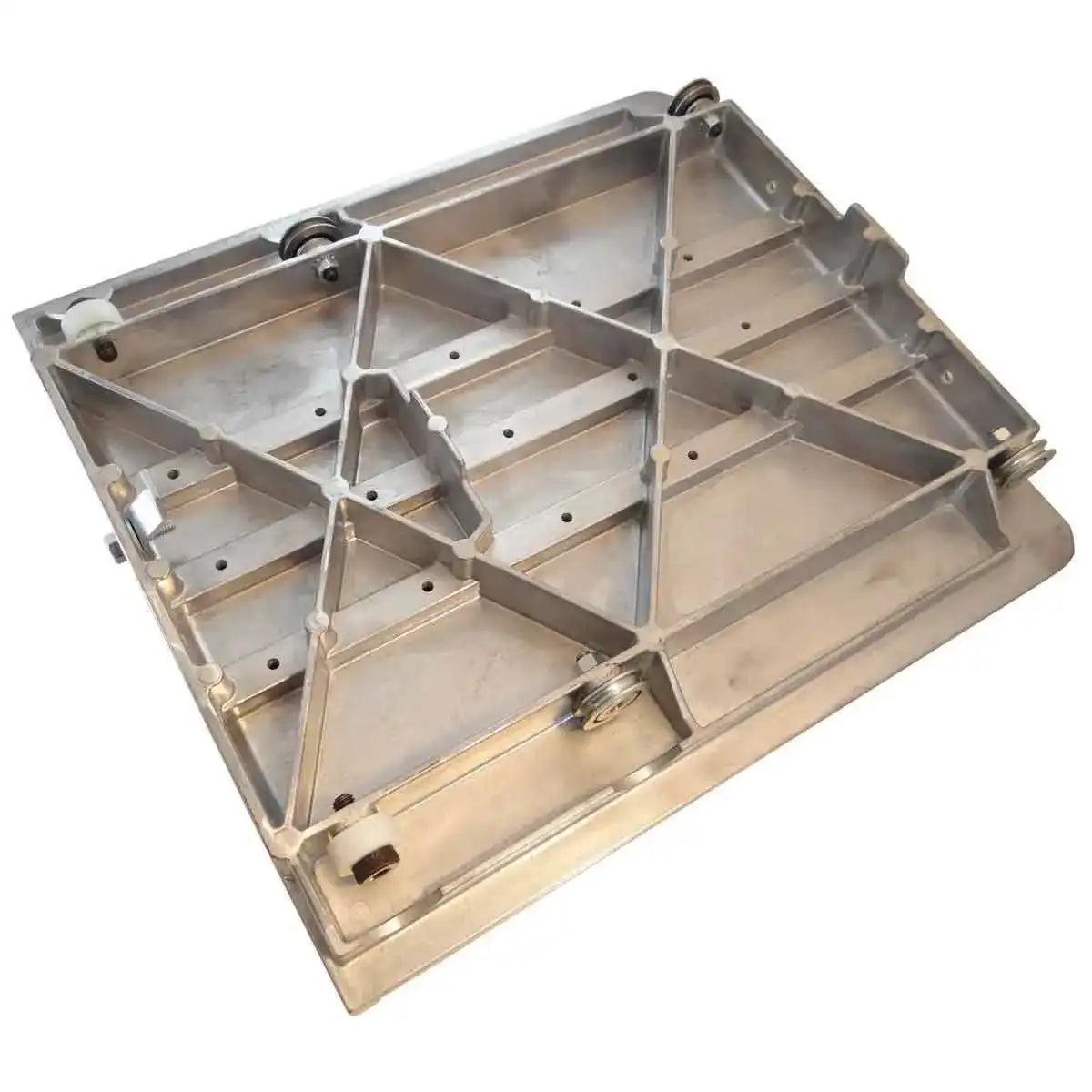

No, there are 2 different types of wheels on the tray. 2 wheels with black bolts that are centered and 2 wheels with gold bolts that are offset. This allows the Husqvarna carriage tray to be adjusted up and down. The purpose of this is to make the carriage tray perpendicular (90 degrees) to the tray. If one wheel is off the rail simple loosen the bolt on the wheel and spin the bolt to adjust the height of the wheel.
