Can I use an 18 inch core bit in this product?

This core drill can use core bits up to 6" 153mm in diameter.

1 6

Husqvarna DMS 180 Core Drill Rig

Name: Husqvarna DMS 180 Core Drill Rig
Brand: Husqvarna
SKU: 966916101
Price: 1669.0 USD
Availability: InStock

$1,669⁰⁰ USD

Shipping calculated at checkout.

Brand: Husqvarna | SKU: 966916101 | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

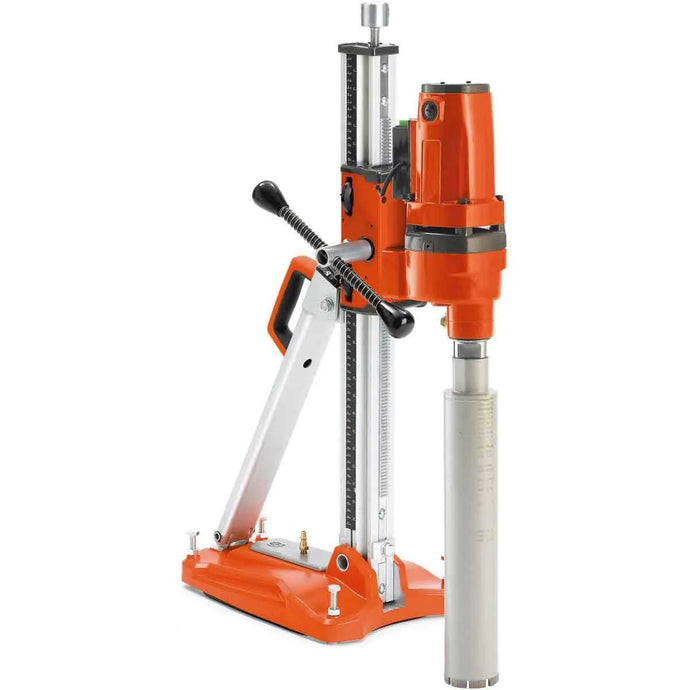

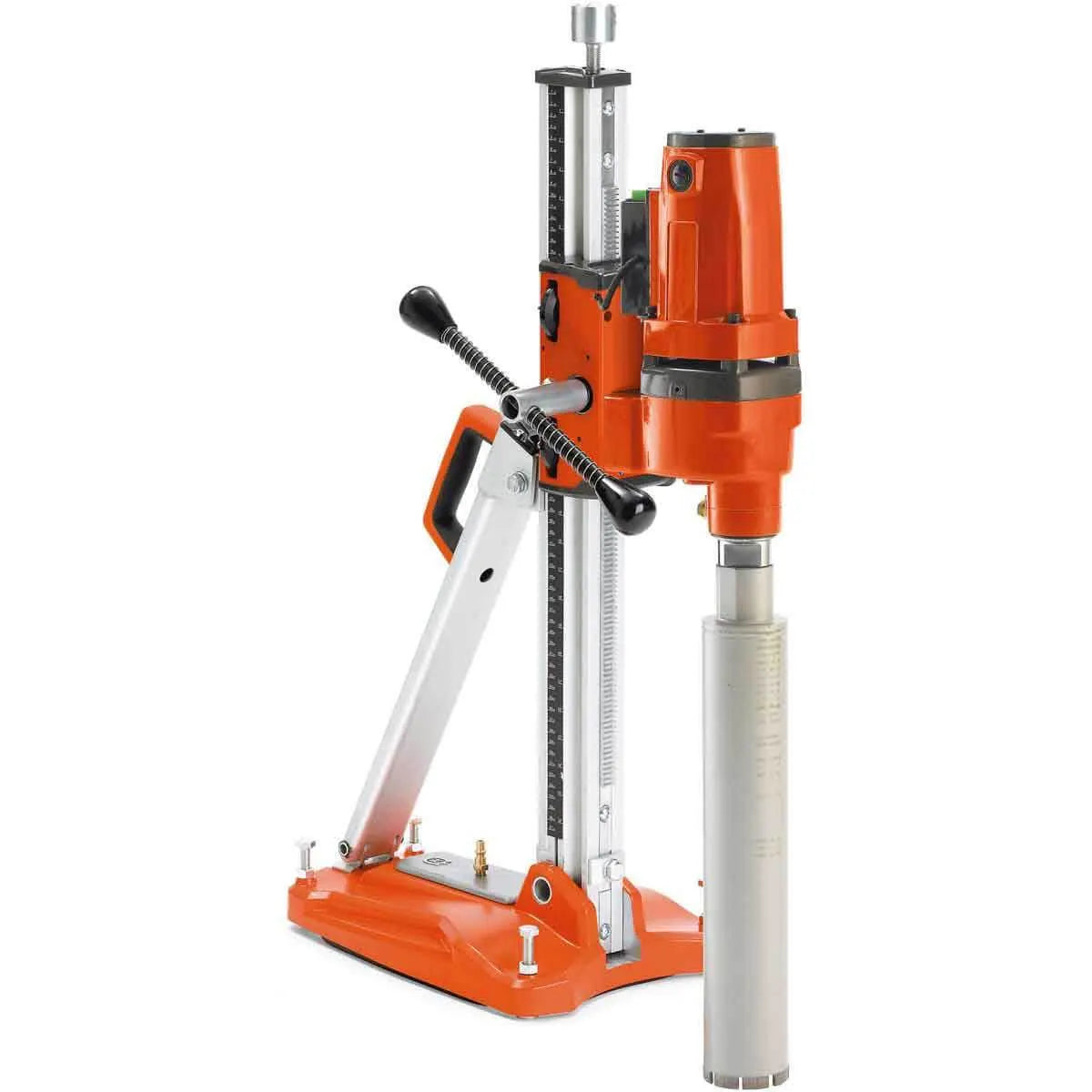

Husqvarna DMS 180 Core Drill Rig

The Husqvarna DMS 180 is a lightweight core drill rig for the rental shop or professional who requires high performance in a compact machine.

Features

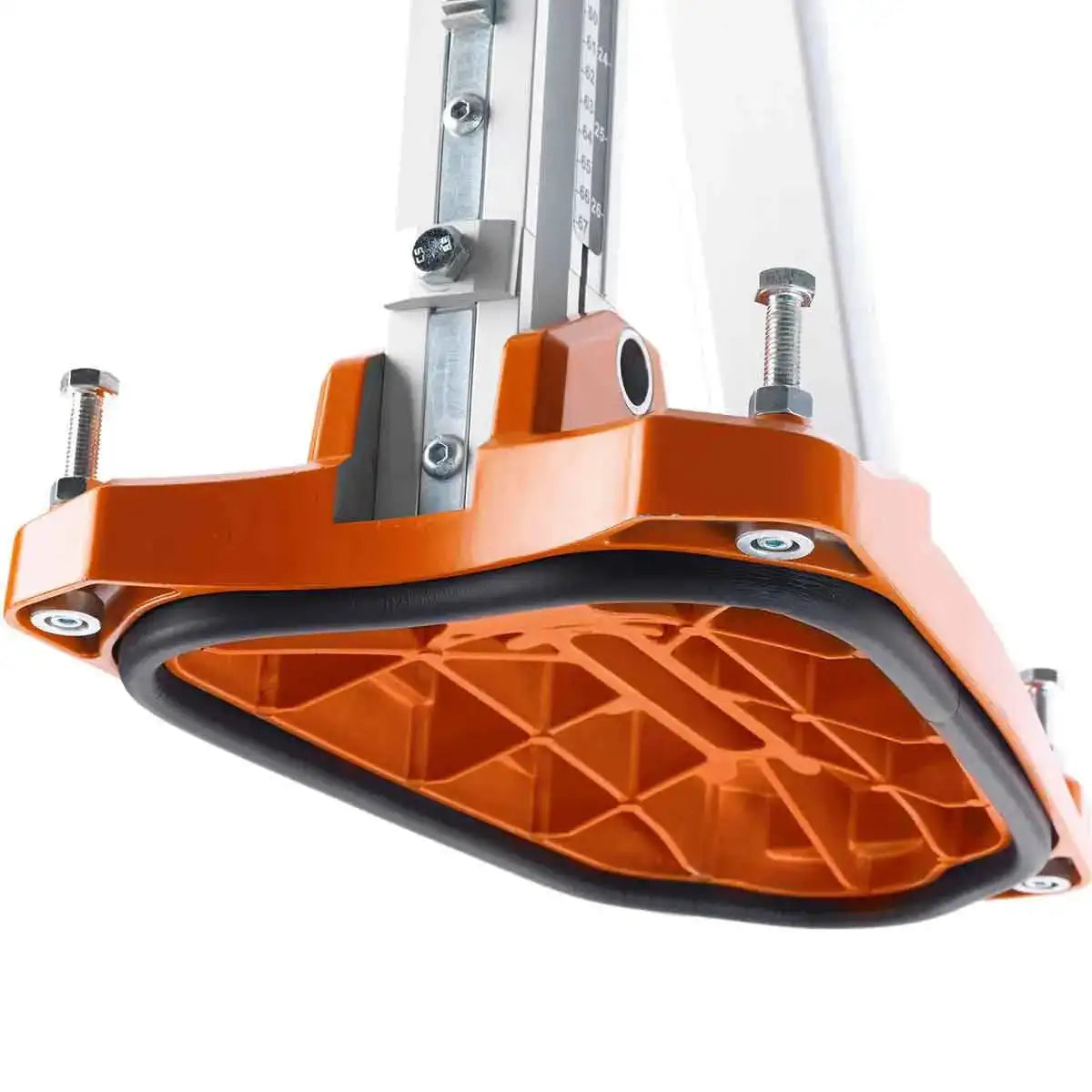

It comes standard with a combination vacuum/anchor base
Vacuum sold separately
The stand can be tilted from 0 to 45 degrees for angle drilling
Designed to fit most hand-held core drill motors

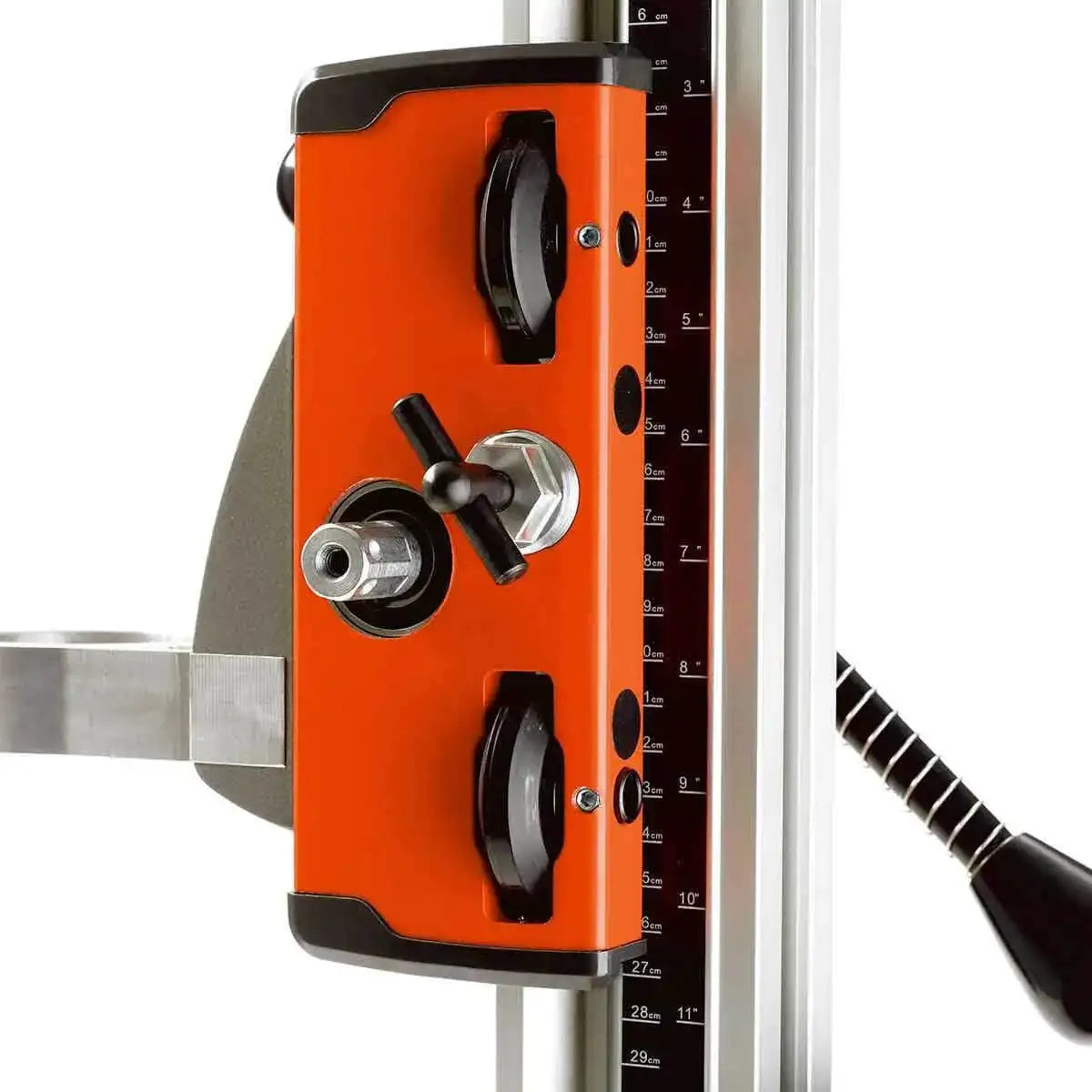

V-groove roller carriage allows for accurate alignment that requires minimal adjustment
Drill holes up to 6" (153mm) in diameter
19" drilling stroke
1,725 watts/15 amp motor with an 800 rpm single-speed gearbox and electric overload protection
Mechanical clutch reduces the risk of motor damage

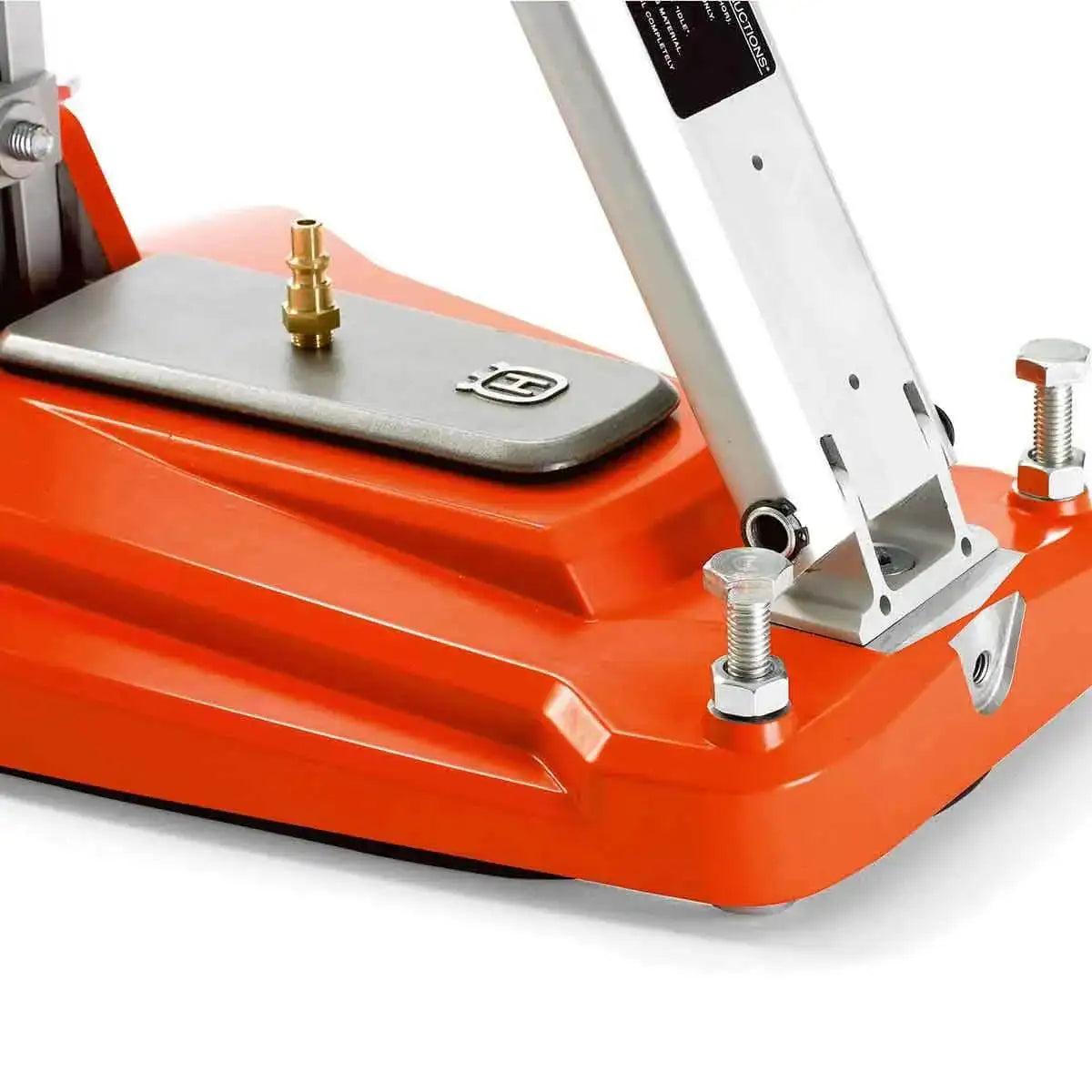

Base Material Cast aluminum, 4 leveling screws

Benefits

Light and compact, it is easy to transport and mount the stand
Fast set-up with the integrated vacuum base eliminates anchoring or clamping
Equipped with stabilizing guide rollers for accurate drilling as well as cleaner, straighter holes
The back support is clamped to the column with a rigid patented locking system, stabilizing operations
Adjustment screws on the base plate, carriage, and back support can be adjusted with the feed handle
The stand has a jacking screw on the top for easy clamping of the stand

Husqvarna DMS 180 Core Drill Rig Specifications
Motor	Single Phase, Electric
Power	2.3 hp/ 1,700 W/ 15 amps
Voltage	115 V
Bit Capacity	6 inch
Travel Length	19 inch
Connection	1-1/4"-7 thread
Weight	51 lbs

Product Manuals

Manual

Parts

Additional Info

5 stars: 0 (0%)
4 stars: 1 (100%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Very good with one flaw

The unit is very good except the clamp that holds the rig at the correct drilling angle is not good. You need to tighten up the clamp bolt extreamly tight so that the angle will not drift off 90 degrees while drilling for example. Needs a better calmping system.

Is there a water supply pump available for the Husqvarna DMS 180? Thank you.

Contractors D.

Yes, the 536089802 - Husqvarna Pressurized Water Tank

Can this drill handle 1-3/4" boring up to 4 or 5ft through onyx, granite, travertine, etc.?

Contractors D.

The DMS 180 can accept core bits up to 6" in diameter and has a travel length of 19 inches on the stand. The depth at which you will need to drill will depend a lot on the core bit and extensions you are using. The machine will be able to handle the 1-3/4 inch bit but you will need to research the bit that will allow a core travel for the depth you require for the material you are cutting through.

Is this removable from the rig, for hand drilling applications?

Contractors D.

For hand-held core drill options, view the DM220 or DM230.
