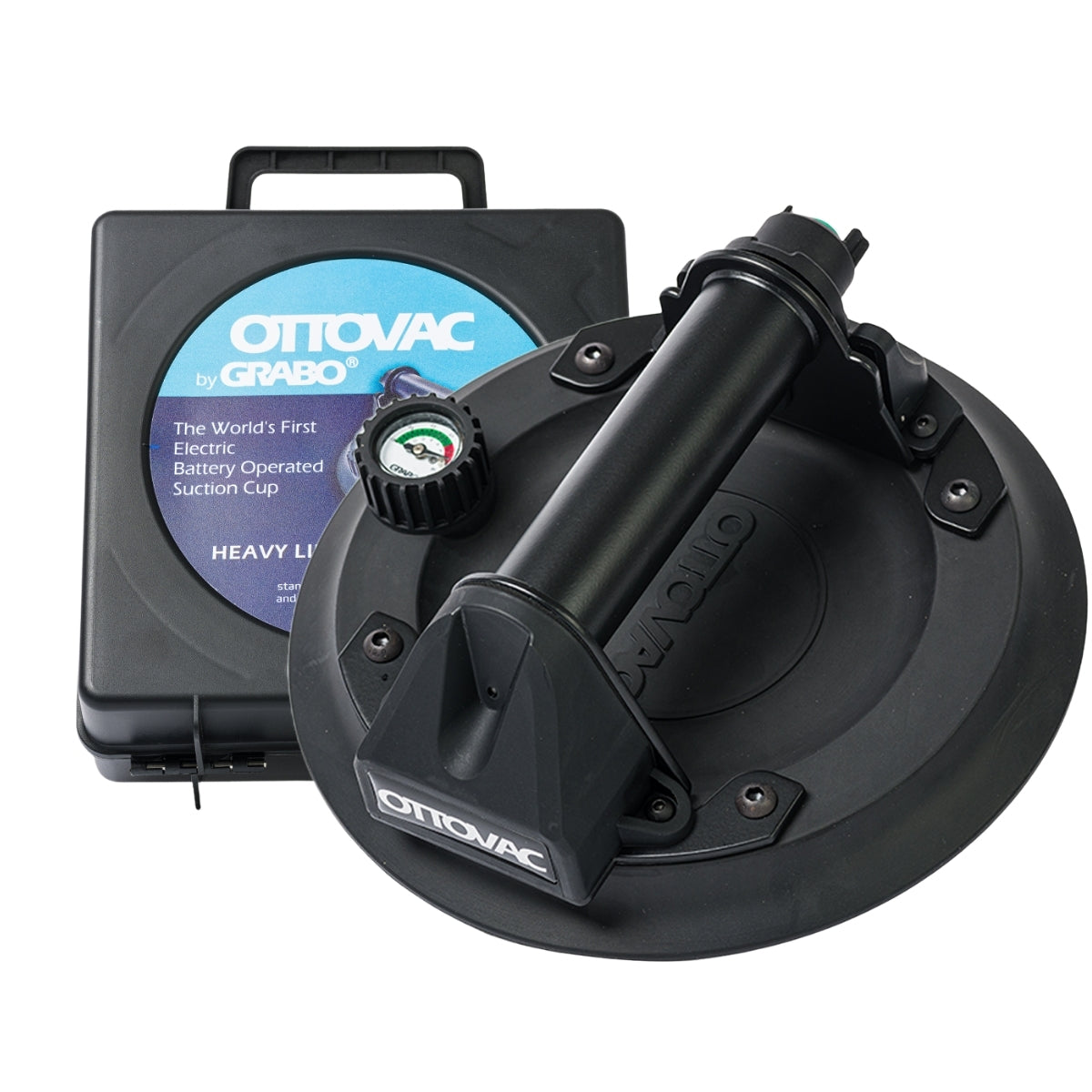

Grabo OTTOVAC Electric Suction Cup

The world's first electric suction cup - heavy lifting made easy!

Features

  • Portable electric handheld vacuum suction cup
  • Intended to lift, move, and install glass or any other smooth, non-porous flat material
  • Test up to 440 lbs. (200kgs) at maximum lifting force (**under ideal conditions**)
  • Fully electric - works on 4-AA batteries
  • No manual pumping is required
  • Reliable and safe with an auto sensor for automatic suction engagement in the event of lost suction
  • When the vacuum in the base of the suction cup reaches -55 kPa, the pump will automatically stop after a three-second delay
  • When the vacuum level drops below -55 kPa, the pump will automatically restart, reaching the required pressure during operation
  • It is more versatile and has a higher holding capacity than any other traditional manual 8" suction cup
  • No more frustration from manual suction cups
  • Built-in pressure gauge
  • Take the guesswork out of single-hand-held suction cups
  • Batteries NOT included
GRABO OTTOVAC Specifications
Batteries Required Alkaline AA 1.5 V (x4)
Working Voltage 6V
Rated Power 6W
Running Cycles 1,500 ON-OFF cycles of 10 seconds
Pump Service Life 10,000 ON-OFF cycles, 800+ hours continuous
Rated Airflow 4 l/min
Maximum vacuum rate -0.7 bar (-70 kPa)
Maximum lifting capacity 400 lbs. (200 kg)
Working Temperature 32–140°F (0–60°C)
Dimensions LxWxH 200 mm x 200 mm x 90 mm
Weight 2.6 lbs. (1.2 kg)
