GRABO High-Flow Professional Suction Cup Tool Kit
$59999 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Grabo
| SKU: GHF-V1
| MPN:
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here

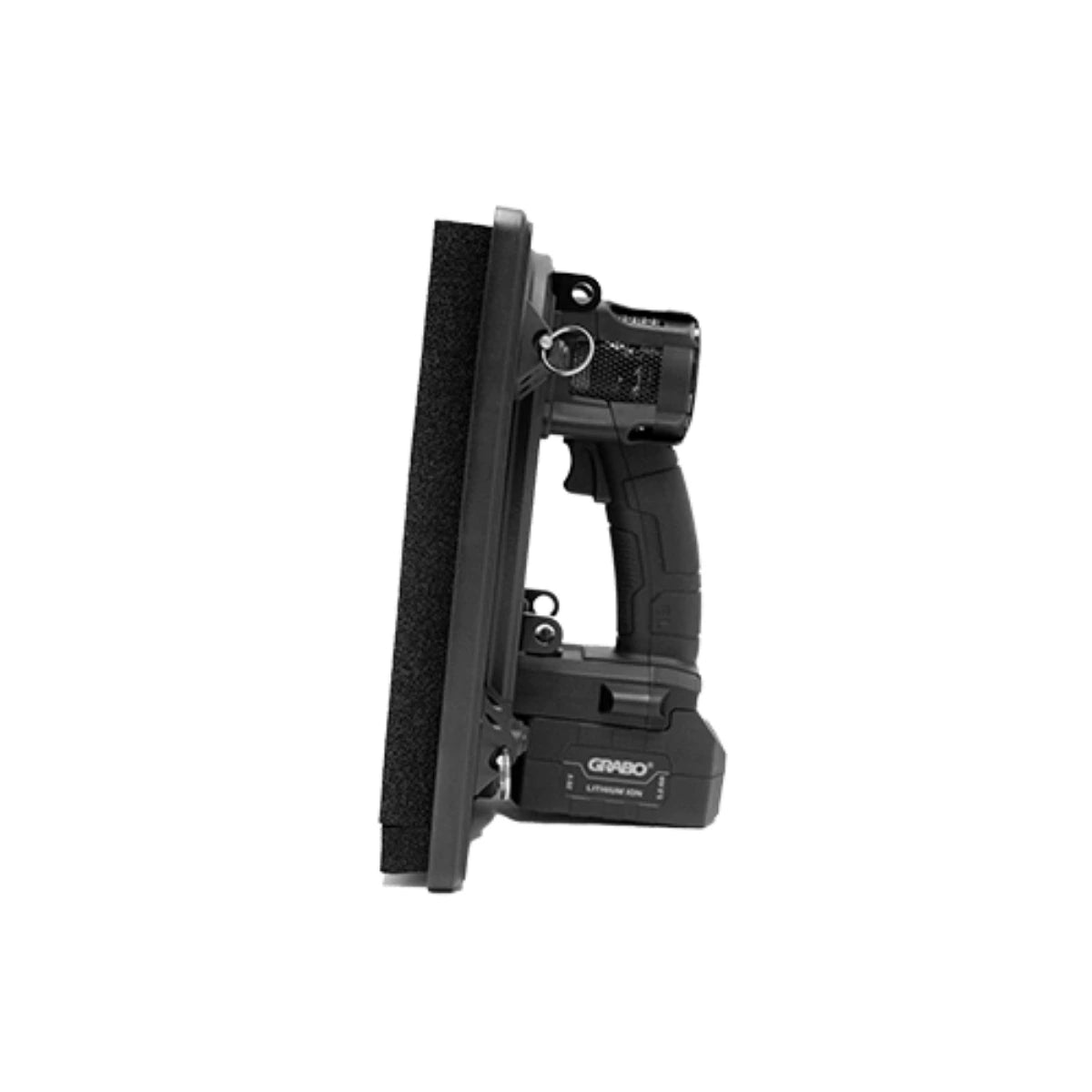

GRABO High-Flow Professional Suction Cup Tool Kit
Take on the most challenging, porous materials with the GRABO® High-Flow, the most powerful handheld vacuum lifter from GRABO®. With a high-flow vacuum system, advanced SMART CUT foam seal, and ergonomic T-handle design, it allows you to safely lift, move, and install heavy, textured, and extremely porous materials with precision and confidence.
*Must be shipped Ground - Cannot be expedited
Features
- Handles extremely porous and textured materials, including dry cast pavers
- High-flow vacuum with 1.5 m³/min airflow for maximum lifting power
- Lifts up to 242 lbs (100 kg) with large suction plate; 150 lbs (68 kg) with smaller 300 mm plate
- SMART CUT foam seal for optimal suction and grip

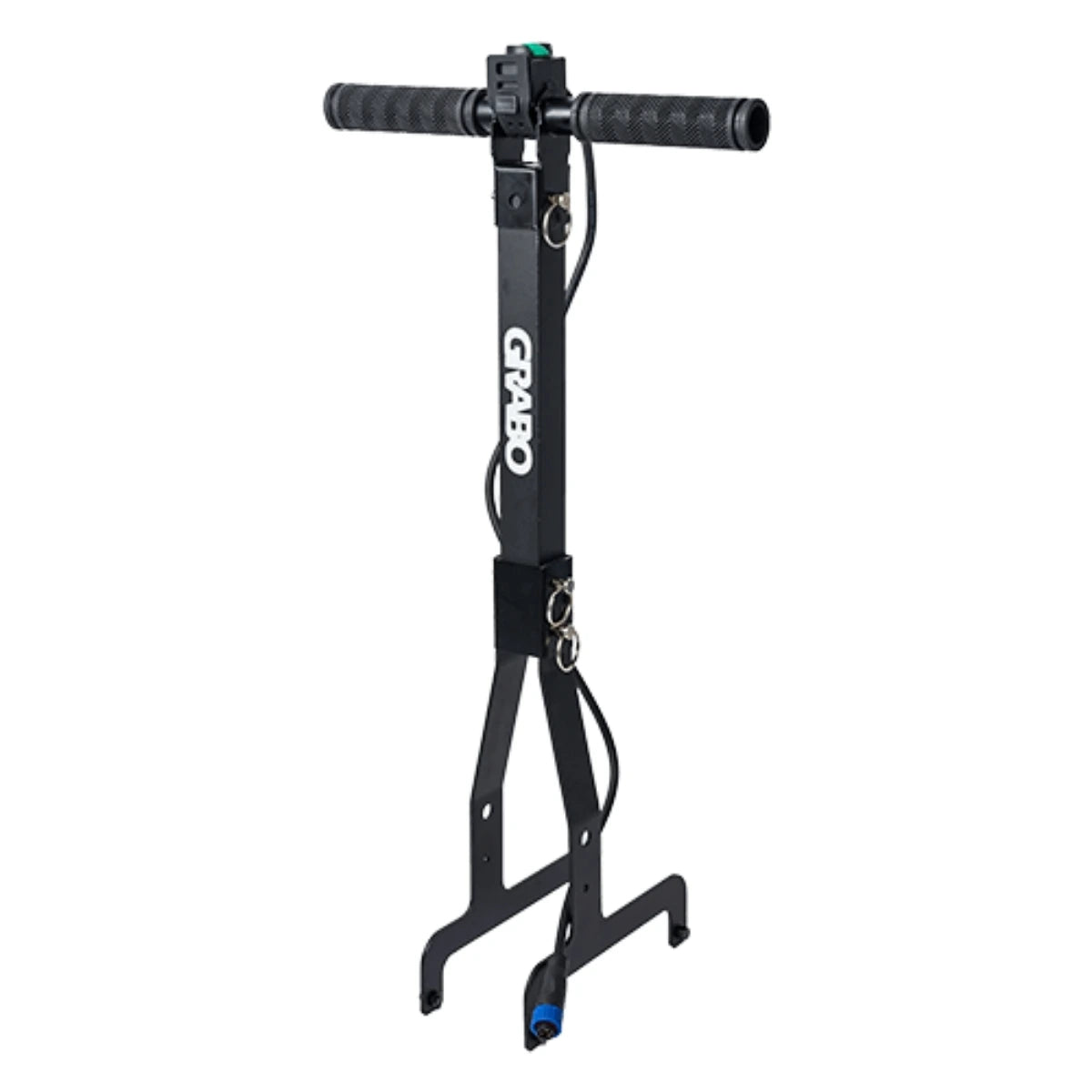

- Ergonomic T-bar handle with wired remote ON/OFF control

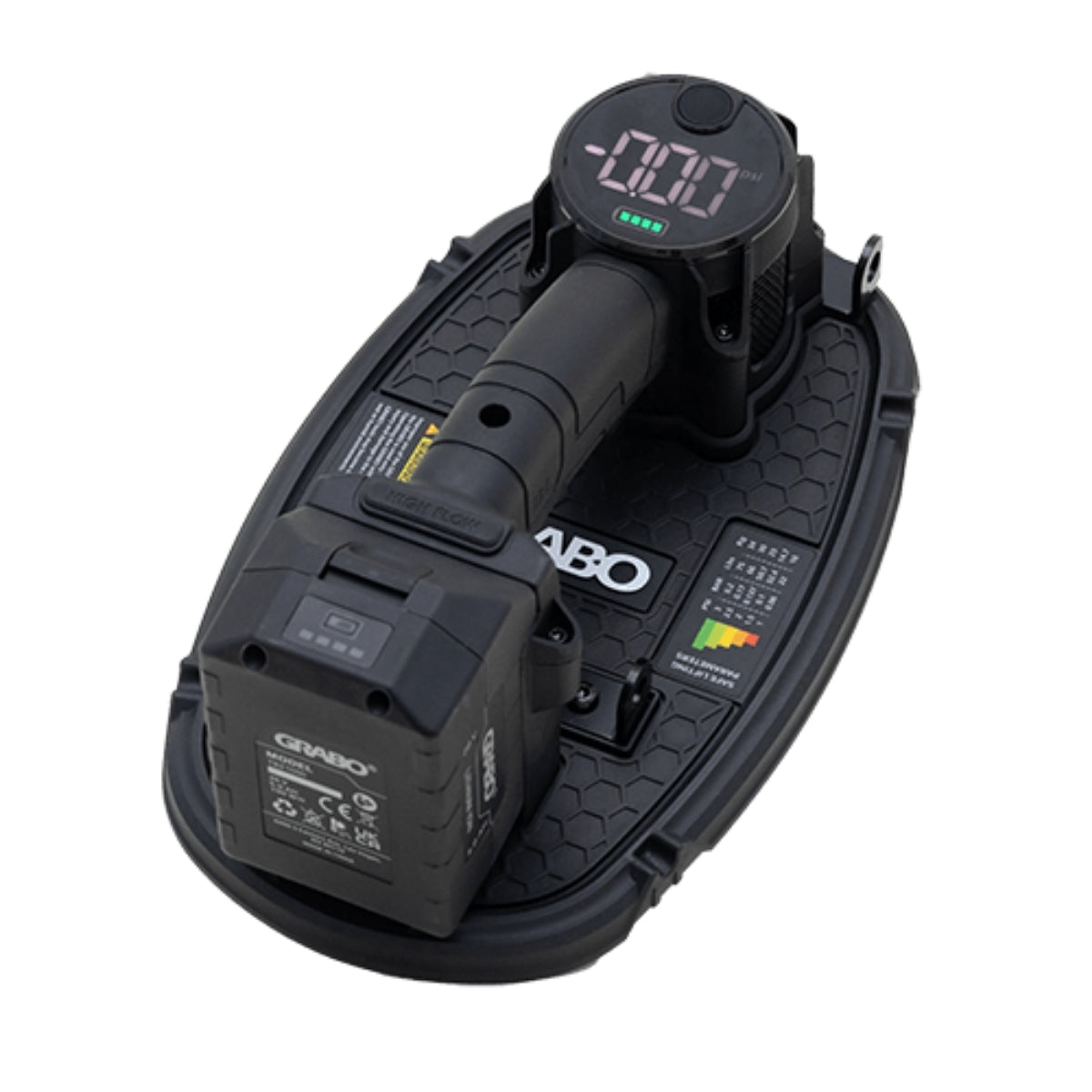

- Large LED display shows real-time PSI/BAR pressure
- Versatile suction plates: 300×300 mm and 400×400 mm

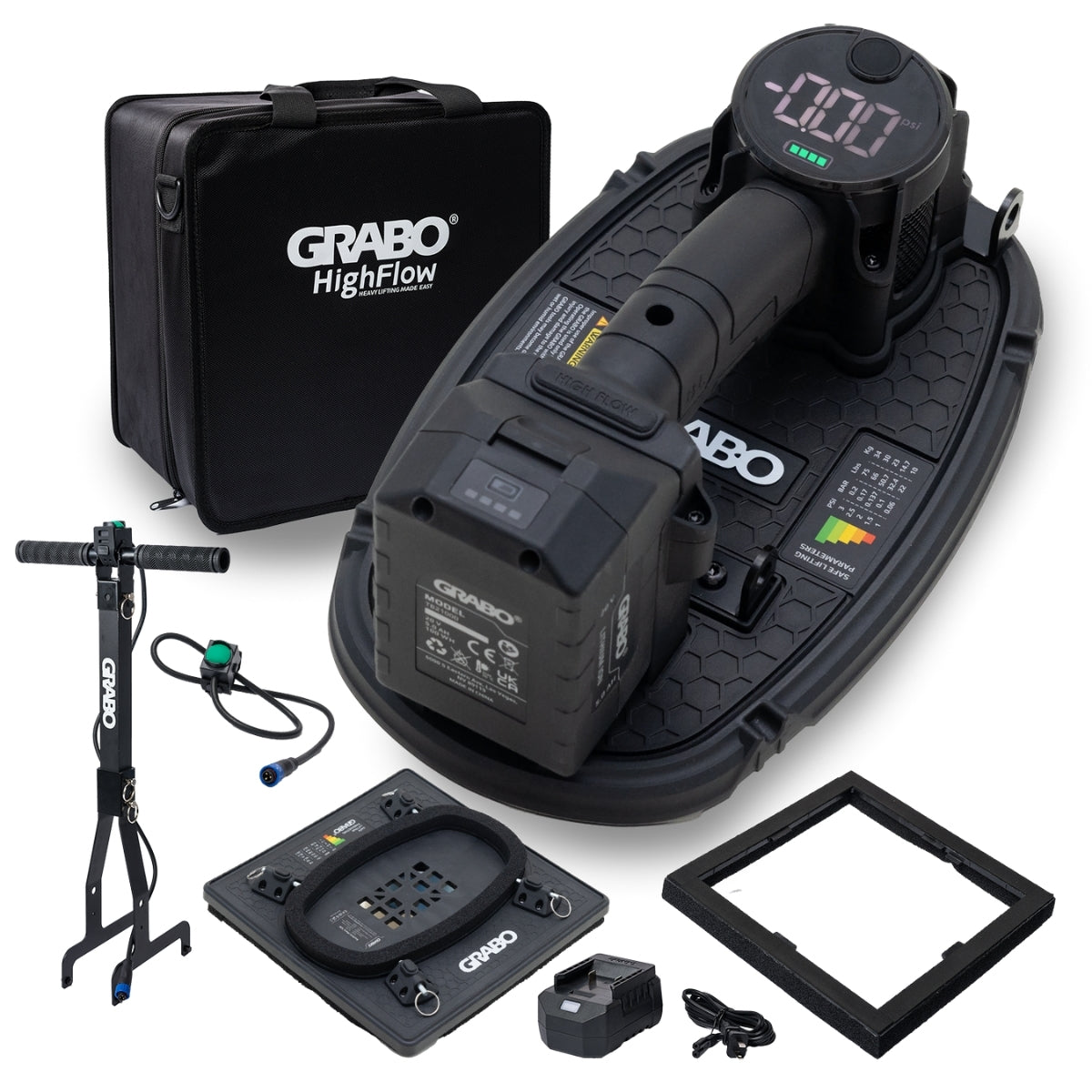

Kit Includes:
- GRABO High-Flow Tool
- Suction plate 300 with SMART CUT foam seal
- Two (2) GRABO HIGH FLOW batteries
- Battery charger
- T-Bar handle attachment with wired remote ON/OFF cable
- Spare SMART CUT foam seal 300
- Extra filter
- Operator’s manual
- HIGH FLOW canvas carrying case
Specifications
| Electric vacuum lifting device | GRABO® High-Flow |
| Dimensions |
300 x 184 x 148 mm / 11.8 x 7.2 x 5.8 inches |
| Net weight (with the 300*300 add-on and battery) | 2.9 kg / 6.4lbs |
| A-weighted sound pressure level* | LpA=79.4 dB(A), uncertainty K=3 dB(A) |
| A-weighted sound power level* | LwA=71.4 dB(A), uncertainty K=3 dB(A) |
| Vibration total value** | 1.240 m/s2, uncertainty K=0.11 m/s2 |
| Rated power | 160 W |
| Maximum vacuum rate | -0.20 Bar (-20 kPa) |
| Additional Components | Dimensions |
| Suction Plate 300 Dimensions | 316 x 316 x 17.3 mm |
| Suction Plate 400 (not included) Dimensions | 416 x 416 x 17.3 mm |
Battery
| Battery type | Model TB21000 |
| Battery rated capacity | 5.0 Ah |
| Nominal voltage/charge voltage | 18 V / 21 V |
| Charge current | 4 A |
| Working time (full charge) | 30 mins |
| Operating temperature | 32 – 115°F (0 – 45°C ) Charge -4 – 140°F (-20 – 60°C ) Discharge |
| Long-term battery storage (> 3 months) | 0°C – 30°C / 32°F – 86°F charged to 18.5–19.5V (80–90% of full charge) |

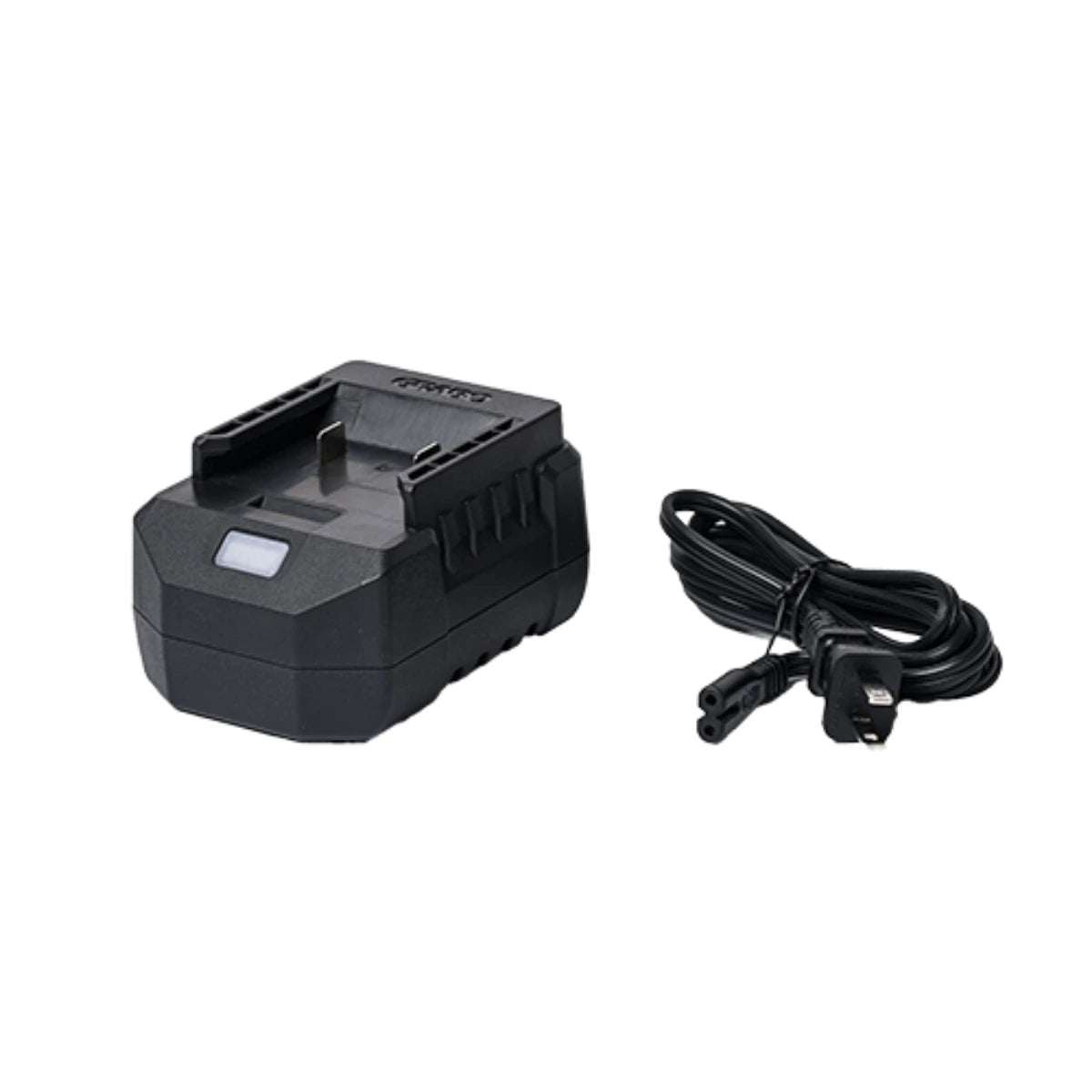

Battery Charger
| Charging output voltage | 21 V |
| Charging output current | 3.6-4.4 A underload, 4.5 A max |
| Overcharge protection | 4.25 V |
| Charging input | 100 – 240 V AC; 50/60 Hz; 2A max. |
| Rated power | 84W |
| Operating temperature | 0°C – 40°C / 32°F – 104°F |
| Storage temperature | -10°C – 75°C / 14°F – 167°F |
| Working conditions | Indoor use only; not waterproof (IP0) |
