Diamax Cyclone Ultra Mesh Turbo Blade

$2903 USD
Shipping calculated at checkout.
Brand: Diamax | SKU: 6294-4 in | MPN:
Blade Sizes

Shipping & Delivery

  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

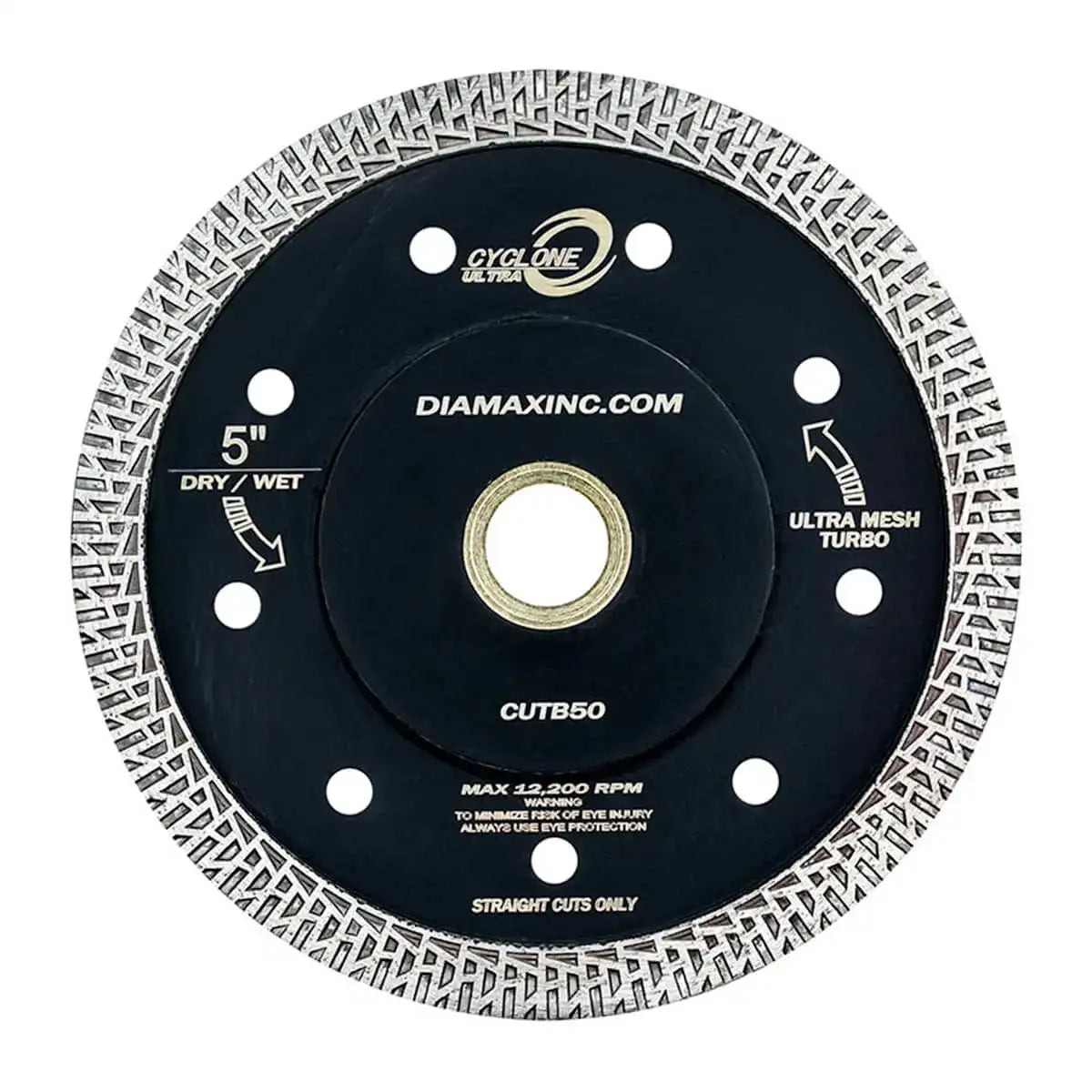

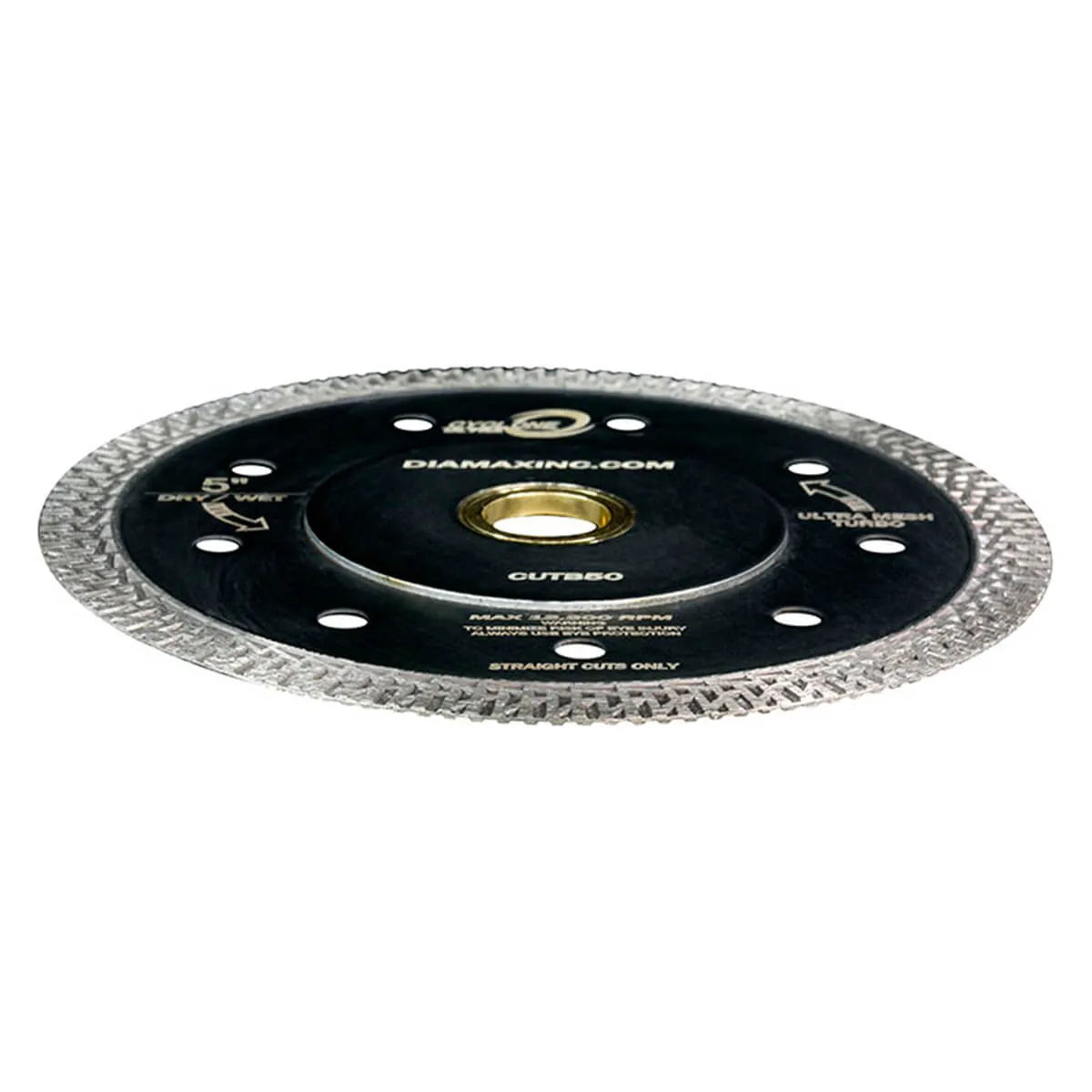

Diamax Cyclone Ultra Mesh Turbo Blade

Diamax has introduced a new addition to its already stellar Cyclone line-up. The Cyclone Ultra Mesh Turbo Blade is ideal for cutting ultra-compact and hard materials quickly while minimizing tile chipping, thanks to its unique turbo mesh design.


Features

  • Ultra-thin rim assures a fast, clean-cut
  • Turbo mesh design allows for optimal cooling
  • Center hub reinforcement keeps the blade cutting straight
  • For use with angle grinders and hand-held tile saws
  • Able to cut granite, engineered stone, marble, porcelain, quartzite, and ultra-compact tiles such as Dekton or Neolith
  • These blades are designed for wet or dry cutting


Diamax Cyclone Ultra Mesh Diamond Blade Specifications
Model CUTB40 CUTB45 CUTB50 CUTB70 CUTB10
Blade Size 4" 4-1/2" 5" 7" 10"
Rim Height 10 mm 10 mm 10 mm 10 mm 10 mm
Arbor 5/8" – 7/8" – 20 mm 5/8" – 7/8" – 20 mm 5/8" – 7/8" – 20 mm 5/8" – DKO 5/8" – 7/8" – 1"
RPM 13,200 13,200 12,200 8,600 6,100
Kerf 0.047" 0.047" 0.047" 0.055" 0.063"


Material Performance
Ceramic Good
Porcelain Excellent
Marble Good
Granite Good
Hard Granite Good
Glass Not Recommended
