Diamax Cyclone Porcelain Tile Turbo Diamond Blade | 4"
$2300 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Diamax
| SKU: 6094-4 in
| MPN:
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here

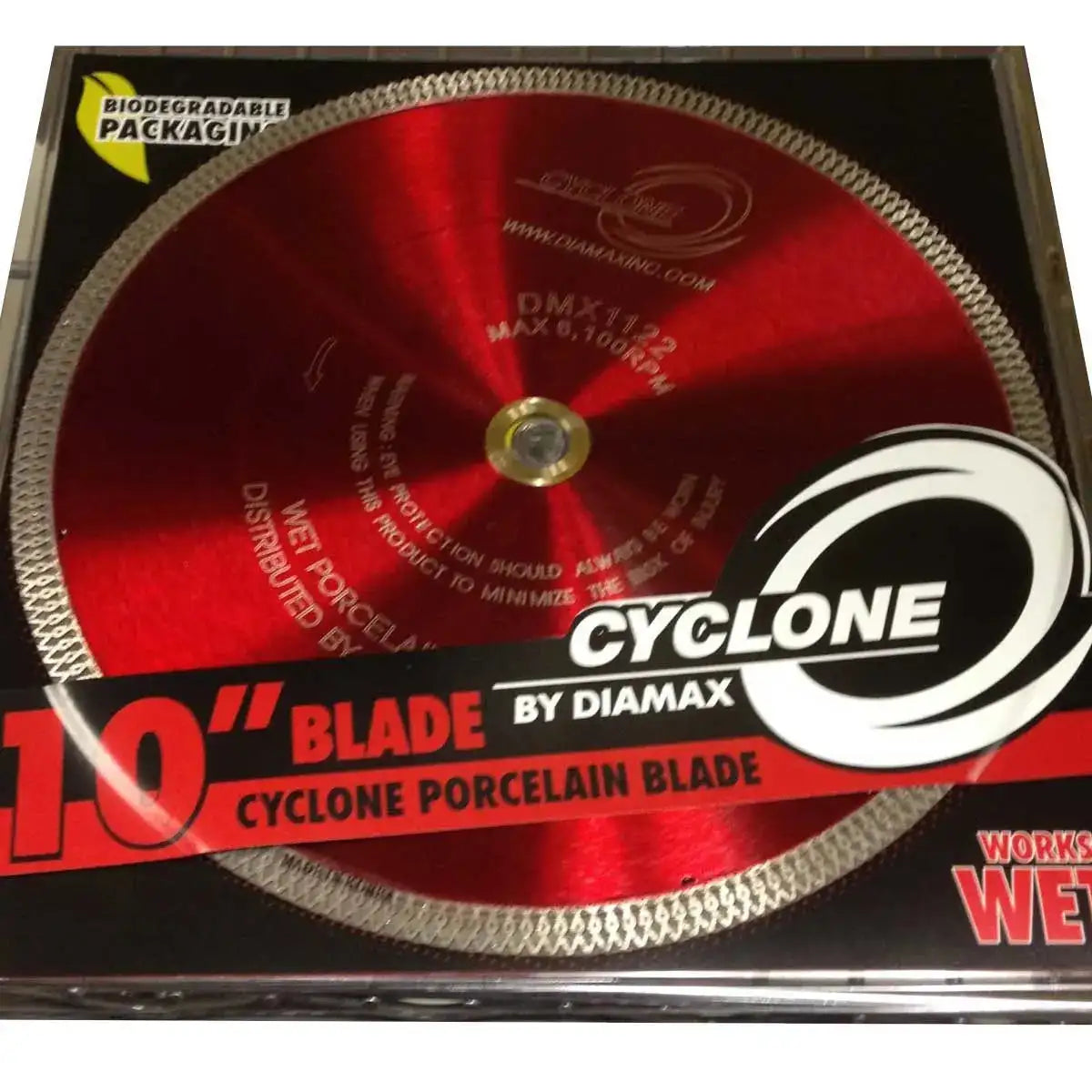

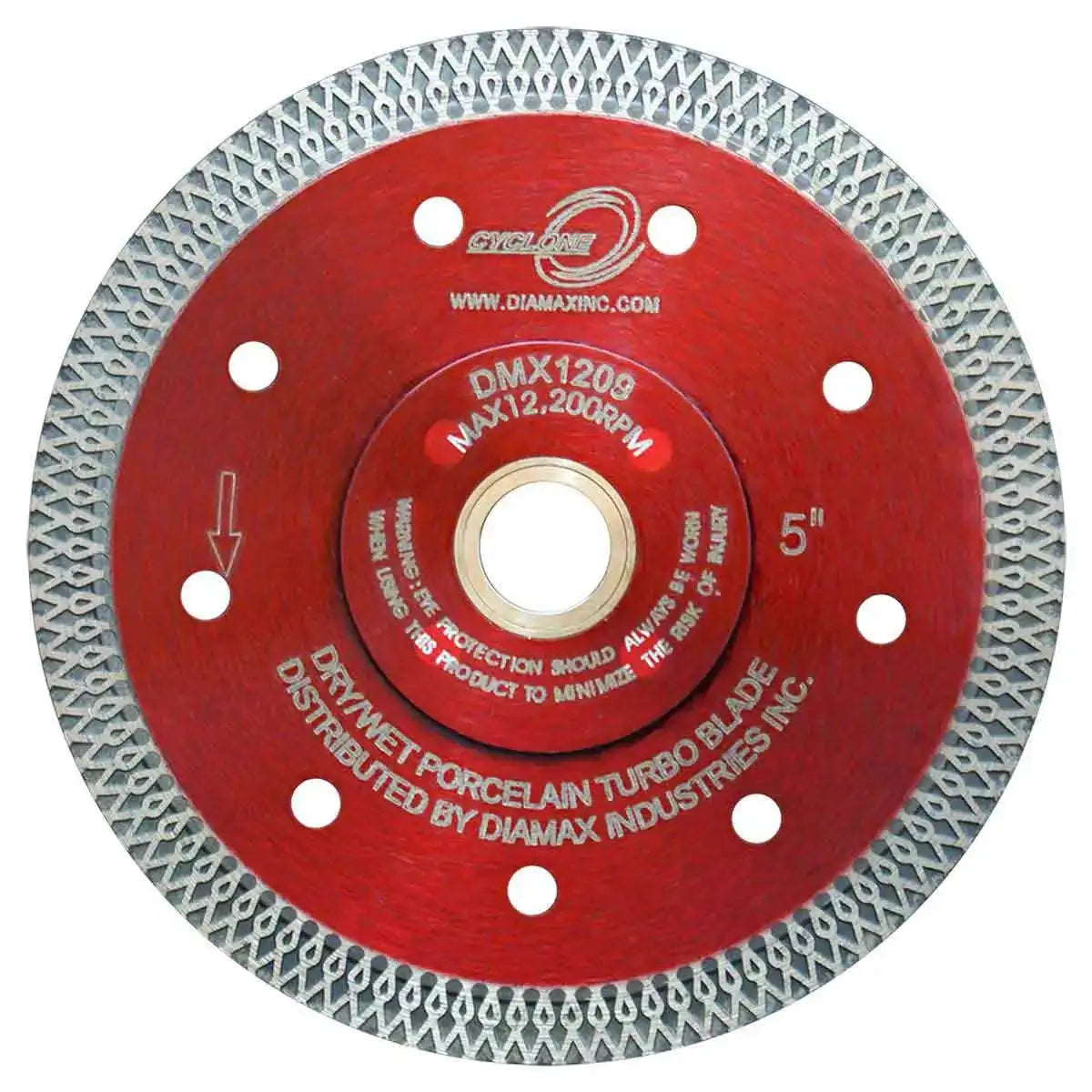

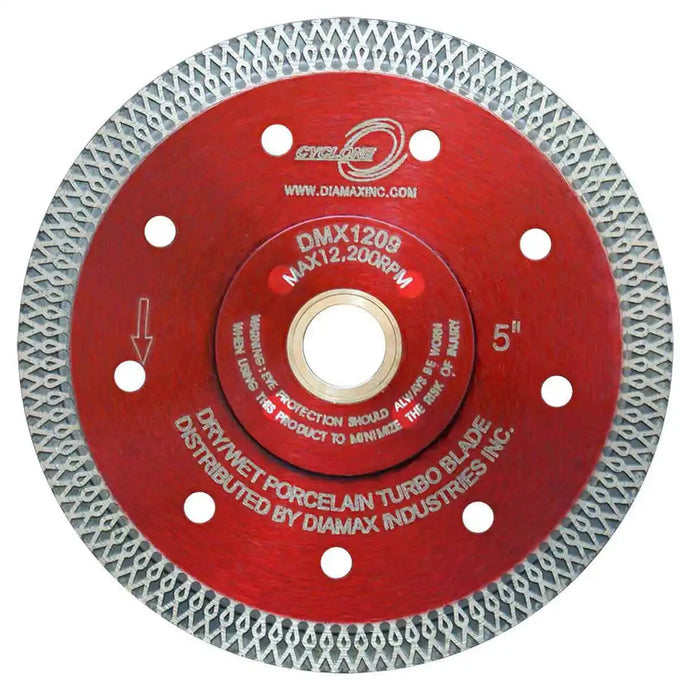

Diamax Cyclone Porcelain Tile Turbo Diamond Blade
Dimple Style rim allows you to keep cutting dry while staying cool!
Features
- A dimple-style rim minimizes heat caused by friction
- Cooler rim temperatures increase the life and speed of your cut
- The new diamond bond makes this the best continuous rim ever
- It fits most standard handheld grinders and tile saws
- For fast and chip-free cutting of porcelain tile
- Minimize glazing
- These blades are designed for wet or dry cutting
Additional Information
- Don't drop and jam in the cut
- Don't leave it on the a grinder when not in use
- Don't grind and twist in the cut or side stress
- Inspect blades before each use for any damage
- Always leave the guard on a grinder
| Diamax Cyclone Diamond Blade Specifications | |||||
| Model | TBP40 | TBP45 | TBP50 | TBP70 | TBP100 |
| Blade Size | 4" | 4-1/2" | 5" | 7" | 10" |
| Rim Height | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Arbor | 5/8" - 7/8" - 20 mm | 5/8" - 7/8" - 20 mm | 5/8" - 7/8" - 20 mm | 5/8" – DKO | 1" - 7/8" - 5/8" |
| RPM | 15,200 | 13,200 | 12,200 | 8,600 | 6,100 |
| Kerf | 0.047" | 0.047" | 0.047" | 0.055" | 0.063" |
| Material | Performance |
| Ceramic | Excellent |
| Porcelain | Excellent |
| Marble | Not Recommended |
| Granite | Good |
| Hard Granite | Good |
| Glass | Not Recommended |
