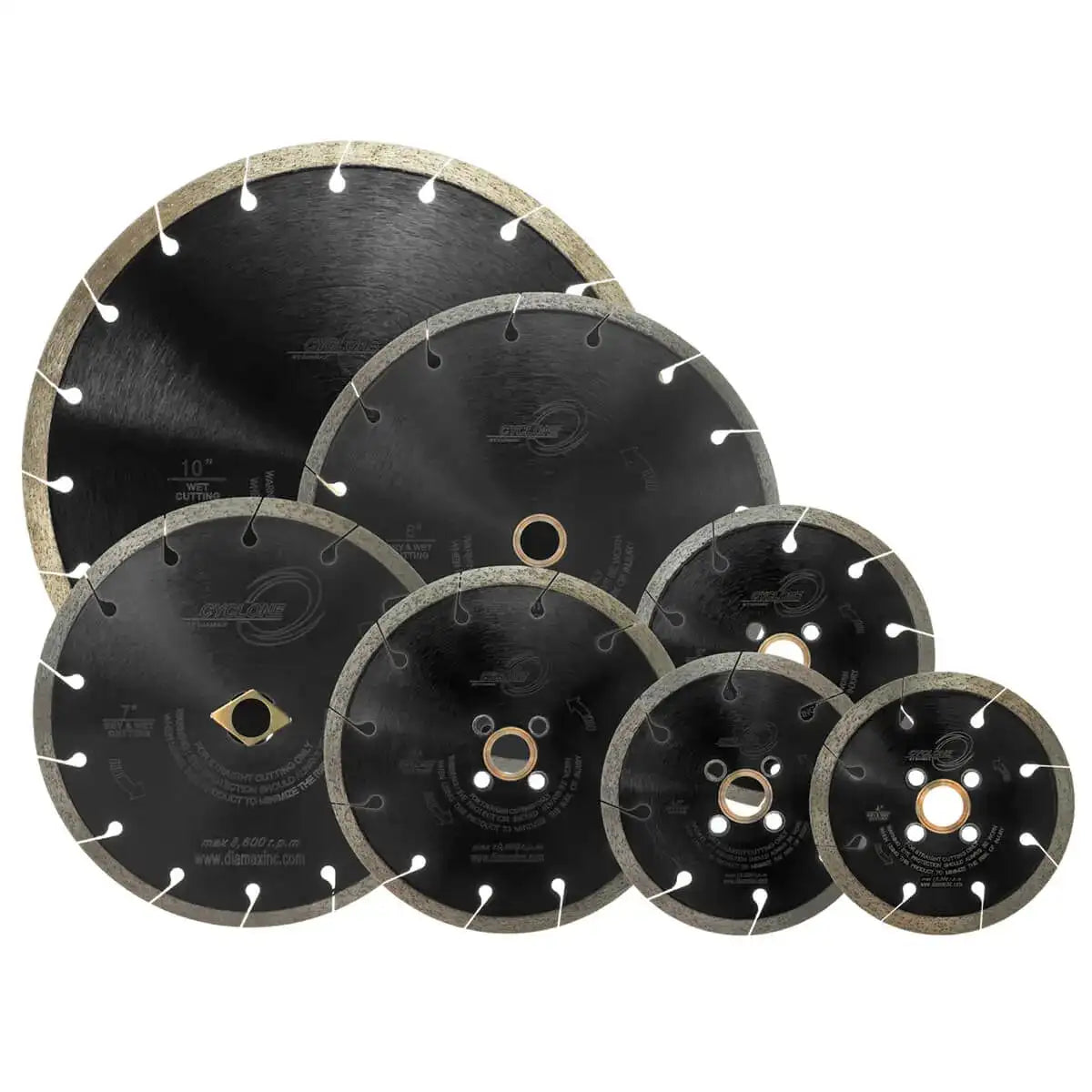

Diamax Cyclone Continuous Rim Blades

$2205 USD
Shipping calculated at checkout.
Brand: Diamax | SKU: 6394-4 inch | MPN:
Blade Sizes

Shipping & Delivery

  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

Diamax Cyclone Continuous Rim Blades

Features

  • Most versatile blade that cuts granite, marble, porcelain, and ceramic tile
  • It is also used widely in countertop fabrication for granite, engineered stone, and marble
  • It is ideal for cleaning seams and preparing material for miter joints
  • Slotted for more aggressive cutting with minimal chipping (Except 10″)
  • For use on angle grinders, hand saws, and tile saws
  • These blades are designed for wet or dry cutting


Diamond Blade Specifications
Model CSR040 CSR045 CSR050 CSR060 CSR070 CSR080 CSR100
Blade Size 4" 4-1/2" 5" 6" 7" 8" 10"
Arbor 5/8″ – 7/8″ – 20 mm 7/8″ – 5/8″ – 20 mm 7/8″ – 5/8″ – 20 mm 7/8″ – 5/8″ – 20 mm 5/8″ – DKO 7/8″ – 5/8″ – 20 mm 1″ – 5/8″ – 7/8″
RPM 15,300 13,200 12,200 10,000 8,600 7,500 6,100


Material Performance
Ceramic Good
Porcelain Good
Marble Good
Granite Excellent
Hard Granite Good
Glass Not Recommended

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Blagoja
A very good blade

I have been using the 4,7 and 10 inch of these blades. They great performers for dry and wet cutting. the only problem I had was with 7" blade arbor opening, it was a hair too tight and the only way I could of make it work with my wet saw via forcing it. I took a dremel and shaved off the inside few times with sanding pad wheel and it went in without any problem. I didnt experience this arbor size opening problem with the 10" and the 4". Overall a very good blade made in S.Korea
