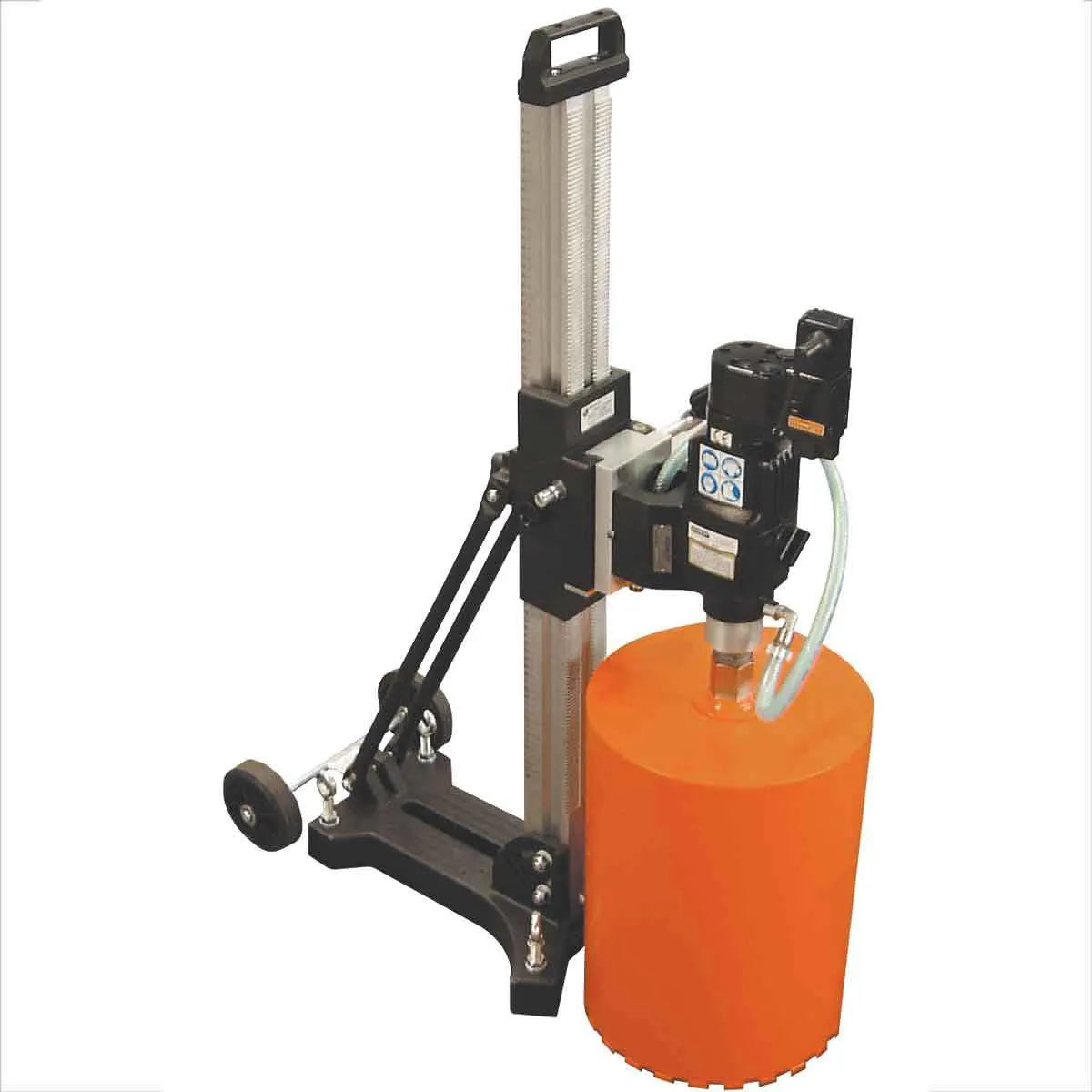

CS Unitec 12" Hydraulic Wet Core Drill with Stand

$4,90868 USD
Shipping calculated at checkout.
Brand: CS Unitec | SKU: 213270010SA | MPN:

Shipping & Delivery

  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

CS Unitec 12" Hydraulic Wet Core Drill with Stand

Self-regulating oil flow control, ideal for heavy-duty core drilling, 3-speed Holes up to 12" diameter


Features

  • The hydraulic motor operates at 2000 PSI oil pressure
  • Powerful 4.2 HP motor and heat-treated gears
  • Drill holes up to 12" diameter
  • Rugged 3-speed Gearbox with mechanical slip clutch
  • Ideal for heavy-duty wet drilling in concrete, reinforced concrete, asphalt, and natural stone
  • Self-regulating oil flow control requires a volume of 6 GPM; flow up to 13 GPM is automatically bypassed back to the tank

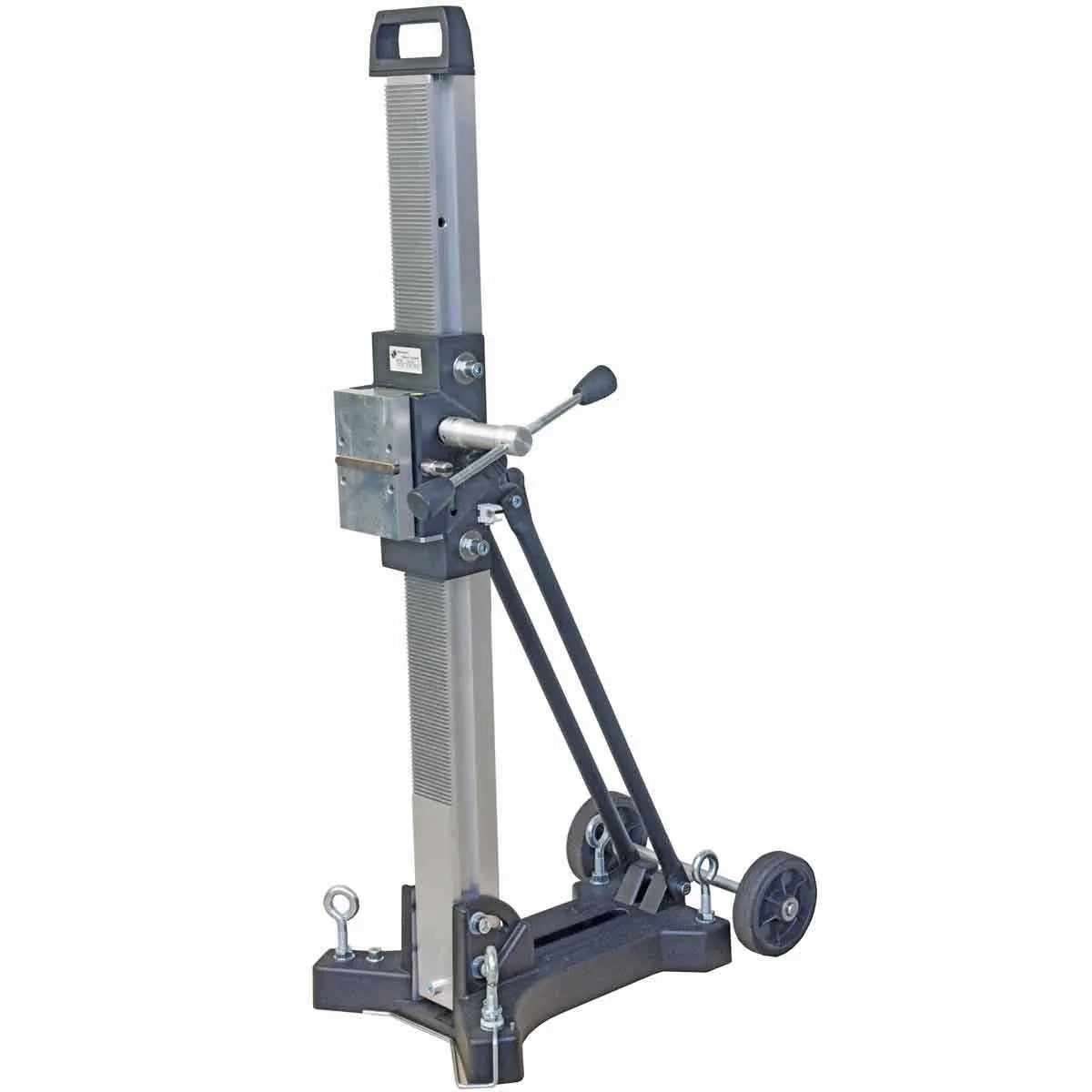

  • Stand is easily adjustable up to 45° from vertical


What's Included?

  • CS Unitec 12" Hydraulic Wet Core Drill and Stand
  • Safety Friction Slip Clutch
  • 360° Rotatable Handle
  • Removable Liner
  • 3/4 in. Gardena Hose Connection
  • Centering Aid - P/N 2 1315 6800
  • Metal Carrying Case - P/N 5 1212 9000
  • Operator's manual


CS Unitec Hydraulic Wet Core Drill and Stand Specifications
Motor Hydraulic - 3-Speed Gearbox
with Mechanical Slip Clutch
Power 4.2 hp (3.1 kW)
RPM 380/900/1,800 RPM
Oil Pressure 2,000 PSI (140 Bar)
Oil Flow 6 GPM (22 LPM)
Flow Control Valve Up to 13 GPM (50 LPM) allowed
Hose Diameter 1/2 in. ID Hose with 3/8 FF (HTMA) Couplings
Bit Connection 1-1/4 in. x 7 UNC, 5/8 in. x 11 UNC, G 1/2 in.
Water Connection 3/4 in. Gardena System
Weight 69 lbs
