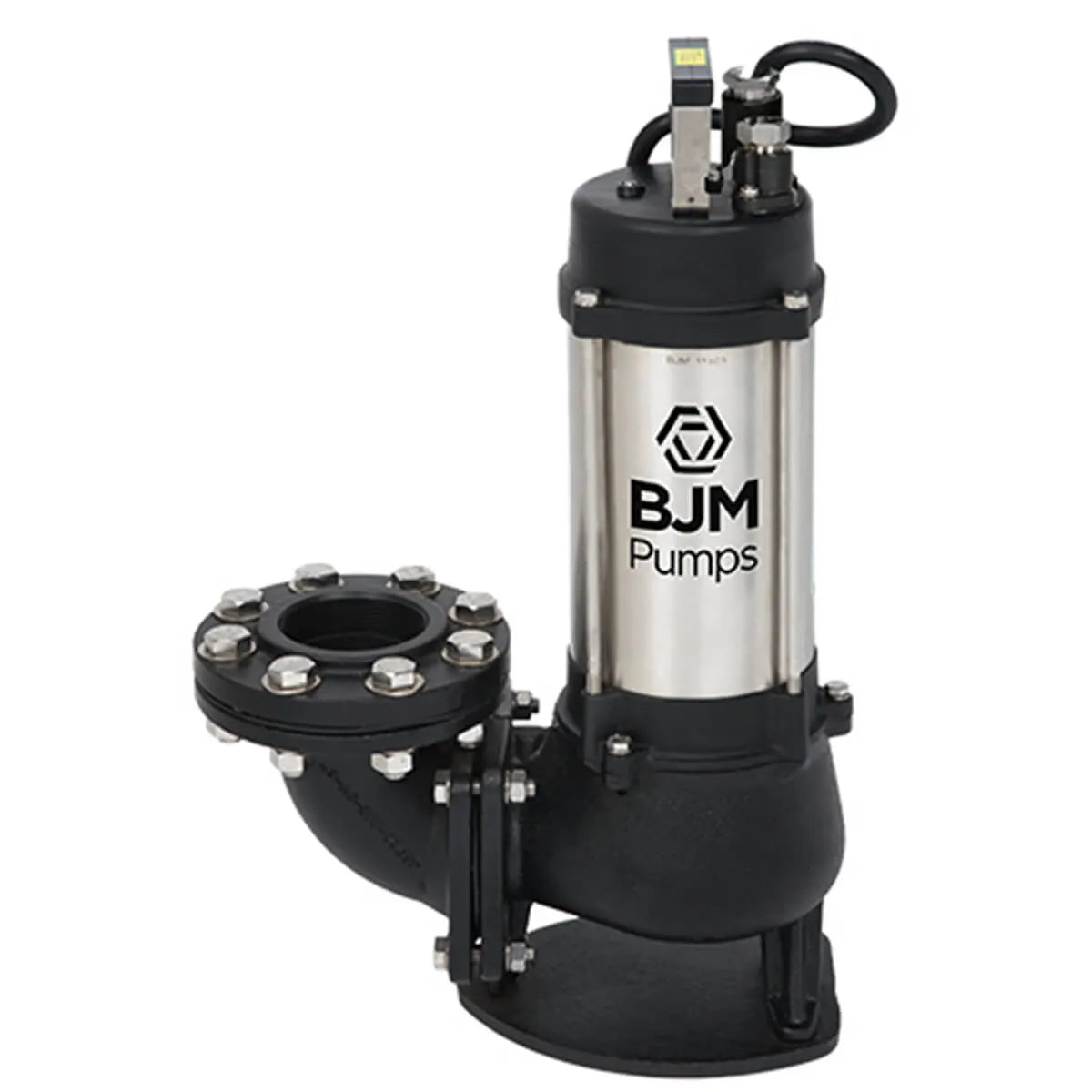

BJM SV1500C-230 3" Submersible Pump 230V

$2,09873 USD
Shipping calculated at checkout.
Brand: BJM Pumps | SKU: 201538 | MPN:

Shipping & Delivery

  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

BJM R1520-230 3" Submersible Dewatering Pump

BJM pumps offer premium performance and efficiency for a variety of applications.


Features

  • The Big Bullet® pumps (2HP) are ideal for dewatering construction sites, mines, circulating fountain water, or for all around use in industrial plants and utilities
  • 304SS motor housing; superior to pumps with aluminum housings that wear out pumping sandy water
  • Hardened cast iron impellers and volutes; superior to pumps with plastic impellers that erode or plastic pump bodies that crack from rough handling
  • 2 HP, 230V, single phase, 14 Full Load Amp
BJM R1520 Pump Specifications
MAX. FLOW 151 gpm
MAX. HEAD 59 ft
PUMP TYPE Elec. Submersible, Top Discharge, Dewatering
STRAINER OPENING 1/4 IN
DISCHARGE CONNECTION 3" NPT-M
SHIPPING WEIGHT:lbs 85 lbs
MECHANICAL SEAL UPPER Crb / Cer
MECHANICAL SEAL LOWER Sic / Sic
MOTOR CASING 304 SS
PUMP VOLUTE Cast Iron
IMPELLER- MULTI VANE Cast Iron
STRAINER 304 SS
LIPSEAL & O-RINGS Buna-N
ROTOR SHAFT 304 SS
EXTERNAL HARDWARE 304 SS
QTY. OIL IN SEAL CHAMBER 2.7 U.S. fl. oz.


Motor Data
MOTOR RATING 2HP
MOTOR RPM 3450 Rpm
MOTOR INSULATION CLASS F
MOTOR SERVICE FACTOR 1.1
VOLTAGE 230V, 1ph-60Hz
CURRENT Full Load Amps. 14 Amps
MOTOR PROTECTION Thermal & Amp O.L.
POWER CORD GAGE & LENGTH 14/3; 50 ft
MAXIMUM LIQUID TEMPERATURE 104° F
