Does this include the screw shown on the picture?

Yes the screw in the picture is included with this item.

Does plunge cutting increase cut length?

Yes, the normal cutting capacity is 28" but you can reach 31" with plunge cut.

1 3

Ishii 22XA Thin Ball Bearing 7/8" Replacement Wheel

Name: Ishii 22XA Thin Ball Bearing 7/8" Replacement Wheel
Brand: Ishii
SKU: 10212
Price: 28.34 USD
Availability: InStock

$28³⁴ USD

Shipping calculated at checkout.

Brand: Ishii | SKU: 10212 | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

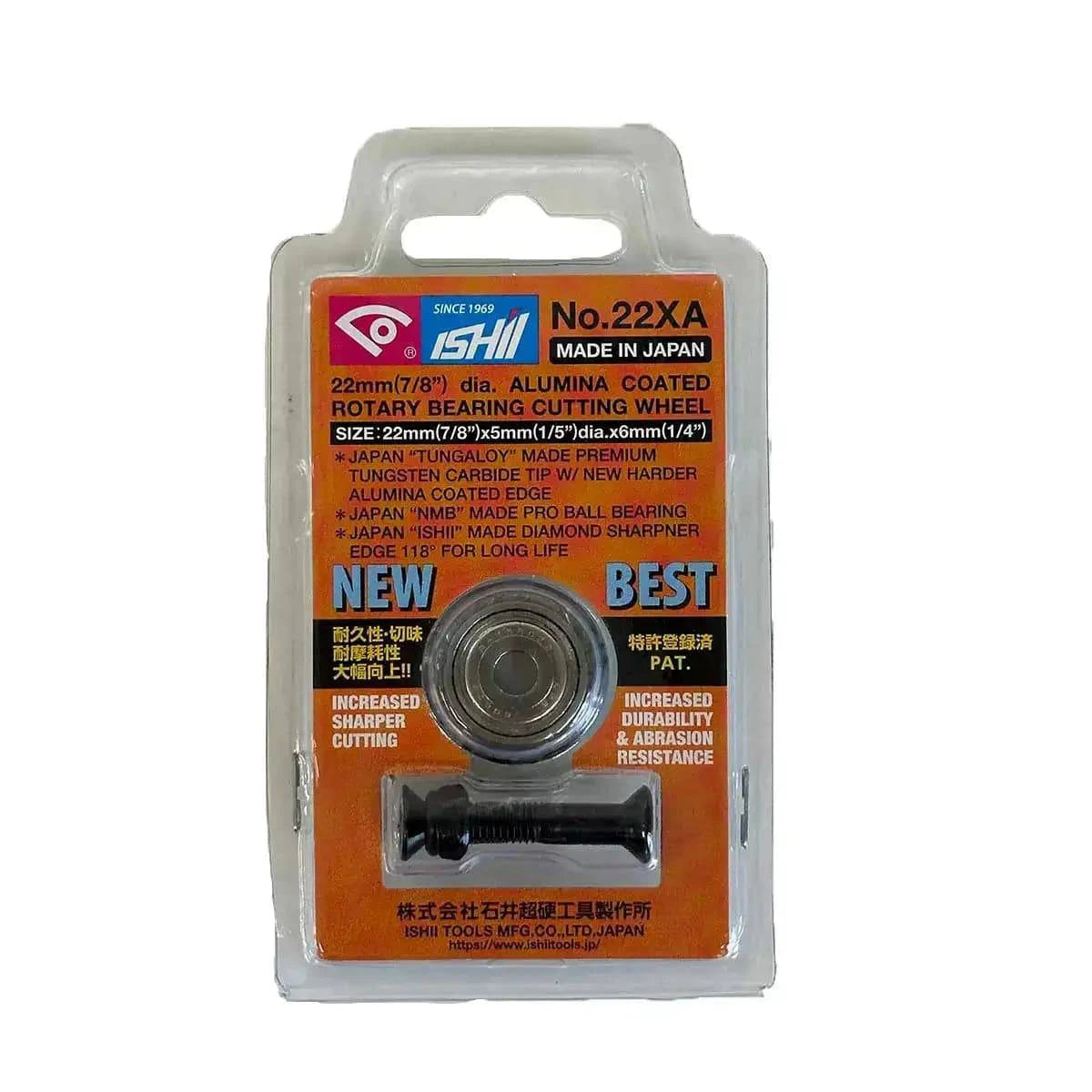

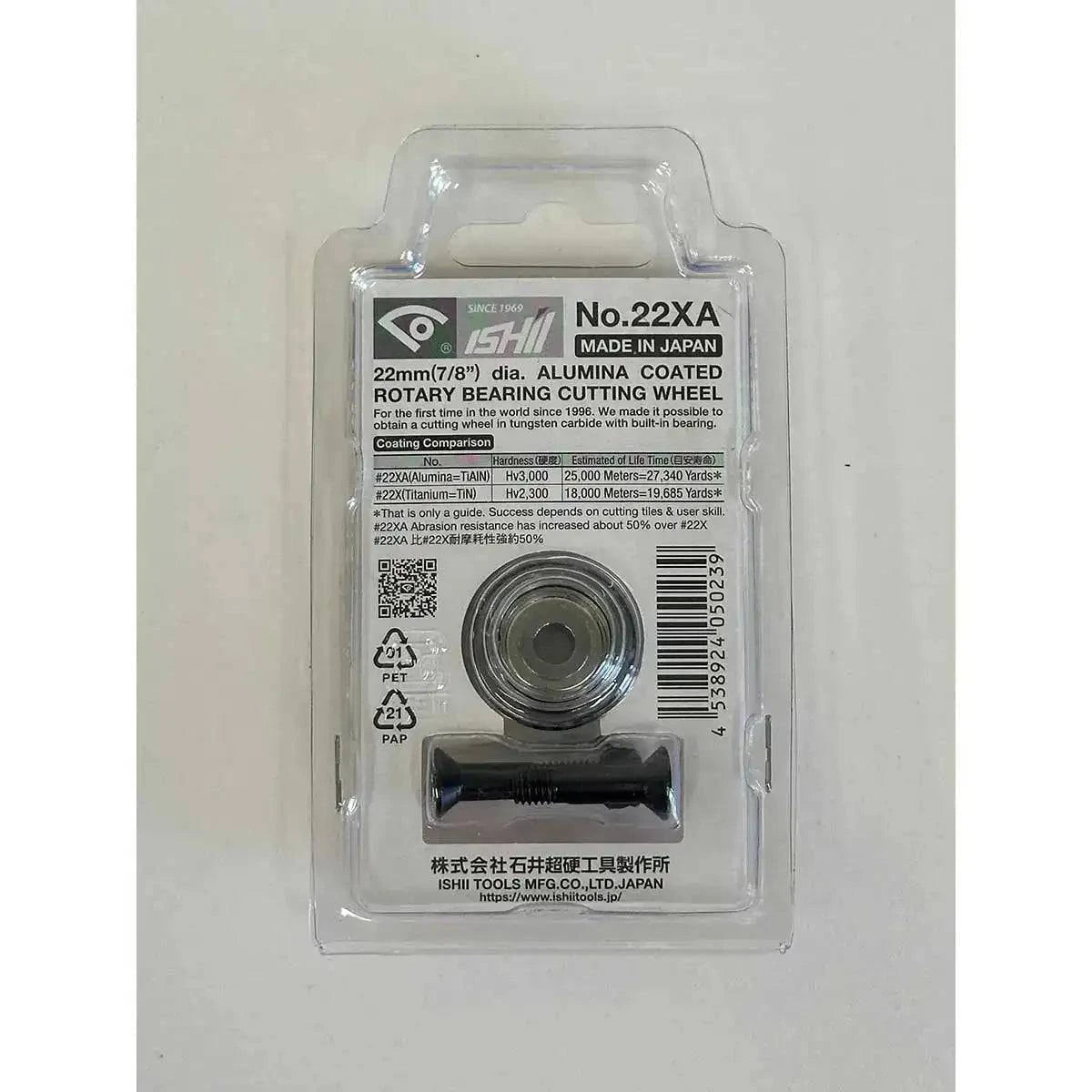

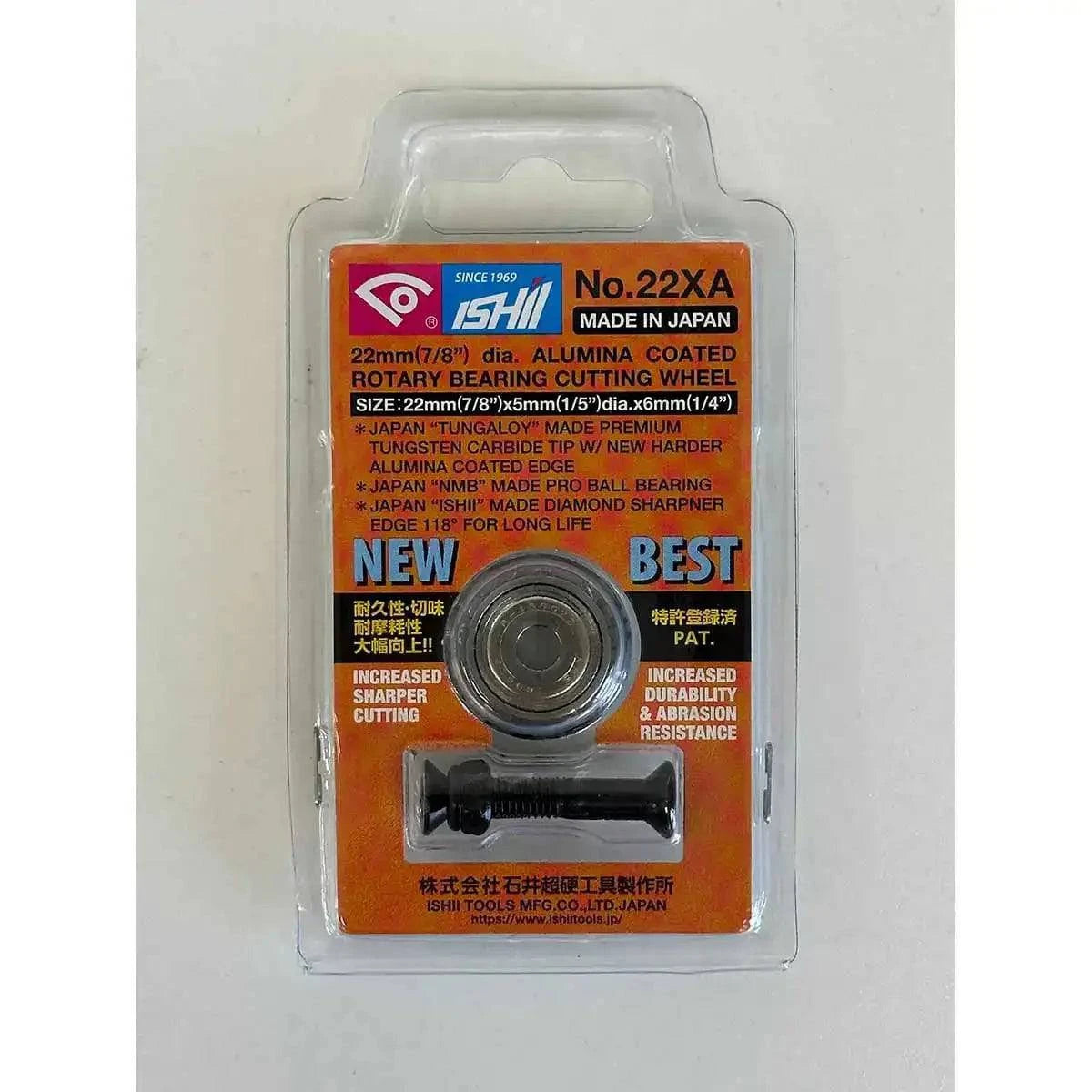

Ishii 22XA 7/8" (22mm) Replacement Cutting Wheel

The Ishii 22XA Thin Ball Bearing 7/8" Replacement Wheel fits the Big Clinker Tile Cutter, the Felker FPC cutters, Ishii Ace, and Big Ace Clinker Cutters.

Features

New style and quality 22XA alumina coated rotary bearing cutting wheel
Japan "Tungaloy" premium tungsten-carbide material is extremely durable, providing accurate cuts on ceramic and porcelain tile and long durability
Professional ball bearing
7/8" (22mm) x 1/5" (5mm) with 1/4" (6mm) diameter
The new harder alumina-coated edge that is sharper (118 degrees) for longer life
Increased durability and abrasion resistance

5 stars: 4 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Works great!

Now my machine cuts like new again, for a lot less money....

Cuts like glass works great

Score gently saves blade.

great product

cuts great

easy to replace works great

Great product i will be buying another to put on the shelf for a spare for when i need it.

For TZ cutters ?

Contractors D.

Ishii does not offer a TZ tile cutter. If you are referring to the Rubi TZ then no, this will not work with the Rubi TZ manual tile cutters. You will need Rubi item 1993

What is the diameter of the axel hole?

Contractors D.

The axel hole is 5mm inside.

will this fit the ct-1 440 power clinker 16"

Contractors D.

Yes, the power clinker uses the 22X 7/8" 22mm scoring wheel.

Will this fit an Ishii jp-560sta?

Contractors D.

Yes, the Ishii 22x replacement wheel will fit the JP-560sta.

Will this wheel fit Brutus model #10600?

Contractors D.

This wheel is <b>not </b>for the Brutus tile cutter.
