Can you use different heating cables for this product. Does it work as a vapor barrier?

Other cables non Ardex brand, are 50/50 on effectiveness with this membrane. Other cables tend to be loose and do not snap in like the Ardex Flexbone Heat does. Yes, this will act as a vapor barrier as well.

1 10

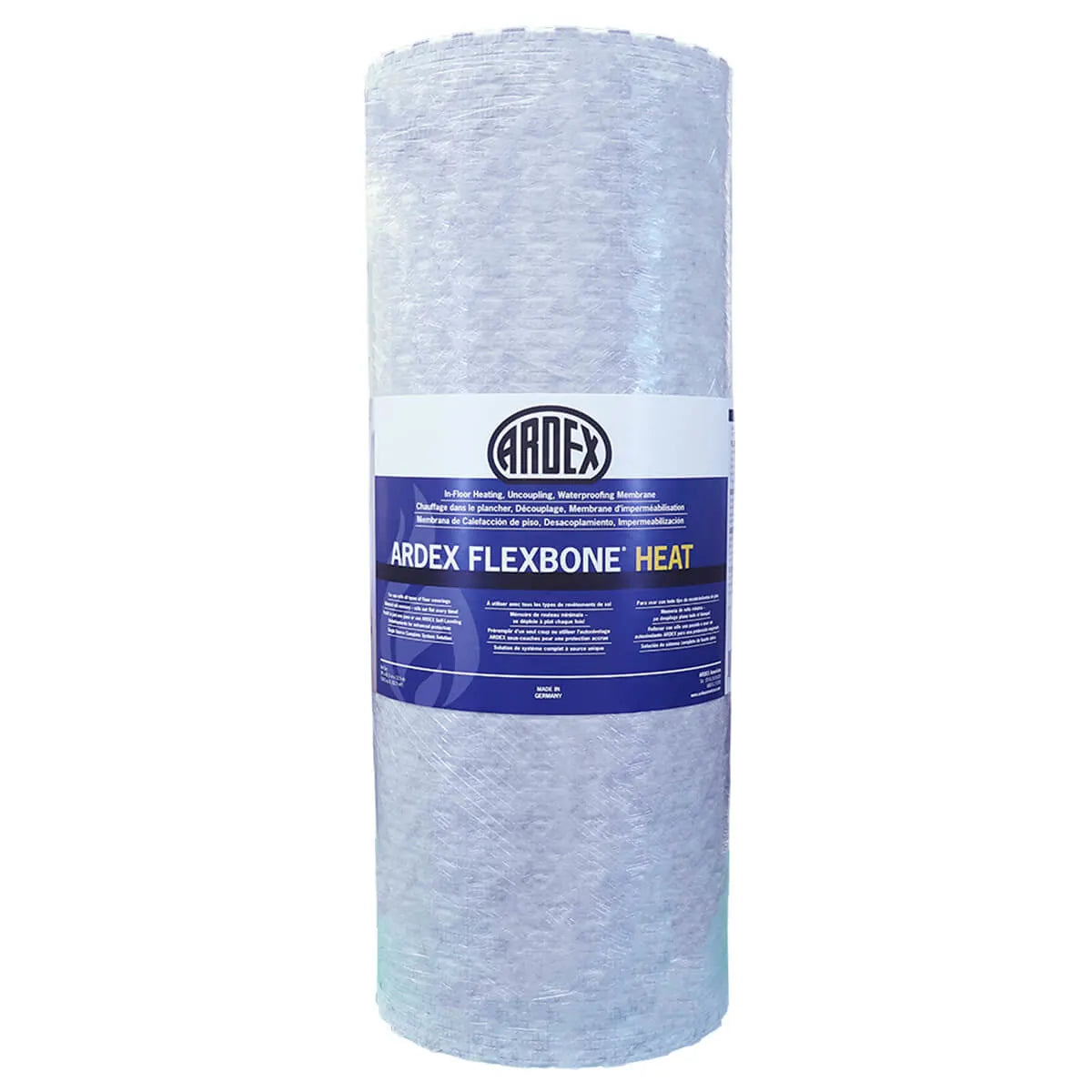

Ardex FLEXBONE Heat UH 900 In-Floor Heating & Uncoupling Membrane

Name: Ardex FLEXBONE Heat UH 900 In-Floor Heating & Uncoupling Membrane
Brand: Ardex
SKU: 30076
Price: 276.0 USD
Availability: InStock

$276⁰⁰ USD

Shipping calculated at checkout.

Brand: Ardex | SKU: 30076 | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

Ardex FLEXBONE Heat UH 900 In-Floor Heating & Uncoupling Membrane

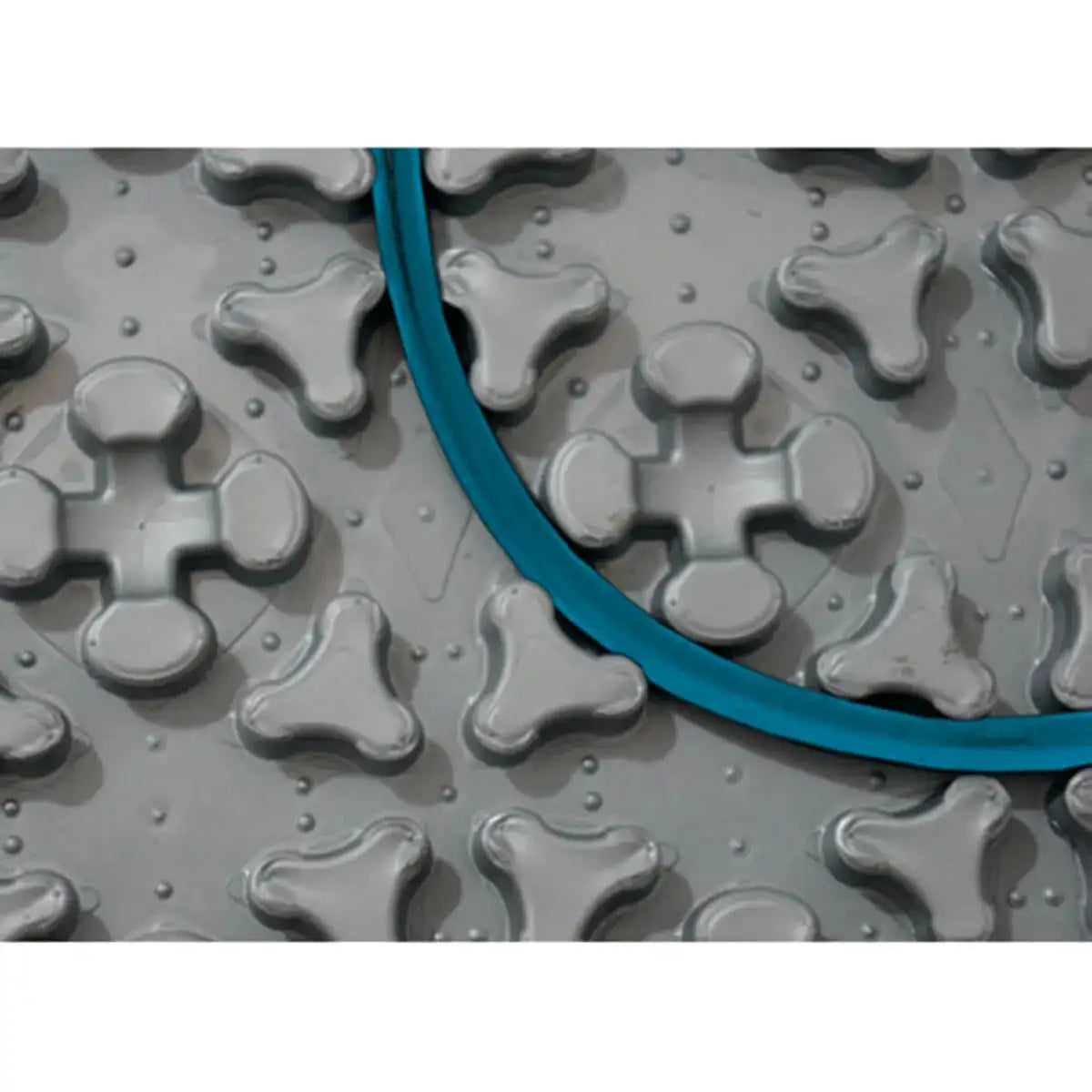

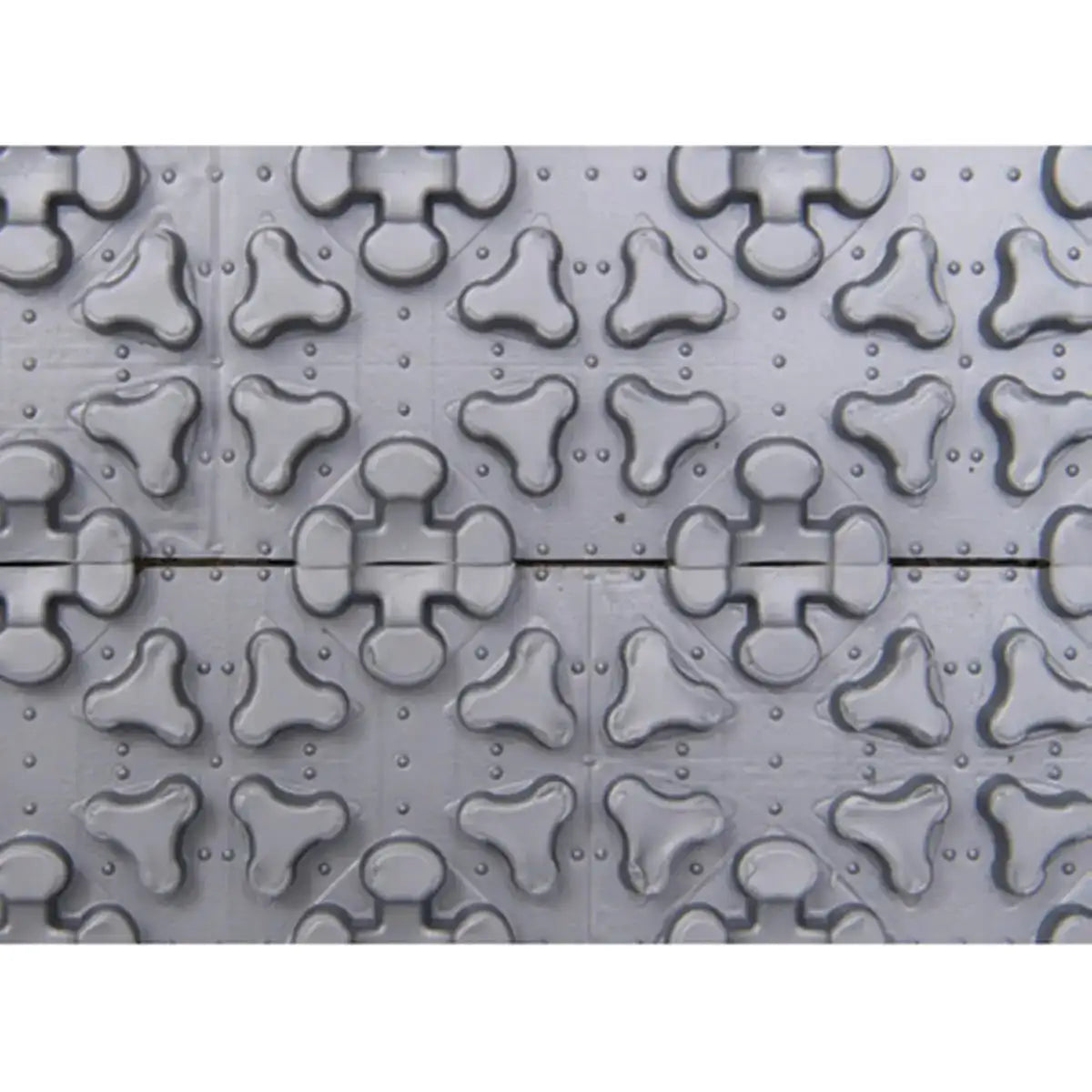

FLEXBONE HEAT Membrane is a 3-in-1 floor heating, uncoupling, and waterproofing membrane designed with floor heating cables for a uniformly heated tile or stone floor. The unique crossbones design pattern provides an easy template for laying floor heating cables, creating fewer touch points between the cable and the membrane for more efficient heating. The FLEXBONE floor heating cable system can only work with wood, laminate vinyl tile, or carpet flooring when using K 60 ARDITEX Rapid Setting Latex Smoothing and Leveling Compound.

Features

1/4″ (6 mm) Mat – 39″ wide x 41′ long (1 m wide x 12.5 m long) roll
Coverage of 134.5 sq. ft. (12.5 sq. m) per roll

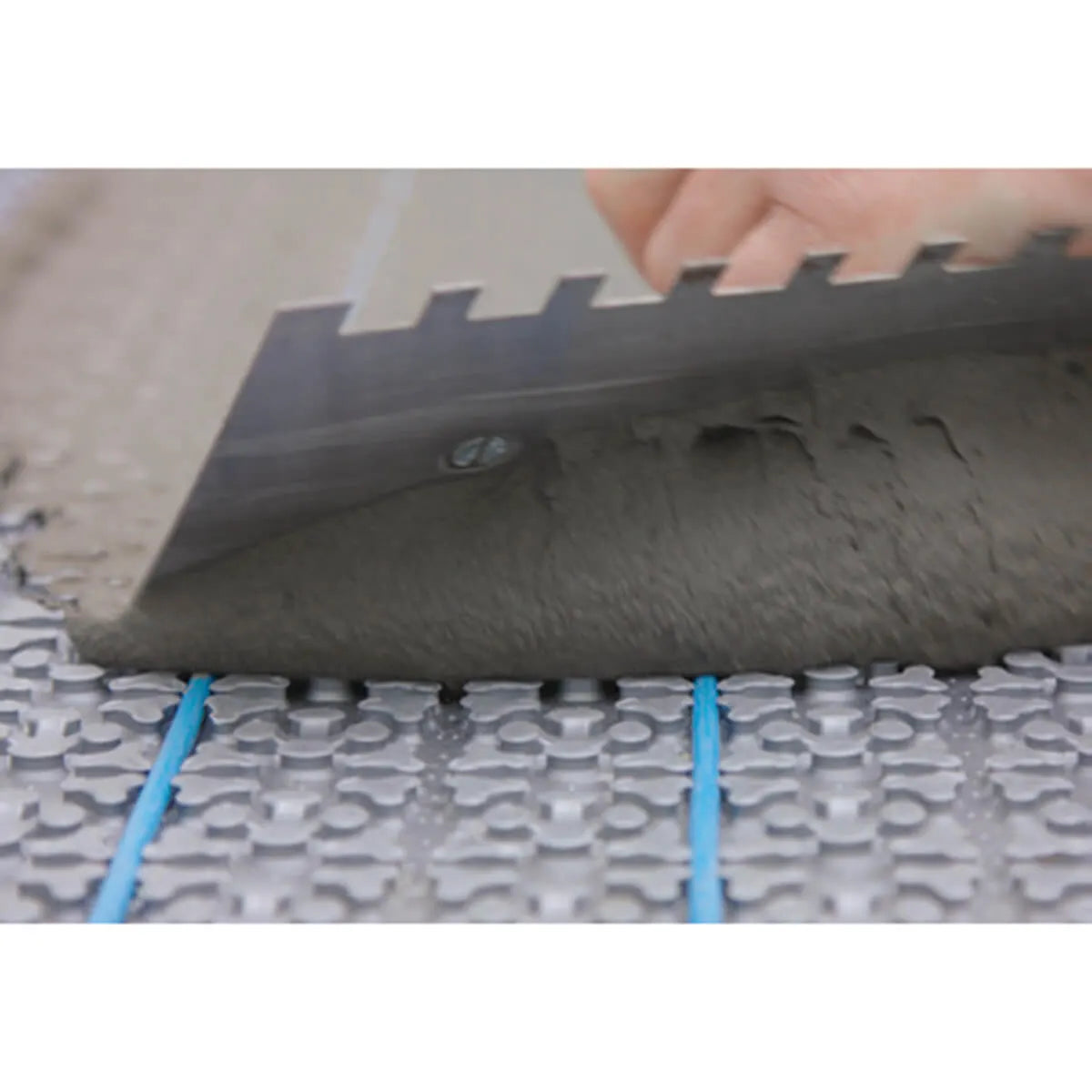

Unique crossbones design allows for pre-filling of the membrane in just one pass or mortar or approved self-leveling underlayment to more securely encase heat cables

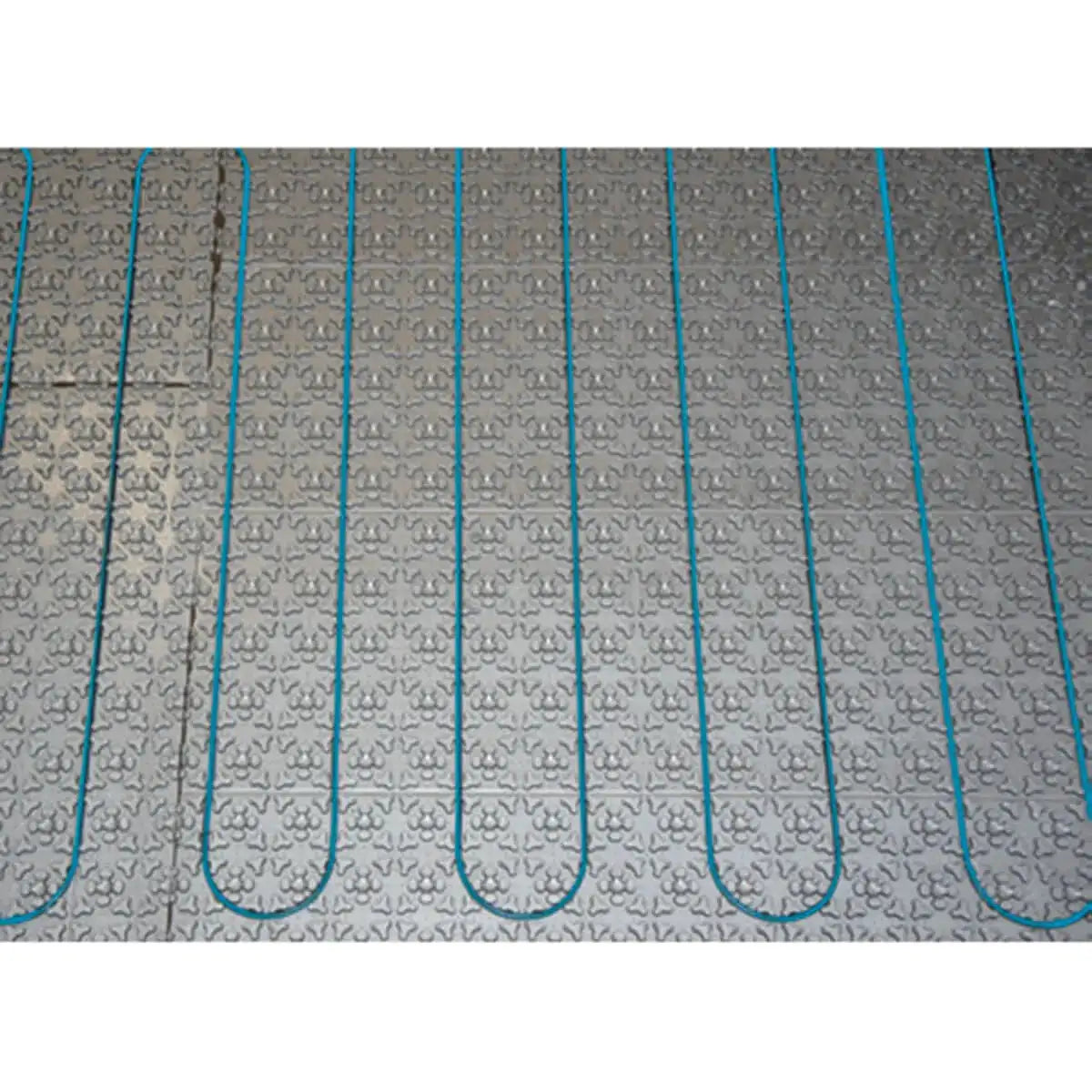

The heating cable must be spaced so that at least two crossbones patterns are between the cables (approx. 3.88” / 9.8 cm)
It can also be installed in a "comfort" setup with at least 3 crossbones patterns between cables
It can be used as a waterproofing membrane in bathrooms and other wet areas
It can be used as an uncoupling membrane to prevent grout joint and tile damage from substrate movements
Must use SK-175 Waterproofing Seam Tape on seams between adjacent mats
Ideal for use with large format tile and stone installations
Minimal roll memory – rolls out flat every time!
Single-Source, Complete System Solution
10-Year system warranty

Product Manuals

Manual

Additional Info

5 stars: 3 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Great products

Very happy with Flexbone products. Much less expensive compared to Schulter. Very forgiving if you don't get it cut perfect for alignment. A lot more thinset contact with the heat wire so should perform better

buy it

this is the best proudut for floor heat i have used in 22 years, lays flta and thinset bonds great,

great product five stars

just used this on two jobs, amazing product, hold the thinset mortar unlike dittra mat that falls out, and bonds to floor well.

How much area does the Ardex Flexbone roll cover?

Contractors D.

Ardex Flexbone Heat UH900 membrane will cover approximately 134.5 sq. ft. (12.5 sq. m) per roll.

I have 2 bathroom to install the floor heat Please can you help me with all I need and the tip price for thermostat , floor heat 20 amp electrical circuit Bath 1 =7x2’ Bath 2= 5x3’

Contractors D.

Please contact our customer service team to assist you with a quote at orders@contractorsdirect.com or via phone at 1-800-709-0002.

Is it possible to run the wires at 2.5-inch spacing with this mat? I'm not asking if it's approved but I'm asking if the mat will accept a wire snapped in at 2.5 inches apart? Or alternate 3-inch/2-inch?

Contractors D.

This Ardex system is meant to be installed using the spacing the dots provide. Every 2 dots would provide a 3.88 inch spacing and every 3 dots would provide a 5.82 inch spacing. Ardex does not recommend alternating spacing as this will result in hot and cold spots throughout your installation

Is it necessary to apply heating systems for tiles in Washington state

Contractors D.

Please contact a representative of your local or state building authority to inquire about the building requirements and codes in your area.
