Alpha EZ Click Tile Leveling System - Linear Bases | 1/32" Base - Bag of 200

Alpha EZ Click Leveling System - Linear Base 200 Piece Box

Introducing the EZ Click Tile Leveling Systems. The EZ Click's patent-pending leveling cap perfectly levels adjacent tiles with zero effort.

Features

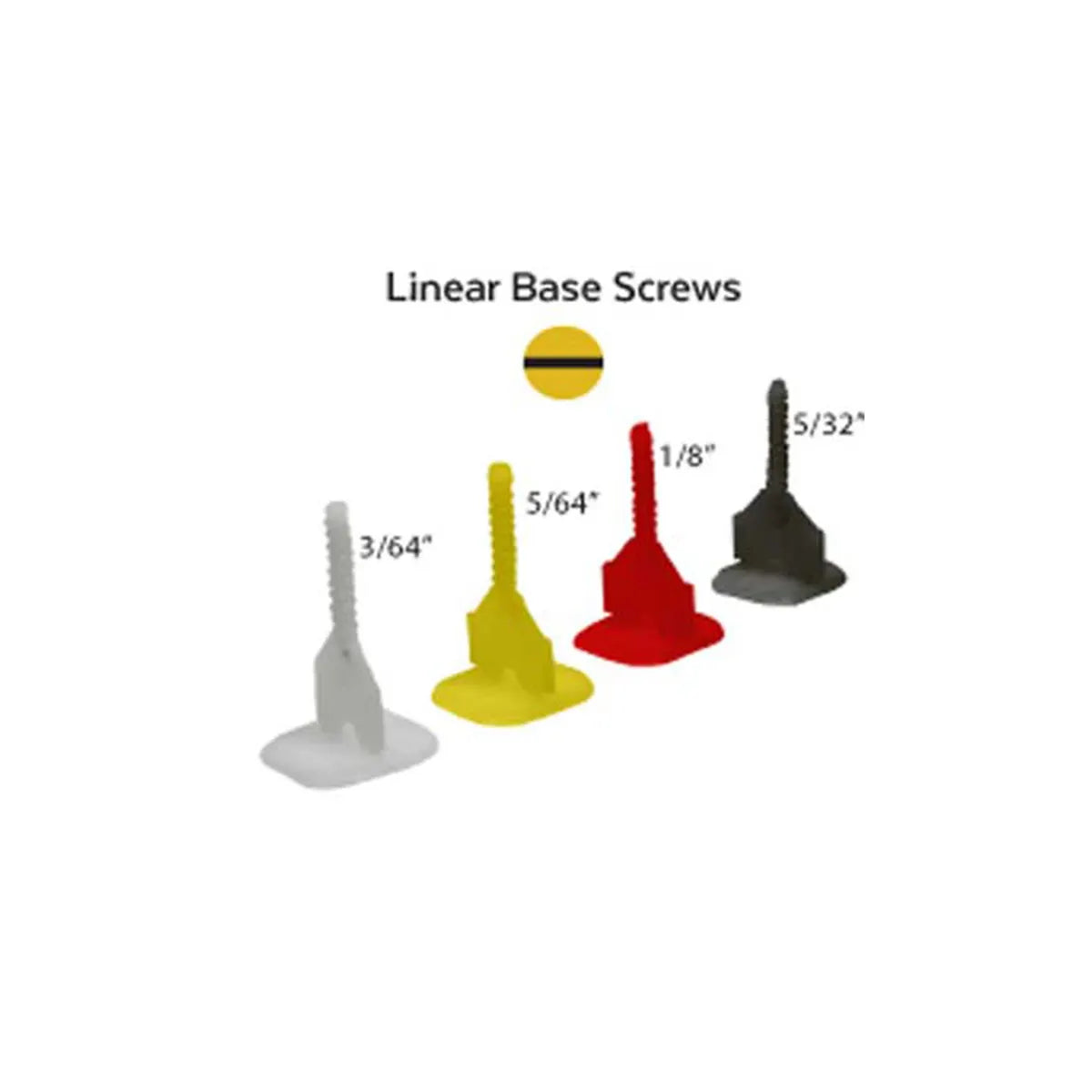

• Available in 1/32" (white), 3/32" (yellow), 1/8" (red), and 5/32" (black) bases
• Designed for both floor and wall tiling
• Instant screw ejection leveling system
• No tools are required - simply hand tighten until adjacent tiles are level

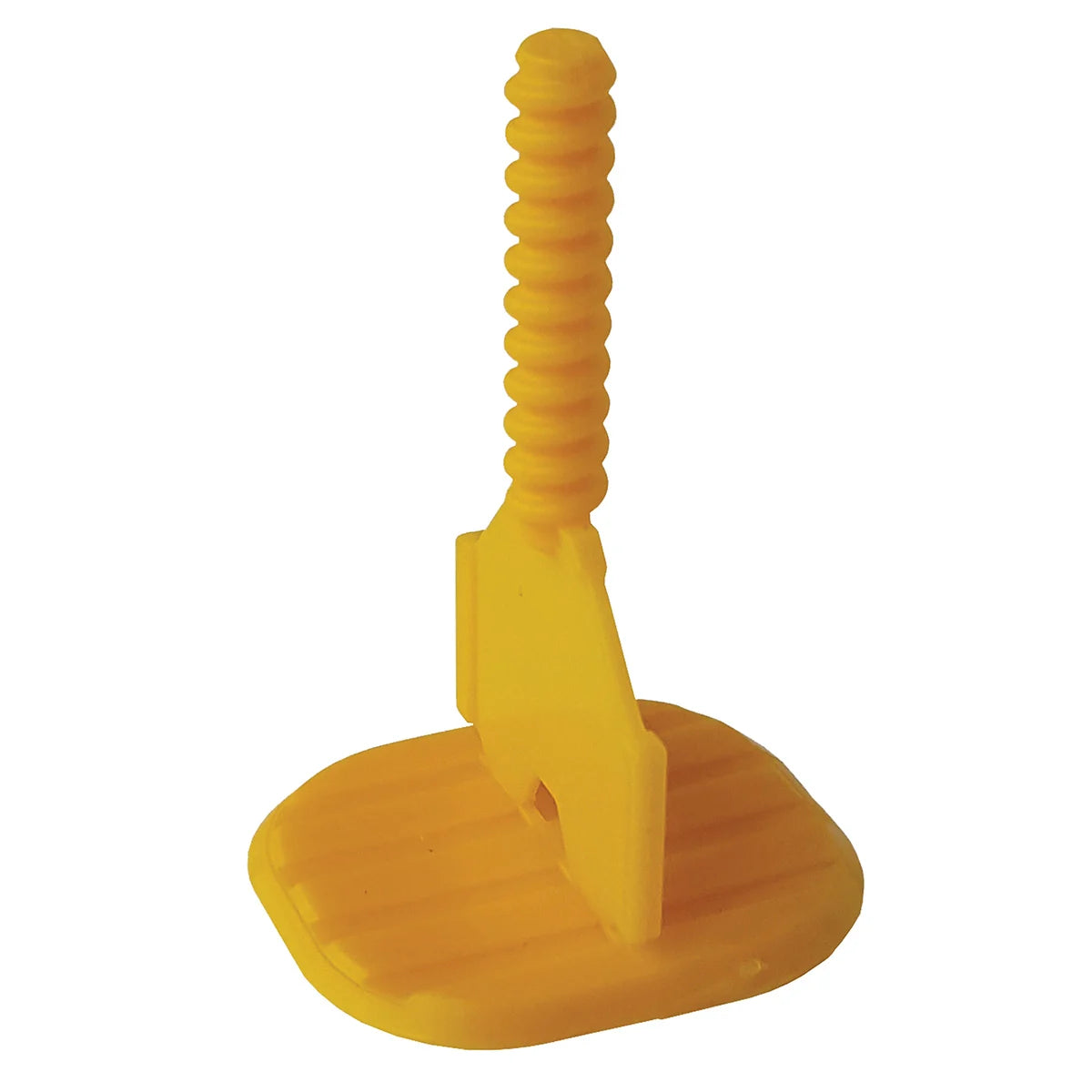

• Spacer Bases fit below tiles and fasten to the caps
• Proprietary scratch prevention edge
• Compatible with many older-generation systems
• The cap can be used more than 500 times (compared to others, which may only be 8 to 10 times)
• Built-in spacer calibration
• Color-coded base screws for easy size/type identification
• Made in Italy
• Caps sold separately

Technical Data

• Supports tile thickness: 1/8" to 25/32" (3mm to 20mm)
• Minimum joint size: 1/32" (1mm)

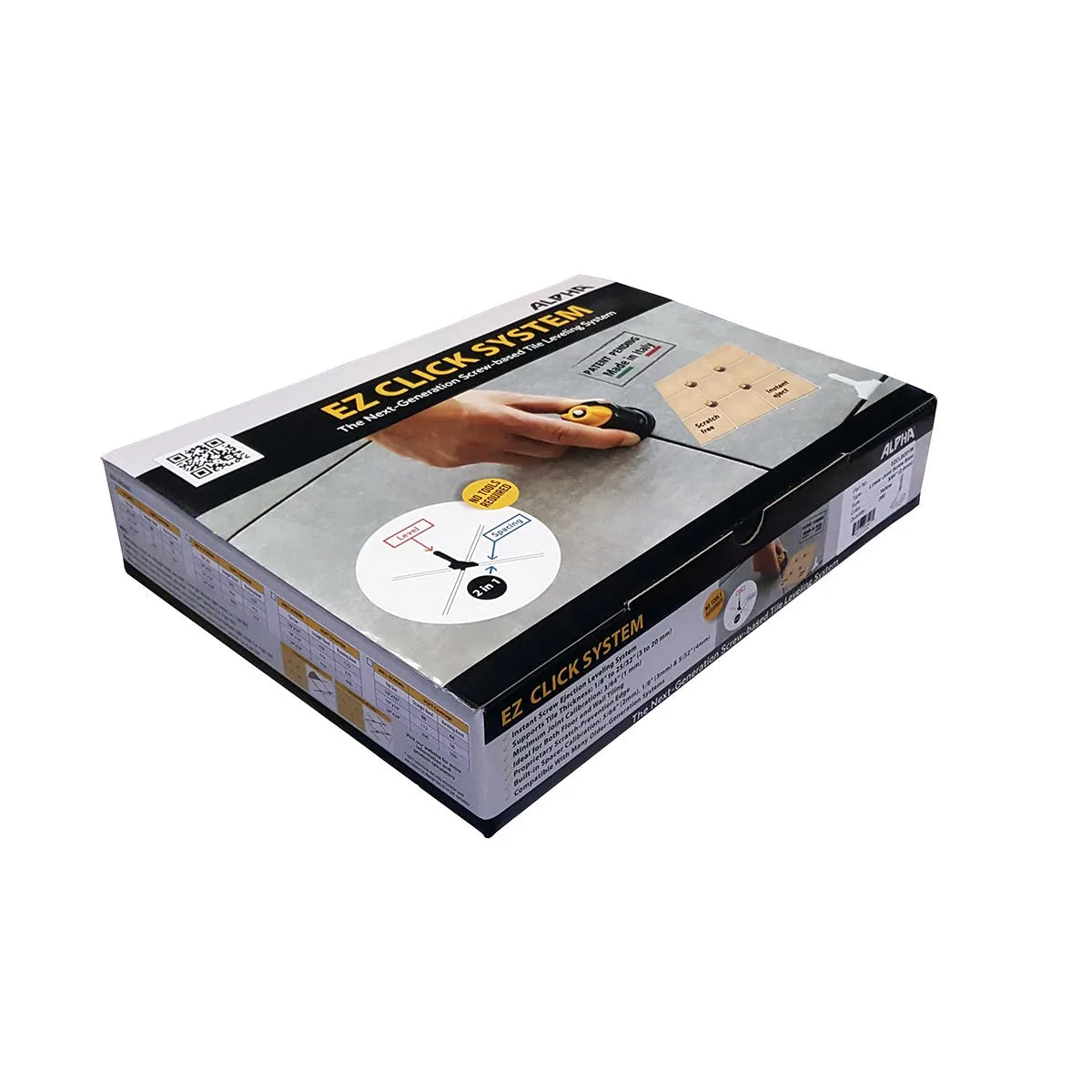

• 200 bases per box

How to use

• STEP 1: Place spacer bases under the tile once the thin set has been applied
• STEP 2: Apply the cap to the base. Lock the cap onto the base by twisting the yellow knob.
• STEP 3: Once the cap is locked to the base, turn the black part of the cap until the adjacent tiles are level; no need to over-tighten
• STEP 4: After the thin-set has cured, break off caps and bases with a mallet or your foot. It's important to break the caps loose by hitting them in the direction of the top of the spacer base (in line with the grout joint).
• STEP 5: Remove the broken piece of the bases from the caps by unlocking the cap from the base spindle using the yellow knob.
