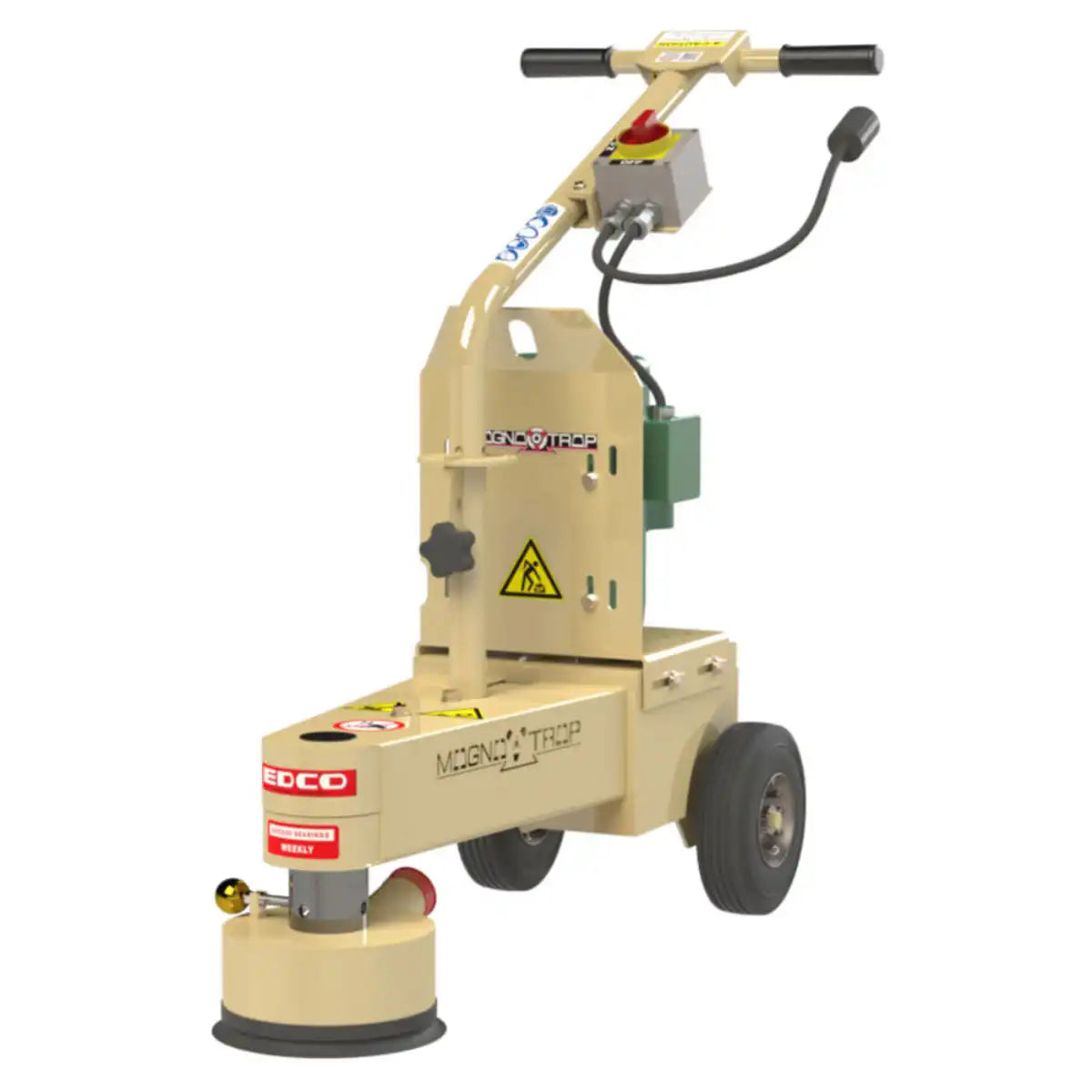

Edco Magna-Trap 7" Edge Turbo Grinder TMC-7E 115V

$4,35000 USD
Shipping calculated at checkout.
Brand: Edco | SKU: 57200 | MPN:

Shipping & Delivery

  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

57200 EDCO MAGNA-TRAP 7" EDGE TURBO GRINDER TMC-7E 115V


Features

  • Three-position articulating frame adjustment for left angle, right angle or straight position grinding
  • Four-position dust shroud allows flush grinding against any vertical surface in the left angle, right angle or straight position
  • Multiple-position handle assembly allows the operator to work behind the unit for edge grinding or in front of the unit and control the amount of grinding pressure applied
  • Adjustable tubular handle construction provides operator maximum grinding flexibility and allows for complete clearance of any vertical surface
  • New & improved tapered roller bearings provide less maintenance and longer life
  • Standard vacuum port
  • Electric Motor has a Flex Head Assembly
  • Gas Motor has a Rigid Head Assembly
  • 7" Working width will grind approximately 300-400 lineal ft per hour at 1/16" with an Edco diamond cup wheel

IDEAL FOR

  • Grinding concrete
  • Grinding uneven expansion joints, high spots, bridge decks or removing coatings in small areas
  • Grinding curbs and gutters for proper flow trenching
  • Edge grinding along vertical surfaces
  • Removing coatings, build-ups, markings, overlays or paints

Flex Head Assembly Ideal For

  • Edge grinding along vertical surfaces
  • Grinding rough concrete surfaces
  • Grinding surfaces 4 times faster than a traditional floor grinder

Rigid Head Assembly Ideal For

  • Preparing a smooth, flat floor to receive a new coating
  • Grinding uneven expansion joints, high spots, joint curls and bridge decks
  • Removing coatings
  • Grinding rough concrete surfaces

What's Included?
  • EDCO TMC 7 Turbo Max Combo 7" Floor Grinder
  • 7" Diamond Disc (#72030)
  • Operator's manual

Magna-Trap 7" Edge Turbo Grinder Specifications
Power 2 HP, 115V
Motor Single Phase Electric, 18.4 Amps
Speed 1740 RPM
Dimensions Length 40", Width 24", Height 38.5"
Weight 130 lbs
