Can I use the Blanke Permat on outdoor applications?

The Blanke Permat uncoupling sheet is not rated for outdoor use.

1 11

Blanke Permat Tile Underlayment 6.5 sq ft Single Sheets

Name: Blanke Permat Tile Underlayment 6.5 sq ft Single Sheets
Brand: Blanke
SKU: 527-904-US
Price: 18.32 USD
Availability: InStock

$18³² USD

Shipping calculated at checkout.

Brand: Blanke | SKU: 527-904-US | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

Blanke Permat Tile Underlayment 6.5 sq. ft. Single Sheet

Innovative uncoupling underlayment that offers all the labor saving benefits of the old plastic roll systems. It also adds support to wood substrates thereby reducing deflection and provides greater compression and tensile strength than plastic roll products. This tile underlayment is stable to walk on during installation and does not require additional curing time when installing porcelain with latex modified thinset.

Features

1/8" thick
Dimension 6.5 sq ft and measures 2 ft x 3.2 ft.
No extended cure time for latex modified thinset mortars under porcelain tile
Crack isolation properties (uncoupling)
Permanent Support of high quality flooring, stone, marble
Reduces vertical sub-floor movement (deflection)
Interior use only
Adds the extra substrate support for stone floor installation (max L/720 for stone vs L/360 for tile)
Approved for ceramic tile installation over layer of 3/4" plywood on 24" o. c. joist spacing
10 years replacement warranty against problems caused by excess deflection only warranty of its kind in the industry (see permat warranty for details)
Superior compressible strength
Strengthens wood substrates thereby reducing deflection
Superior tensile strength
Crack isolation properties (uncoupling)
Superior resistance to delaminating during installation
No extended cure time for latex modified thinset mortars under porcelain tile
Lightweight; easy to install
Self-seaming panels prevent substrate movement stress from transmitting to tiled surface

Instructions for Installing Permat

Substrate must be clean, dry, flat and load bearing
Trowel a more liquid than normal mix of thinset mortar onto substrate
Lay the Blanke PERMAT panels in a row so that the mesh overhang on the two sides of a panel cover the seams of the sides of adjacent panels without the overhang
Subsequent rows of panels should be placed so that the seams running perpendicular to the previous row are offset a minimum of 3" from the seams running in the same direction in the previous row
Use the flat side of a trowel or a vinyl roller to press the panel into the thinset ensuring that the fabric on the underside of the panel achieves full contact with the thinset and that there are no air bubbles
Use the flat side of the trowel to key thinset into the voids on top of the underlayment
Set tile using a notched trowel appropriate for the type of tile and traffic. (Read Installation Instructions prior to installing this product)
Movement joints are required in the tile surface per industry standards

Typical Applications

Ideal alternative to backer board underlayment used in interior residential applications over wood substrates where excess deflection may be an issue and in commercial applications on concrete where stress cracks can be a problem
Ideally suited for new home construction where demanding installation schedules cause traffic to cross on the underlayment prior to tile installation

Suitable Substrates

Wood substrates stone and tile (including large format) Plywood EGP and OSB 16" o.c. joist spacing, minimum subfloor thickness: 5/8" 19.2" o.c. joist spacing, minimum subfloor thickness: 3/4"
Wood substrates tile only (no larger than 16"x16") 24" o.c. joist spacing, minimum subfloor thickness: 3/4" (subject to maximum joist span restrictions)
Concrete substrates. Substrates covered with stone, tile and vinyl (consult thinset manufacturer instructions) Floor heating systems (consult Blanke installation instructions)

Technical Data

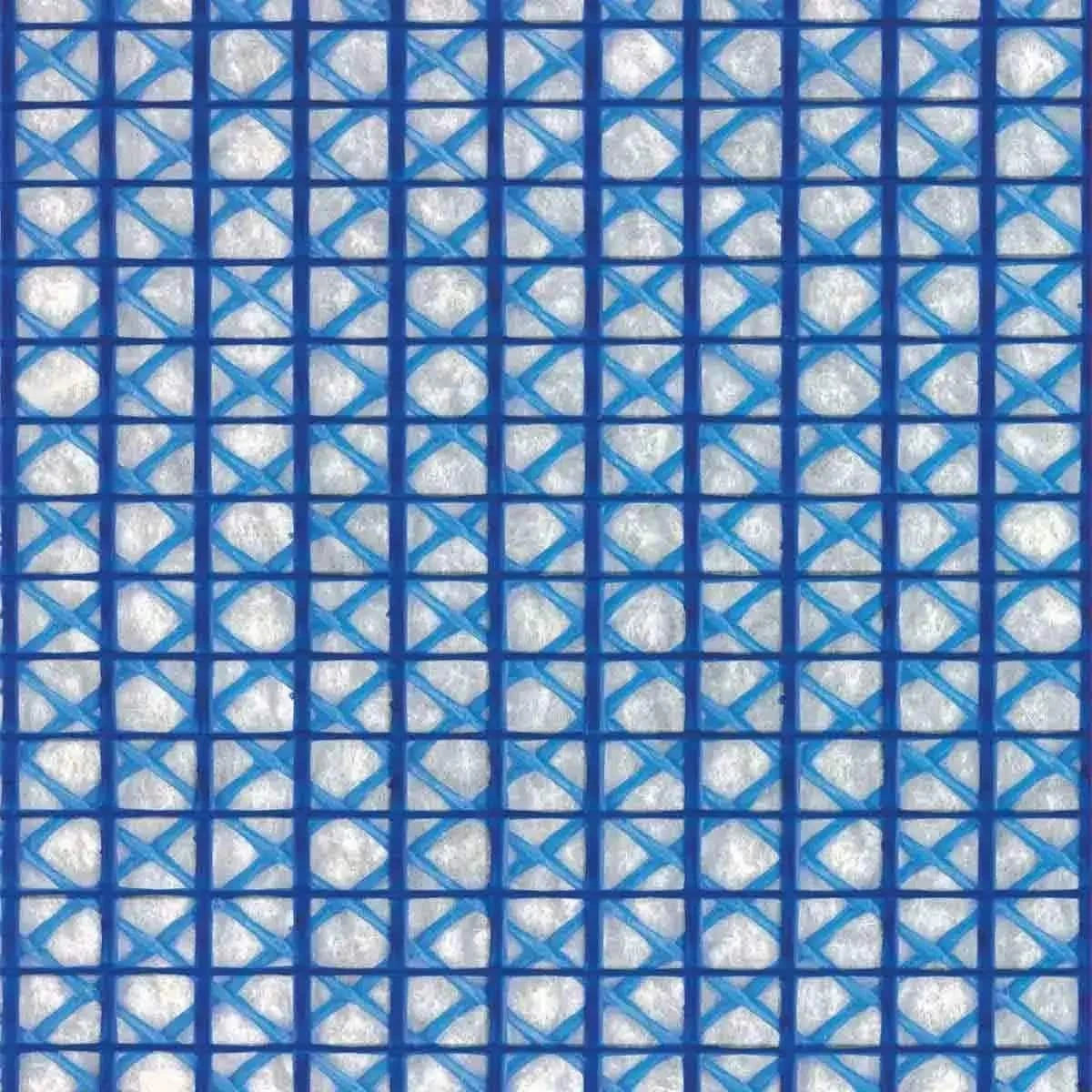

Top Mesh: Extruded twisted strands of highly alkali-resistant glass fiber, heat-welded to the lower layer of HDPE mesh
Bottom Mesh: Extruded twisted strands of alkali resistant high-density polyethylene (HDPE)
Fabric material: Polypropylene fleece
Thickness: approx. 3.3 mm (nominal 1/8 inch)
Weight: approx. 0.8 kg/m2 (approx. 2.6 ounces/sq. ft): 1.06 lbs. per - panel: 31.8 lbs. per carton
Color: Fabric: white HDPE Mesh: light-blue Top Mesh: dark blue

Product Manuals

Manual

Parts

Additional Info

Additional Info 2

5 stars: 5 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Awesome underlayment

Love the ease of use. Easy to cut with decent scissors. Straight forward installation process. I consider it a must buy when installing stone over wood substrate.

Fast Delivery; Excellent product for tile substrate

Great product. Very easy to use and much stiffer than Schlueter. I used this because small mosaic tile isn't allowed on Schlueter. Pricey but nice and easy to used. Install tile right after laying underlayment without waiting. Delivery was fast. No problems

Great underlayment

These are perfect for adding the strength that the substructure needs. I've found Blanke Permat helpful for installing stone tile without having to add another layer of plywood. Easy to install and I've used this product for years.

Excellent service and reasonably priced items

I needed enough Blanke Permat sheets to complete a medium size bathroom floor. Contractors Direct provided the Blanke Permat sheets at a reasonable price and with reasonable shipping charges. The items arrived within a week. I will definitely use Contractors Direct for my future orders.

Very easy to work with

On previous jobs, I've used cement board, and I've used the rolls of plastic underlayment from another brand, but this is far easier in the sheet form it comes in. Permat was as thin as any other option, but it adds strength to bond everything together like no other product I've seen. It was worth the expense for the small job I had.

What is the IIC rating on this product? My contractor needs 60-65 for an HOA install approval

Contractors D.

This Permat is not rated to be a sound proof underlayment and is not recommended to be used in that application.

Can permat be installed over vinyl floors?

Contractors D.

Yes the Blanke Permat can be installed over vinyl however please follow all recommended guidelines with the thin set you are using.

Are there issues that I should know about setting the Blanke Permat over or below floor warming cable or mats?

Contractors D.

Heating system should be installed first then permat. This does not impede the ability to warm the floors. The testing data showed that it took a few seconds to reach target temperature but it also took less energy to maintain the temperature: a wash! Blanke recommends that you bond tile or stone directly to Permat. The strength of Permat ( increase in Point load, compressive, sheer, and tensile) begins to diminish once you get over 3/8 inch between Permat and tile or stone. If the floor is more than 3/8 out of level Blanke suggests you level first.

Can I use the Permat over an existing concrete floor?

Contractors D.

Yes, be sure to use a modified thinset mortar when installing this product. Permat is suitable substrate for going over concrete slabs.

When using Permat by Blanke is there a particular thinset I should use when installing porcelain?

Contractors D.

Latex modified thinset is recommended for porcelain tile installation. Using the Blanke Permat does not extend cure times for the mortar under the tile.
