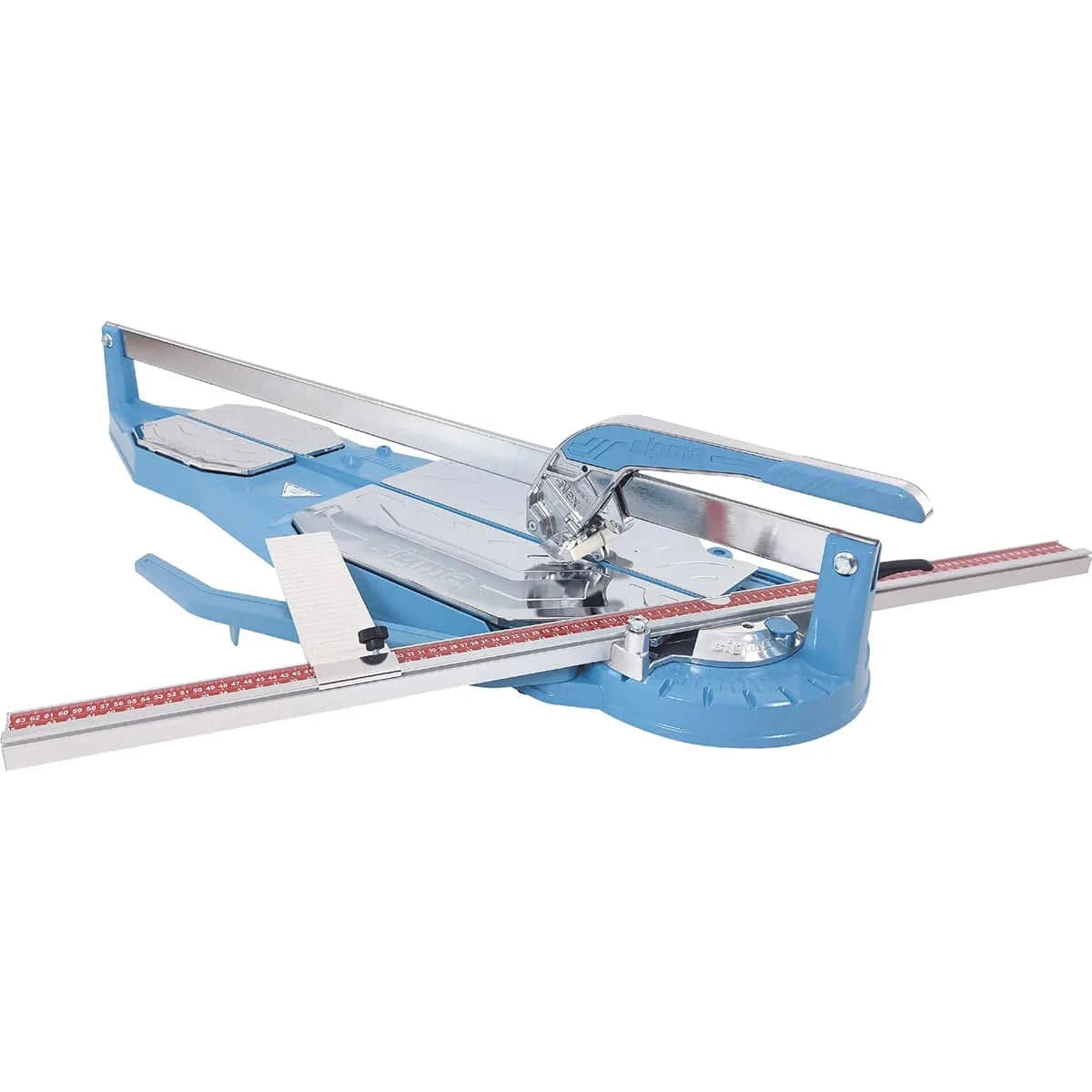

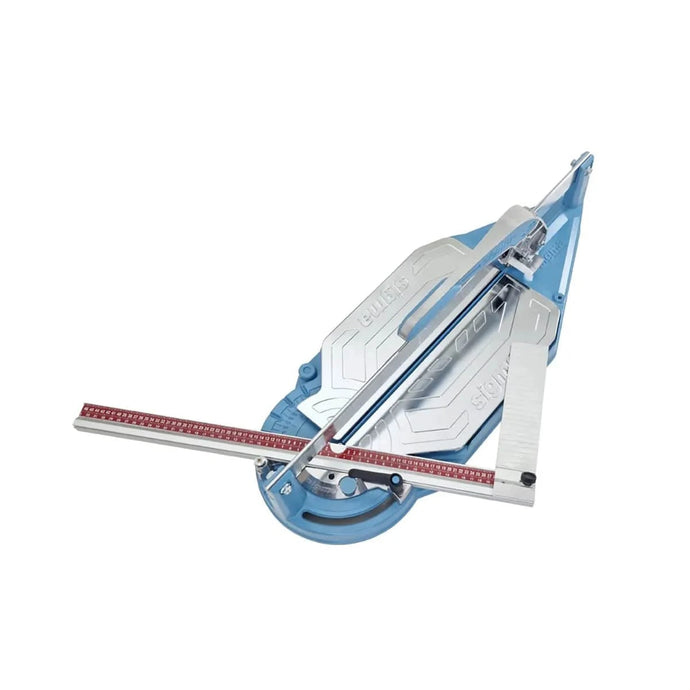

Sigma Series 4 NEX Pushing Incision Tile Cutter | 24.4"

Sigma Series 4 NEX Pushing Incision Tile Cutter

The new Sigma Series 4 supersedes the existing Series 3 Max tile cutter with new features and benefits. Pushing incision, easy and deep with minimum effort, perfect for rough, thick, and large tiles.

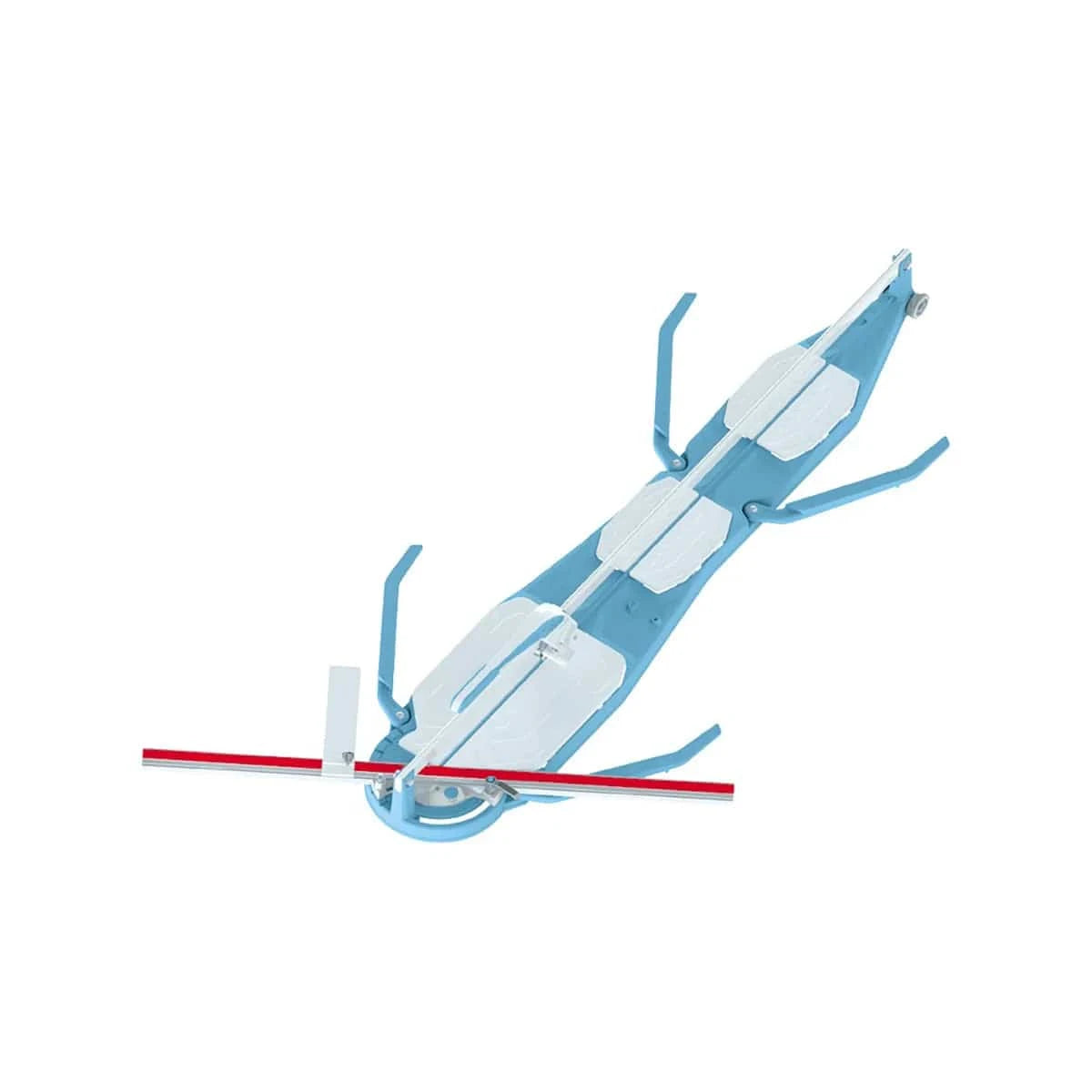

4FN Requires Freight Shipping

Features

• Please note that the 4BN 24.4" model does not include supporting wings
• Ergonomic handle specific for pushing incision
• The 16 mm diameter scoring wheel is always clearly visible on the operator side
• Equipped with double suspension for the cushioned scoring of structured tiles.
• The scoring wheel rotates on a roller bearing, guided laterally by an anti-friction metal shell inserted in a CNC milled holder, to avoid friction and lateral clearance
• Cuts up to 3/4" (19 mm) of material
• 120 mm wide splitting foot with interchangeable anti-mark protection
• The sliding carriage is clearance-free, thanks to 3 double-row ball bearings that guarantee precision over time without the need for maintenance
• An automatic system that keeps the handle raised facilitates the insertion of the tile
• Automatic steel compensator for adjusting the slide preload on the rail
• For the splitting phase, lift the handle to allow automatic rotation of the foot
• The front protective rubber pad absorbs the impact during the incision in order not to damage the base
• Guide bar that can pivot up to 45 degrees in both directions
