32" QuickDrain Showerline Drain Body
The QuickDrain ShowerLine linear shower drains provide a flexible option for both new and retrofit applications.
Features
- Its internally sloped trough ensures that no stagnant water sits in the trough at any given moment and eliminates hard water buildup
- Can adjust the length of the drain body with the use of trough extensions (5" for each side, 10" total) to accommodate drain sizes from 24" - 72"
- The drain cover's height can be adjusted using spacers for finish material thicknesses ranging from 3/8" to 3/4"
- Compatible with topical sheet waterproofing (QTS, Kerdi, Noble TS), topical liquid waterproofing (AquaDefense, RedGard, Hydro Ban, Ardex 8+9), hot mop, PVC vinyl liner, rubber liner, and chlorinated polyethylene (CPE)
- The drain capacity for a 2" outlet is 12 GPM in a shower pan with a curb and 5 GPM in a shower pan without a curb at the entry
- The flow rates for 1.5" outlets are 9 and 3.5 GPM, respectively
- Drain cover required

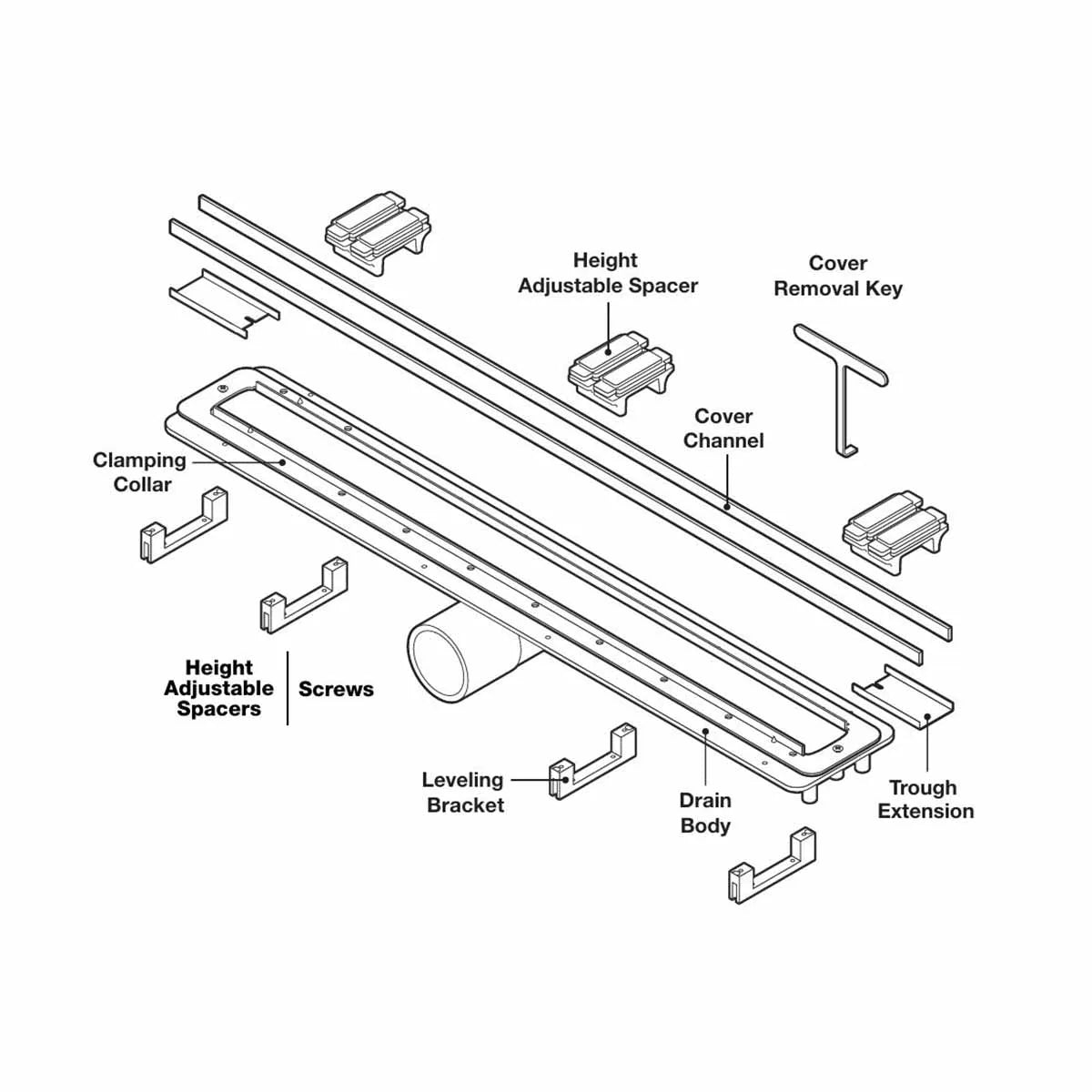

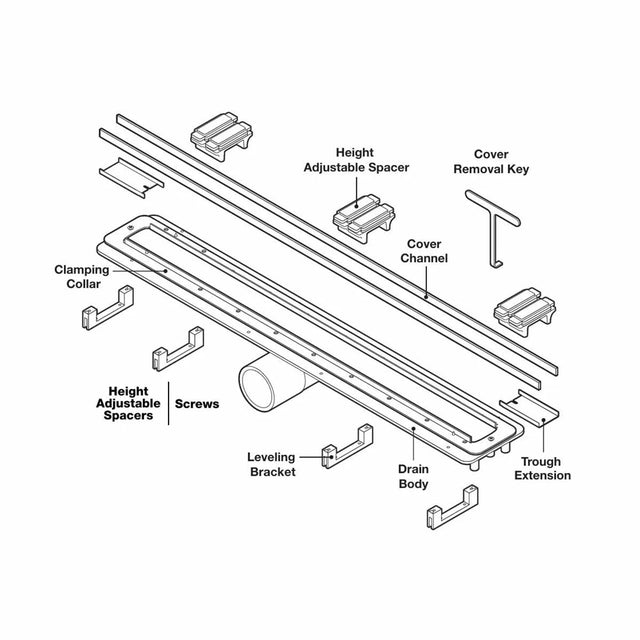

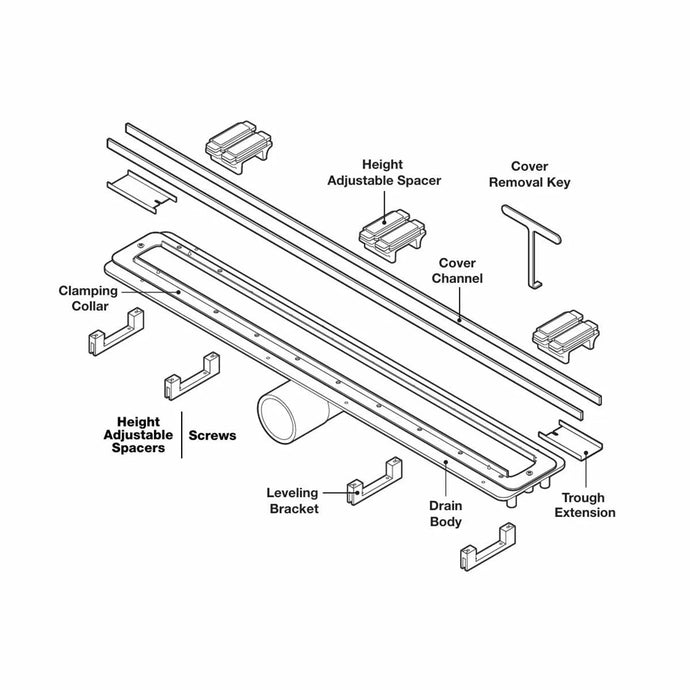

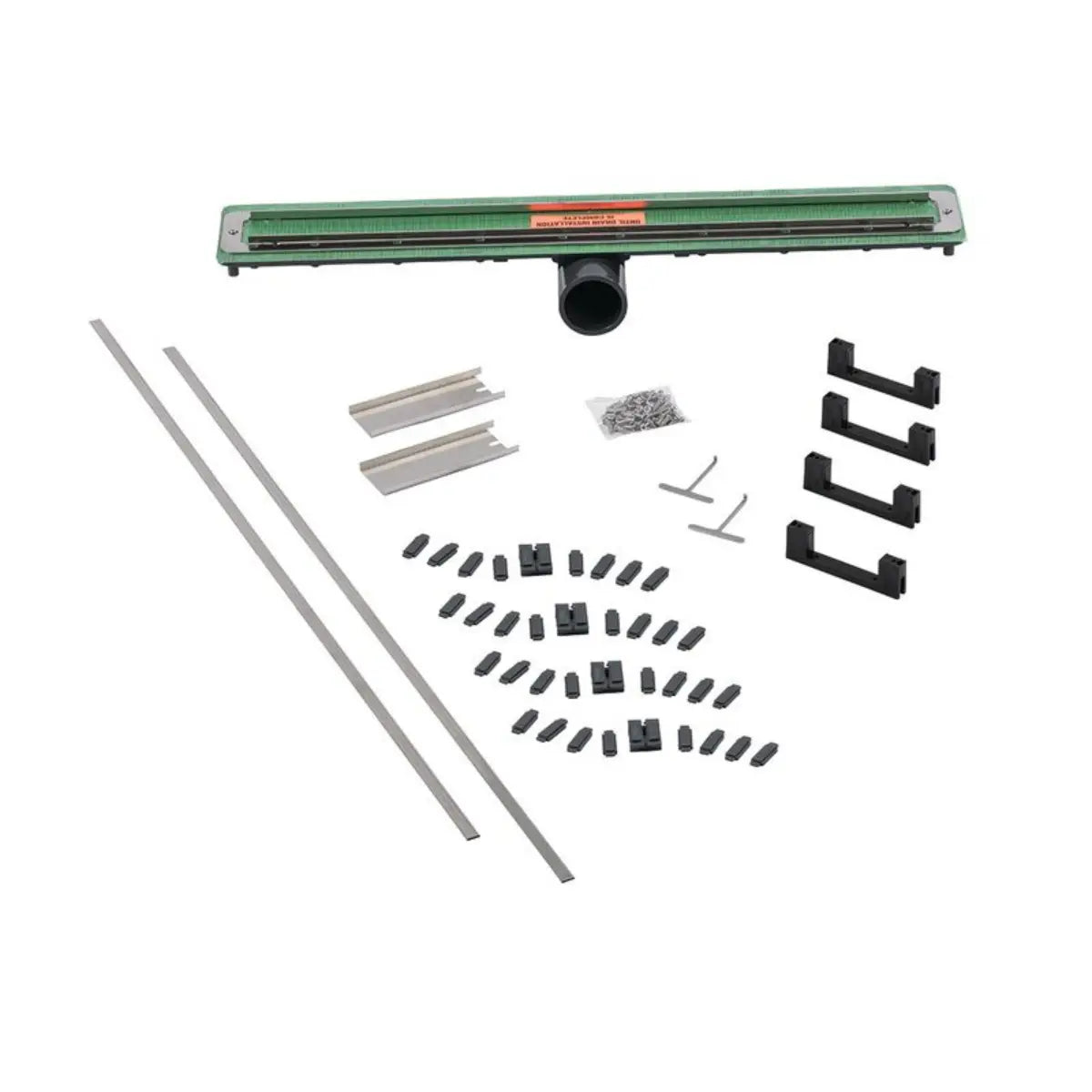

Includes
- Drain body (1), Leveling Brackets (4), Height Adjustable Spacers (4)
- Clamping collar (1), Cover Channel (2), Trough Extension (2), Screws (26)
- Cover Removal Key (2)
