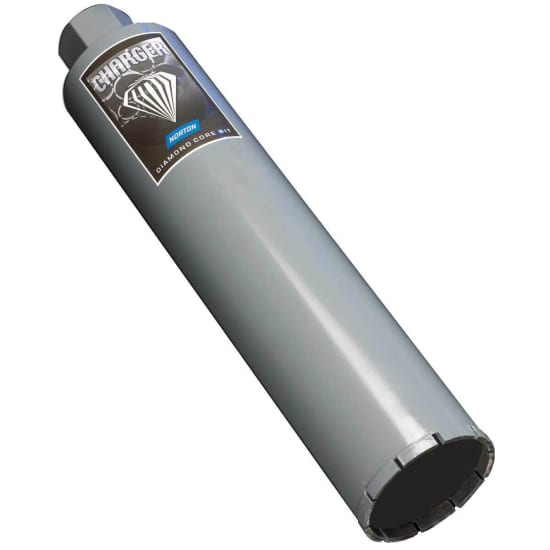

Norton Charger Wet Core Bits for Reinforced Concrete
Laser welded segments for faster penetration in medium aggregate with reinforcement and maximum utilization of segment life.
- For medium aggregate with steel reinforcement
- Will drill through reinforced concrete, hard bricks, limestone, terrazzo and other hard materials
- Maximum utilization of segment life
- Total segment height: .315"
- Bits from 1" to 1-1/2" diameter have 5/8"– 11 threads adapters
- Bits 1-3/4" diameter and larger have 1-1/4"– 7 threads adapters
- All bits are 16" long to produce a 13" core
- Wet cutting, laser welded
| Norton Charger Wet Core Bit Specifications |
| Model No. | Size in Inches (mm) | RPM |
| CGBIT0100 | 1" (25 mm) | 4,000 |
| CGBIT0125 | 1-1/4" (32 mm) | 3,000 |
| CGBIT0150 | 1-1/2" (38 mm) | 3,000 |
| CGBIT0175 | 1-3/4" (44 mm) | 2,000 |
| CGBIT0200 | 2" (51 mm) | 2,000 |
| CGBIT0225 | 2-1/4" (57 mm) | 1,300 |
| CGBIT0250 | 2-1/2" (64 mm) | 1,300 |
| CGBIT0300 | 3" (76 mm) | 1,300 |
| CGBIT0350 | 3-1/2" (89 mm) | 1,000 |
| CGBIT0400 | 4" (102 mm) | 1,000 |
| CGBIT0425 | 4-1/4" (108 mm) | 800 |
| CGBIT0450 | 4-1/2" (114 mm) | 800 |
| CGBIT0500 | 5" (127 mm) | 800 |
| CGBIT0600 | 6" (152 mm) | 665 |
| CGBIT0700 | 7" (178 mm) | 600 |
| CGBIT0800 | 8" (203 mm) | 500 |
| CGBIT1000 | 10" (254 mm) | 400 |
| CGBIT1200 | 12" (305 mm) | 330 |
| CGBIT1400 | 14" (356 mm) | 285 |
