Crown 16SH Hydraulic Mortar Mixers

(0) No Reviews yet
Crown Construction Equipment
$9,410.71 to $10,184.52
This item requires a commercial addressFree shipping

Product Details

Product Details

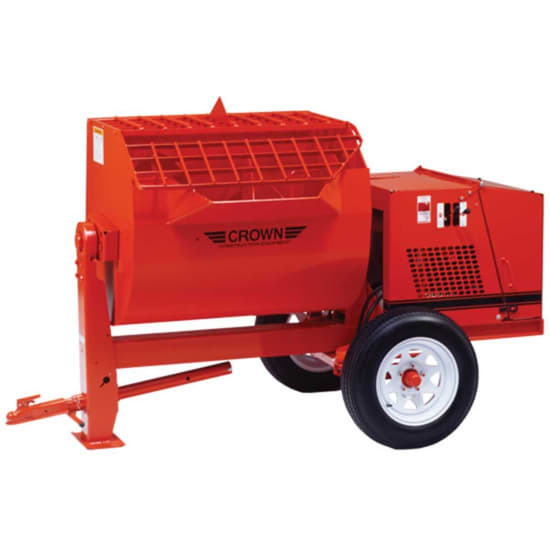

Crown 16SH Hydraulic Towable Mortar Mixer


  • Honda GX390 - 11.7 hp gas motor
  • 7 gauge steel for longer drum life
  • 2" solid steel paddle shaft
  • Ductile iron paddle are stronger than welded steel, making this mixer the industry's most durable!
  • Crowns exclusive Shear Pin Protection system shields the gear reducer and engine from potential damage should an engaged mixer be impeded by a shovel or other foreign object
  • Crown's self-latching drum lock is knee operated, freeing both hands for optional dumping control
  • Extra-Large B78x13 tires for smooth towing to your job
  • 4 to 5 bags capacity, 16 cubic Ft
  • Highway tow able comes with high speed taper roller bearings, and heavy duty axles for years of trouble-free towing
  • High Strength Frame newly designed frame provides improved durability and stronger support in the areas where you need it
  • The raised frame construction allows for convenient dumping for a wheel-barrow
  • Charging Height 58"
  • 2 pieces safety grill is stronger, safer and easier to use than a one piece grill and will not damage the drum
  • Lifetime Warranty, All Crown mixers feature a lifetime warranty on the drum bearing and seals
  • Heavy-duty one-piece cast-iron ring gear for longer life
  • Spiral blade mixing standard on 16SH Hydraulic mixers
  • Optional lighting kit sold separately here
  • Free shipping from Crown warehouse
  • Wheels are not installed prior to delivery; Wheel assembly is required on this unit prior to use

What's Included?

  • Crown 16SH Hydraulic Mortar Mixer
  • Includes a 2" Ball Hitch or a Pintle Hitch (Chose Option During Checkout)
  • Safety Chains
  • Operator's manual

Crown 16S Hydraulic Mortar Mixer Specifications
Drum Capacity16 cu ft
Bag Capacity4-5 bags (88 lbs. pre-mix)
Max RPM30
Dimensions98 x 53 x 58 in
Weight1355 lbs
Questions & Answers
1 questions

Does the Crown 16SH Hydraulic Mortar Mixer come with the spiral blade installed?

Yes the Crown 16SH Hydraulic Mortar Mixer does come standard with the spiral blade installed.
