213280050SA CS Unitec 12" Pneumatic Wet Core Drill And Stand

SKU: 213280050SA
Manufacturer: CS Unitec
MPN: 213280050SA
$4250.00

New

$4250.00

New

Details

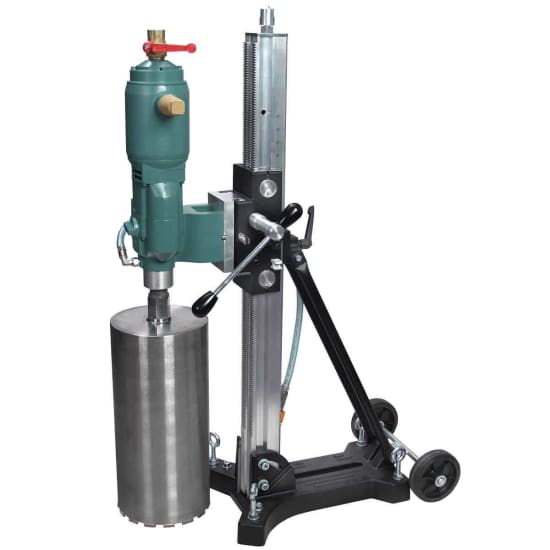

CS Unitec 12" Pneumatic Core Drill and Anchor Stand

Ideal for drilling holes in walls, floors, ceilings, refractory brick and for all concrete anchoring systems.


Features

  • Mechanical Safety Slip Clutch protects in case of jamming
  • 3-Speed Mechanical Gear Box with heat-treated gears
  • Hand-crank can be mounted on either side of the drill stand
  • The stand angle is adjustable up to 45˚
  • 360˚ Rotatable Side Handle
  • Centering Aid P/N 2 1315 6800
  • Can be used with drill rig to keep stationary

What's Included?

  • CS Unitec 12" Pneumatic Wet Core Drill. 3 Speed, 3.8 hp. With Stand
  • Built-in Water Swivel
  • 1-1/4" x 7 UNC Spindle
  • 5/8" x 11 UNC Adapter
  • Operator's manual

CS Unitec Pneumatic Wet Core Drill With Stand Specifications
MotorPneumatic - 3 Speed Gear Box
with Mechanical Safety Slip Clutch
Power3.8 hp (2.8 kW)
Bit Capacity12 inch
RPM300/700/1,350 RPM
Air Consumption123 CFM
Air Pressure90 PSI
Air Consumption3/4 in. NPT
Bit Connection1-1/4 in.-7 thread
5/8 in.-11 thread with adapter
Weight66 lbs
