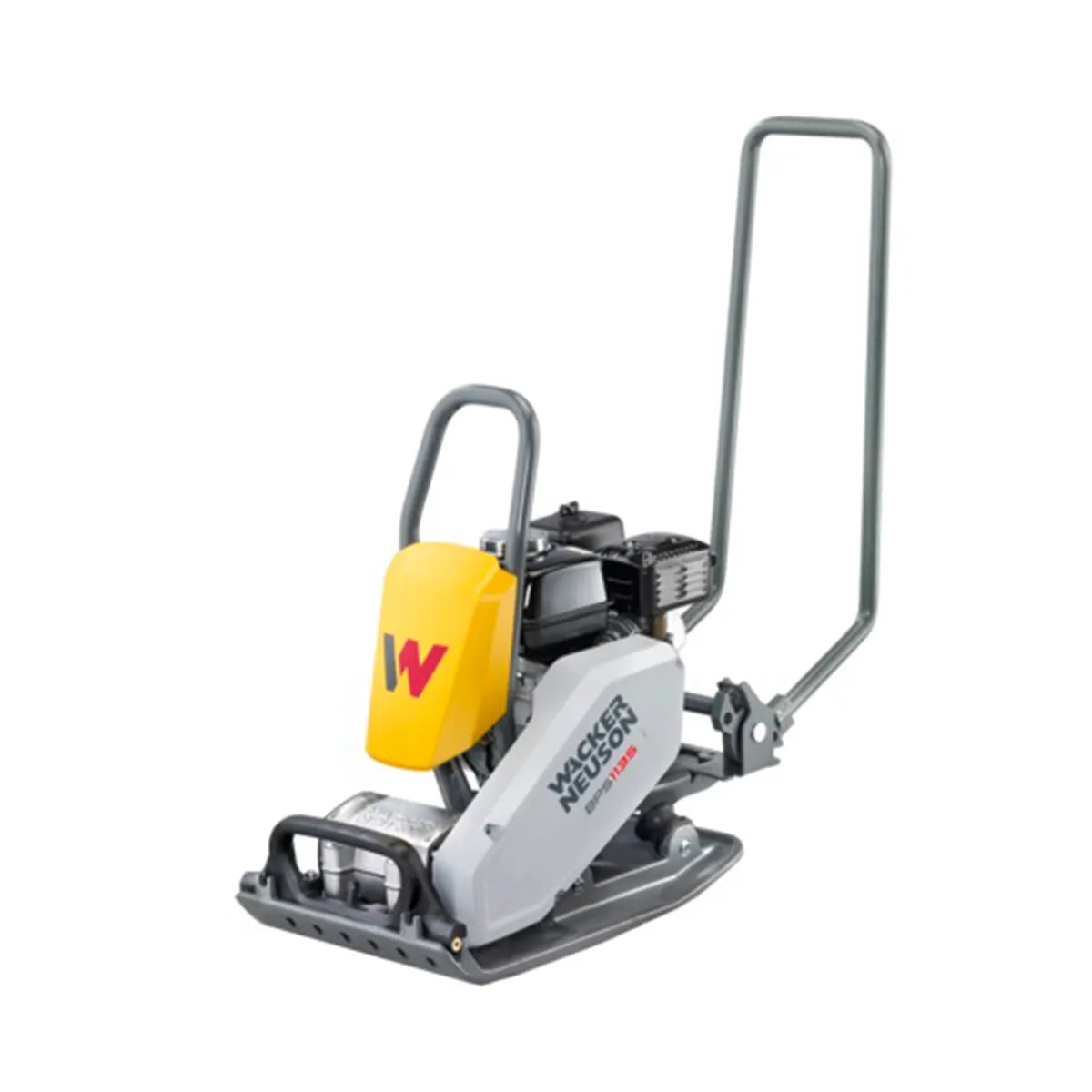

Wacker Neuson BPS1135A Vibratory Plate Compactor

Wacker BPS1135A Plate Compactor

Features

• Single direction vibratory plate compaction
• For soil and asphalt compaction
• Designed for compaction in confined areas of granular soil in narrow trenches
• Ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction
• Special contoured running surfaces and rounded edges provide maximum performance and maneuverability
• Low hand-arm vibration of less than 5 m/s², which enables long, comfortable working conditions
• Newly designed “low-vibration” guide handle greatly improves operator comfort and minimizes operator fatigue
• Heavy-duty shock mounts on engine console dampen vibrations thereby reducing wear on the components
• The BPS series is equipped with an extremely sturdy fan belt and has bearings with lifetime lubrication, making it maintenance-free
• 3.5 HP Honda gas engine
• A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable
• Optional wheel set and paving pad offer additional applications (sold separately)

Specifications

Wacker BPS1135A Plate Compactor Specifications
Length x width x height	36.6 L x 13.8 W x 26.1 H inches
Ground Clearance	26.1 in
Size of base plate (L x W)	20.5 x 14 in
Operating weight	134.5 lbs | 61 kg
Compaction rate	5,900 ft2/h
Forward speed (soil)	85 ft/min
Gradeability	up to 36.4%
Vibration frequency	98 Hz | 5,880 vpm
Max. centrifugal force	2,473 lb
Engine Type	Honda Gas Air-cooled, 4 stroke
Sound Level LpA	93 dB(A)
Area capacity	5.877,1 ft2/h
Fuel tank capacity	0.7 US Gal
