Wood Adhesives 6394 Diamax Cyclone Continuous Rim Blades
SKU: 6394
Manufacturer: Diamax
$19.25 to $49.75
New
Details

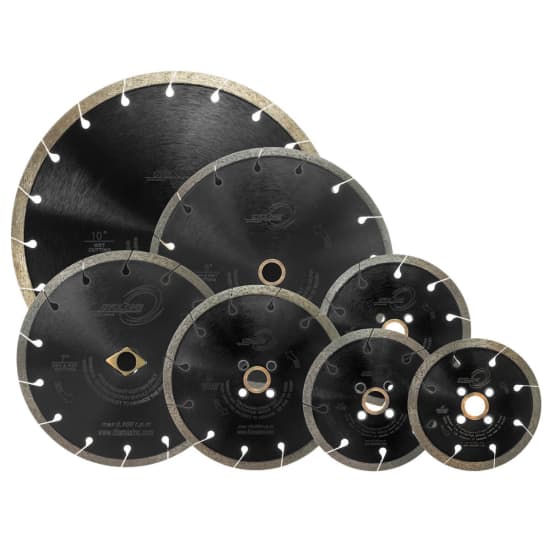

Diamax Cyclone Continuous Rim Blades
Features
- Most versatile blade that cuts granite, marble, porcelain, and ceramic tile
- Also used widely in counter top fabrication for granite, engineered stone and marble
- Ideal for cleaning seams and preparing material for miter joints
- Slotted for more aggressive cutting with minimal chipping (Except 10″)
- For use on angle grinders, hand saws and tile saws
- These blades are designed for wet or dry cutting
| Diamond Blade Specifications | |||||||
| Model | CSR040 | CSR045 | CSR050 | CSR060 | CSR070 | CSR080 | CSR100 |
| Blade Size | 4" | 4-1/2" | 5" | 6" | 7" | 8" | 10" |
| Arbor | 5/8″ – 7/8″ – 20 mm | 7/8″ – 5/8″ – 20 mm | 7/8″ – 5/8″ – 20 mm | 7/8″ – 5/8″ – 20 mm | 5/8″ – DKO | 7/8″ – 5/8″ – 20 mm | 1″ – 5/8″ – 7/8″ |
| RPM | 15,300 | 13,200 | 12,200 | 10,000 | 8,600 | 7,500 | 6,100 |
| Material | Performance |
| Ceramic | Good |
| Porcelain | Good |
| Marble | Good |
| Granite | Excellent |
| Hard Granite | Good |
| Glass | Not Recommended |
