CS Unitec Guide Bar for Concrete Chain Saws

(0) No Reviews yet
CS Unitec
$225.61 to $333.40

Product Details

Product Details

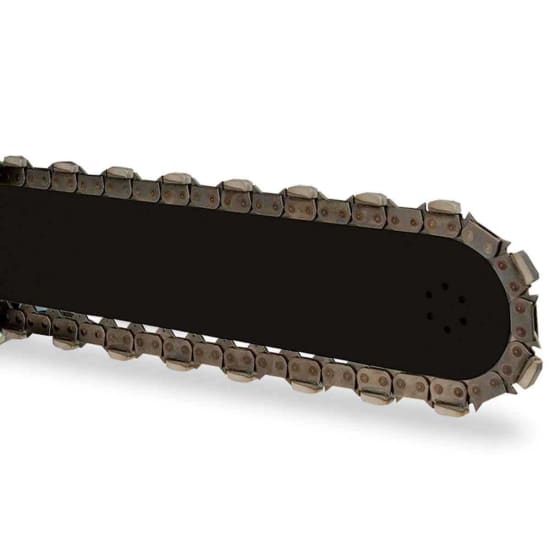

CS Unitec Guide Bars for Concrete Chain Saws


  • Guide Bars with internal water feed
  • 10" chain has 25 segments for 10" max. cutting depth, 9" square corners
  • 15" chain has 29 segments for 15" max. cutting depth, 14" square corners
  • 20" chain has 34 segments for 20" max. cutting depth, 19" square corners
  • Diamond chains sold separately

Cutting tips to improve chain life

  • Use minimum of 20 PSI water pressure
  • Always cut at full throttle slowly plunge into wall and push hard enough to cause the RPMs to drop by 25% to 30%
  • Always apply steady feed force
  • Slowly rock the bar and chain into the cut using Wallwalker as a pry point
  • Reduce arm motions hold saw close to body, using legs and body to apply feed force; always cut with saw between shoulders and knees, preferably at waist height
  • If saw begins to drift off the intended cut line, pull out and restart cut
