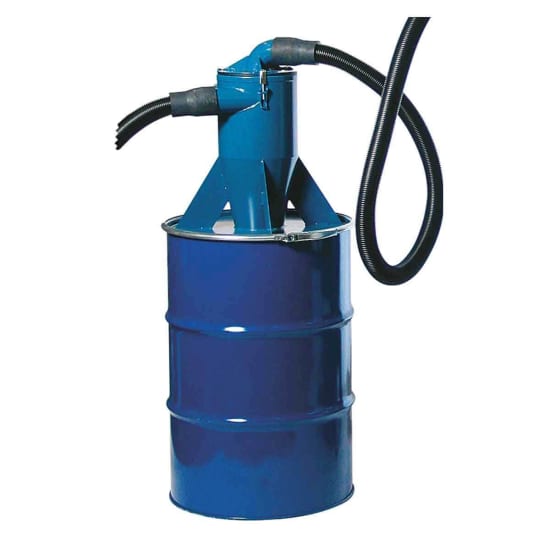

DustControl Cyclone Separator Cover

DustControl Cyclone Separator Cover - Cover Only

Features

• When large amounts of dust are produced, a DC 5800 can be complemented with a cyclone separator cover mounted directly onto a standard 200 litre/55 gallon drum
• Reduce the loading on the ducting system and minimizing the risk of blockage
• Cyclone separator cover mounted directly onto a standard 200 liters/55 gallon drum
• The drum is not supplied

Technical Data

• Height: 580 mm
• Cyclone diameter: Ø 250 mm
• Barrel diameter Ø 620
• Weight: 10 kg
• Inlet/Outlet: Ø 76 mm
