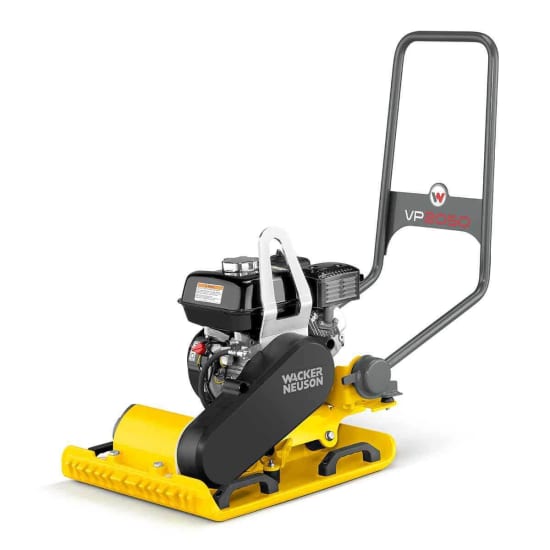

Wacker Neuson VP 2050A 23" x 19.5" Vibratory Soil Plate, 500009087


  • Designed for compaction in confined areas of granular soil in narrow trenches.
  • Ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction.
Vibroplate Plate Features
  • Special contoured running surfaces and rounded edges provide maximum performance and maneuverability.
  • Completely enclosed belt protected by a lightweight belt guard for reduced wear and minimal service.
  • Newly designed “low-vibration” guide handle greatly improves operator comfort and minimizes operator fatigue.
  • Heavy-duty shock mounts on engine console dampen vibrations thereby reducing wear on the components.
  • Exciter bearing design requires minimal maintenance for improved productivity.
  • Single direction plate compactor gas powered
  • Large solid lifting eye for safe lifting
  • Handles on the base of the equipment allow easy transportation.
Length x width x height (handle in working position) 1.020 x 500 x 885 mm 40 x 19.5 x 35 in
Lowest working height 680 mm 27 in
Size of base plate (L x W) 590 x 500 mm 23 x 19.5 in
Operating weight 83 kg 103 lb
Compacted area (soil) up to 615 m2/h up to 7,880 ft2/h
Forward speed (soil) up to 20 m/min up to 88 ft/min
Gradeability up to 30 % up to 30 %
Vibration frequency 97 Hz 5,800 vpm
Max. centrifugal force 15 kN 3,375 lb
Engine Typeair-cooled, 4 cycle single cylinder, gasoline engine
Displacement 163 cm3 9.9 in3
Max. power output 4,1 kW 5.5 hp
at 3.900 1/min 3,900 rpm
Rated power output4,1 kW 5.0 hp
at 3.600 1/min 3,600 rpm
Fuel tank capacity4,1 l 3.9 US qt
Fuel consumption 1,8 l/h 2.0 US qt/h
Power TrainPower transmission from engine via centrifugal clutch and V-belt onto exciter which transmits centrifugal force onto baseplate.
