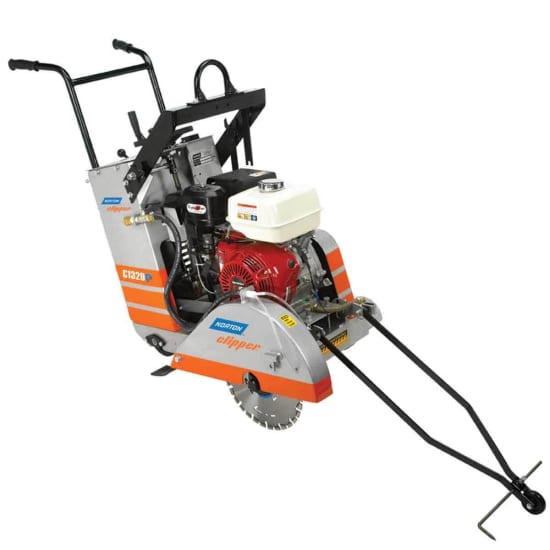

C1320P Norton Clipper 20" Walk Behind Push Saw

Small to medium contractor work demands performance with an economical solution. The C1320P brings the contractor the ideal saw with a heavy-duty box frame that resists bending and supported with the high-performing Honda 13 HP engine. Heavy frame also provides a straighter cut. Changing or adjusting belts is simple with the single screw tensioner. The C1320P is in a class by itself.

General Features

  • Spindle-Saver blade flanges allows blade to sit on inner flange instead of shaft for replacement of flange only instead of complete shaft.
  • Four V-Belts transferring maximum power to the blade shaft.
  • Reinforced frame and axle strongest in its class.
  • Four stage Honda cyclone air filter.
  • Honda GX390, Single Cylinder 4 Cycle.
  • Screw feed blade depth control.
  • Maximum Saw Length (Working): 114" (2,896 mm)
  • Maximum Pointer Length: 40" (1,016 mm)
  • Frame Width (mm) 17" (432 mm)
  • Front (Outside to Outside Wheel Width) 14-3/16" (360 mm)
  • Rear (Outside to Outside Wheel Width) 15-1/4" (388 mm)
  • Blade to Wall 2-9/16" (65 mm)
  • Wheel Base Length 16-1/6" (407 mm)

Norton Clipper C1320P Walk Behind Push Saw Specifications
Power (Gas)13 hp / 9.5 kW
EngineHonda GX390
StarterManual
Blade Capacity20 inch
Blade Shaft RPM2,520 RPM
Arbor1 inch
Depth of Cut7-5/8 inch
Fuel Capacity1.79 gal (6.5 L)
Dimensions56 in. x 26 in. x 40 in.
Weight310 lbs
